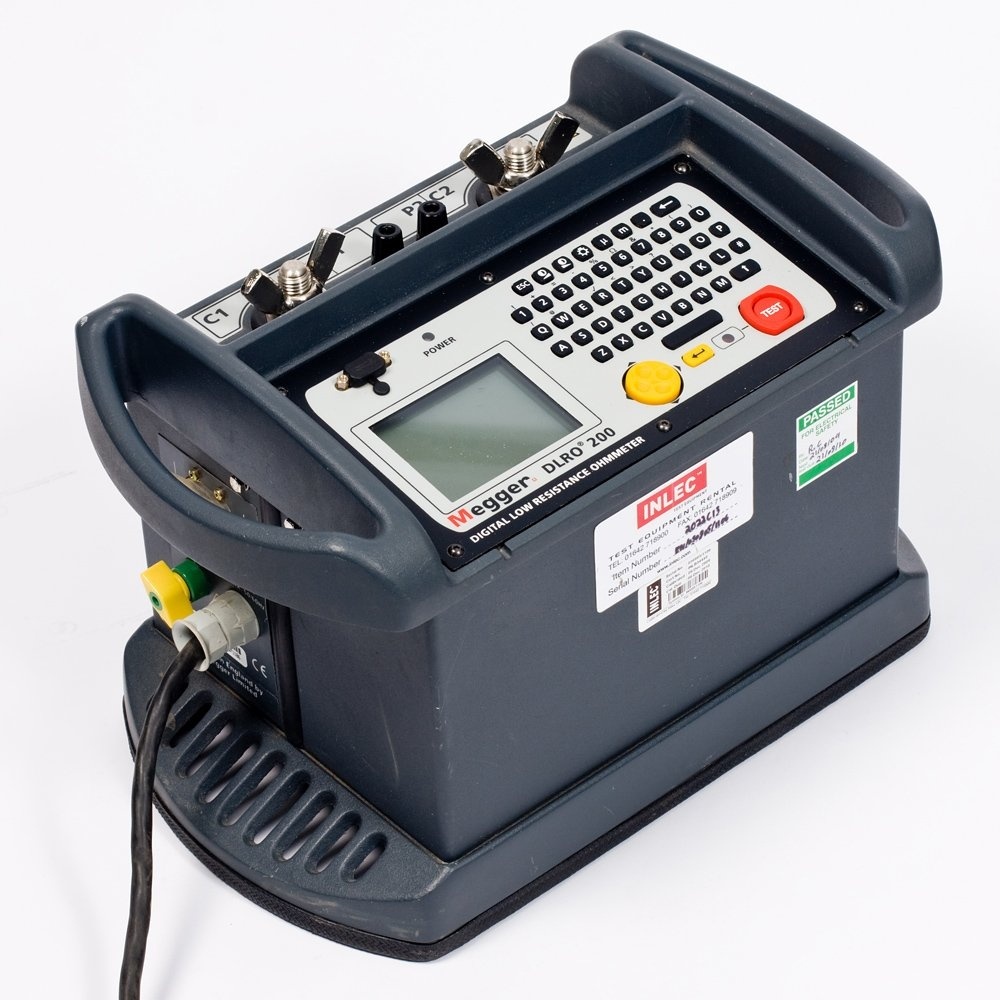

Micro-Ohmetru 200A Megger DLRO200

Cod: Megger DLRO200 6220-755




Brosura produs PDF, 0.5 Mb

Descriere

• Small and weighs less than 15kg
• Test currents from 10 A to 200 A d.c.
• 0.1 µO best resolution
• On board memory for up to 300 test results and notes
• RS232 port to download stored results or for real time output to a printer
• Supplied complete with 5m test leads and download software



Megger DLRO200 measures resistances between 0.1 µO and 1 O,
at high currents.

This versatile instrument can provide test currents from 10 amps up to 200 amps subject to the load resistance and supply voltage. A large LCD displays all all test parameters and measurement results.



Accesorii standard

DLRO200 High Current Digital Low Resistance

Ohmmeter (English QWERTY keyboard)

5 m (16.4 ft.) Lead set set comprising 2 x 50 mm2 current leads with clips and 2 potential leads with clips

Download Manager 6111-442

User Guide on CD-ROM 6172-763

RS232 download cable 25955-025

Quick Start Guide (English) 6172-782

Quick Start Guide (French) 6172-783Warranty card. 6170-618





VERSIONS WITHOUT TEST LEADS

Item (Qty) Order No.

DLRO200 High Current Digital Low Resistance Ohmmeter (English QWERTY keyboard) DLRO200-EN-NLS

DLRO200 High Current Digital Low Resistance Ohmmeter (French AZERTY keyboard) DLRO200-FR-NLS

DLRO200-115 High Current Digital Low Resistance Ohmmeter 115 V with additional output smoothing (English QWERTY keyboard) DLRO200-115-NLS



Included Accessories

Download Manager 6111-442

User Guide on CD-ROM 6172-763

RS232 download cable 25955-025

Quick Start Guide (English) 6172-782

Quick Start Guide (French) 6172-783

Warranty card. 6170-618
