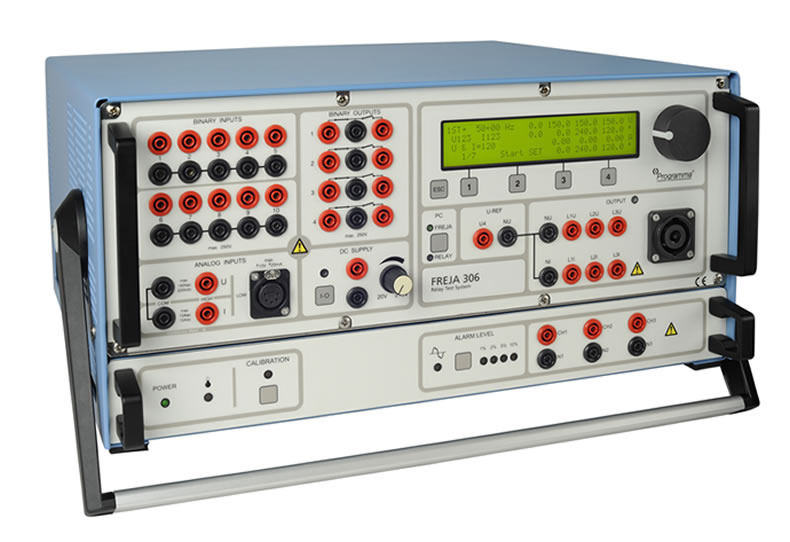

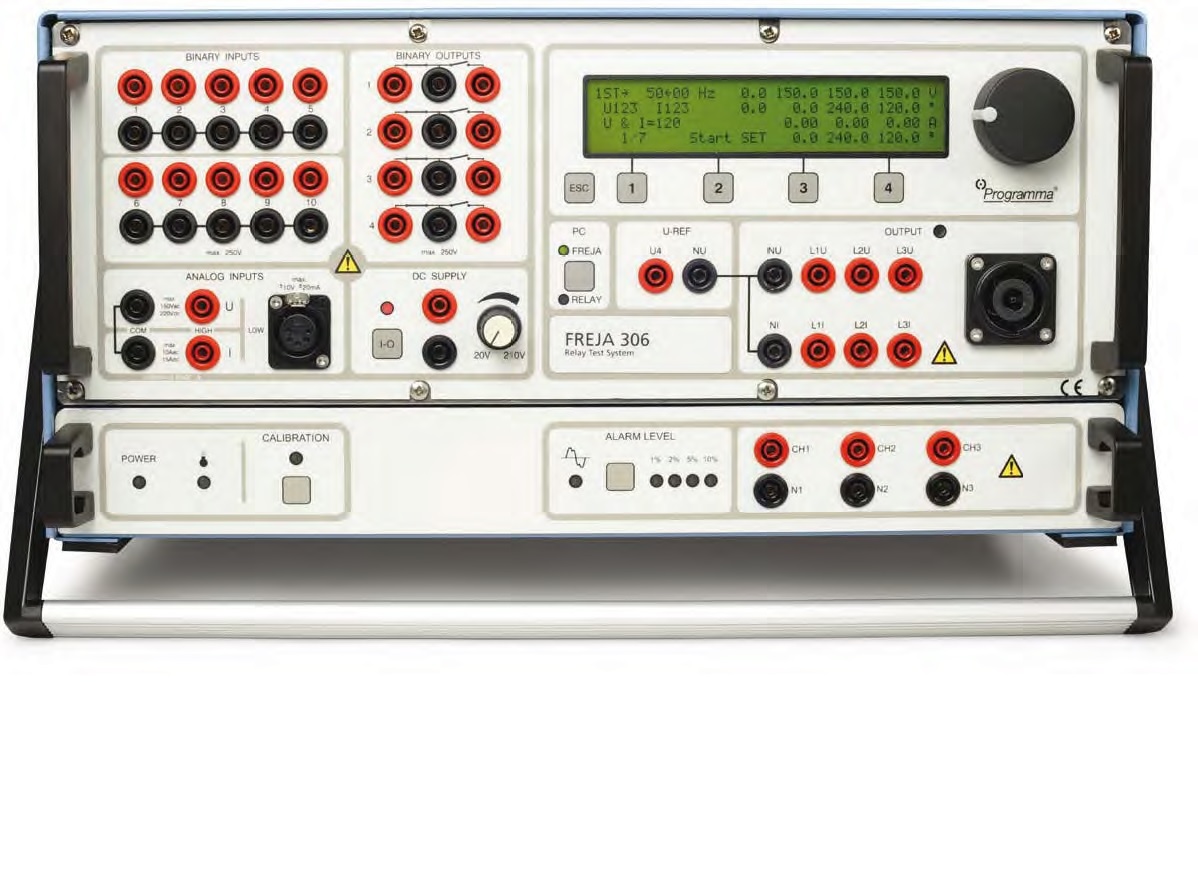

Trusa curent-tensiune pentru verificarea releelor de protectie Megger FREJA 306

Cod: Megger FREJA 306 Programma FREJA306 CF-29091




Brosura produs PDF, 0.83 Mb


Descriere

• current outputs, higher amps (3 x 15 A + 3 x 35 A), VA or compliance voltage.

• test differential relays with 6 currents, or virtually any single or 3-phase relay

• For secondary testing of protection relays
• Can be used stand-alone or with a PC
• Flexble, can test many relay types
• Lightweight and portable
• Greatest possible precision





FREJA 306 can be operated with or without a PC. After being put into the Local mode, FREJA 306 can be used stand-alone without a PC. FREJA 306 is an excellent choice when you want more current outputs, higher amps, VA or compliance voltage. Use it to test differential relays with 6 currents, or virtually any single or 3-phase relay.



Accesorii standard

FREJA 306

Complete with: FREJA Win, Two test lead sets, Hard

transport case CF-29091

Same as above but with soft transport case CF-29090



FREJA 306 basic unit CF-29001



FREJA 306, LLA Rogowski option

Complete with: FREJA Win, Two test lead sets, Hard

transport case CF-29095

Same as above but with soft transport case CF-29094



FREJA 306 Basic Unit, LLA Rogowski option CF-29004



Optiuni recomandate

Optional

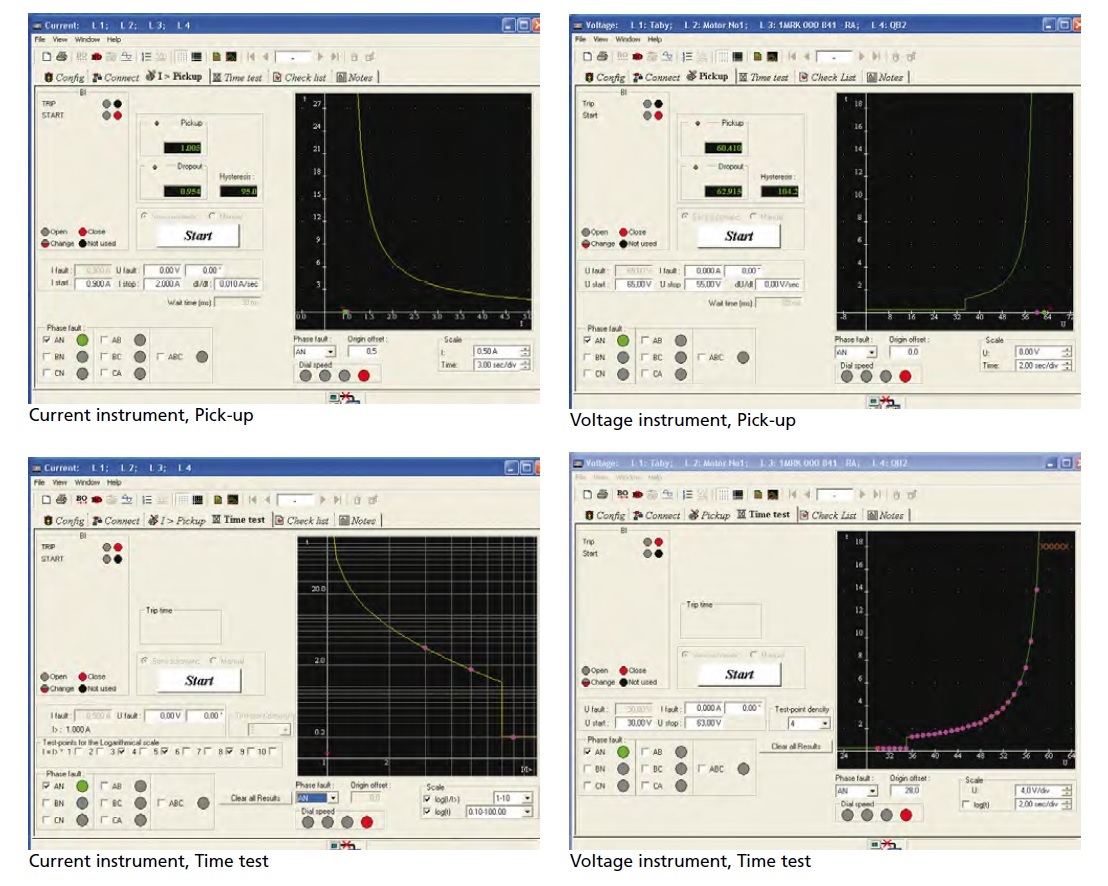

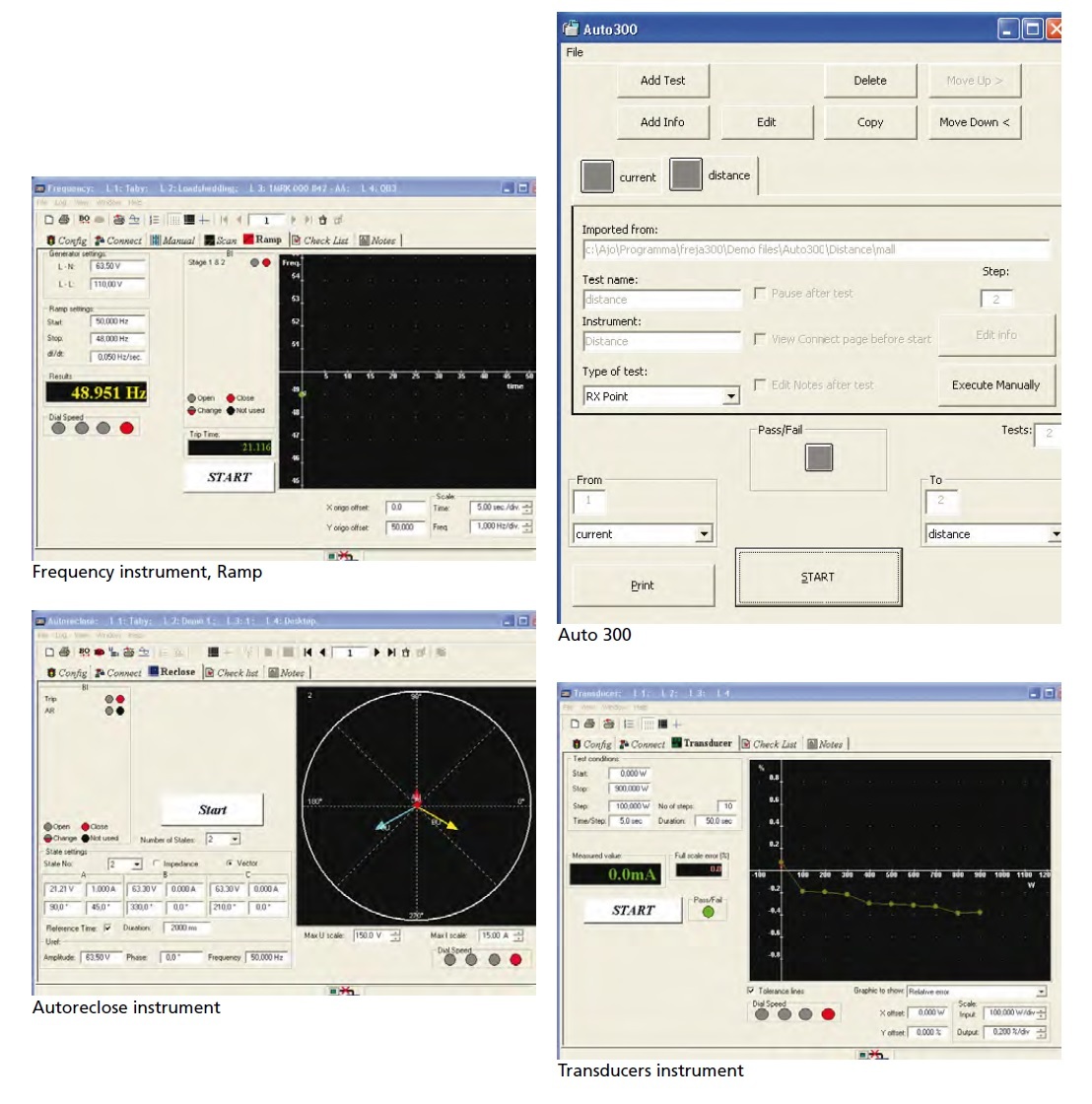

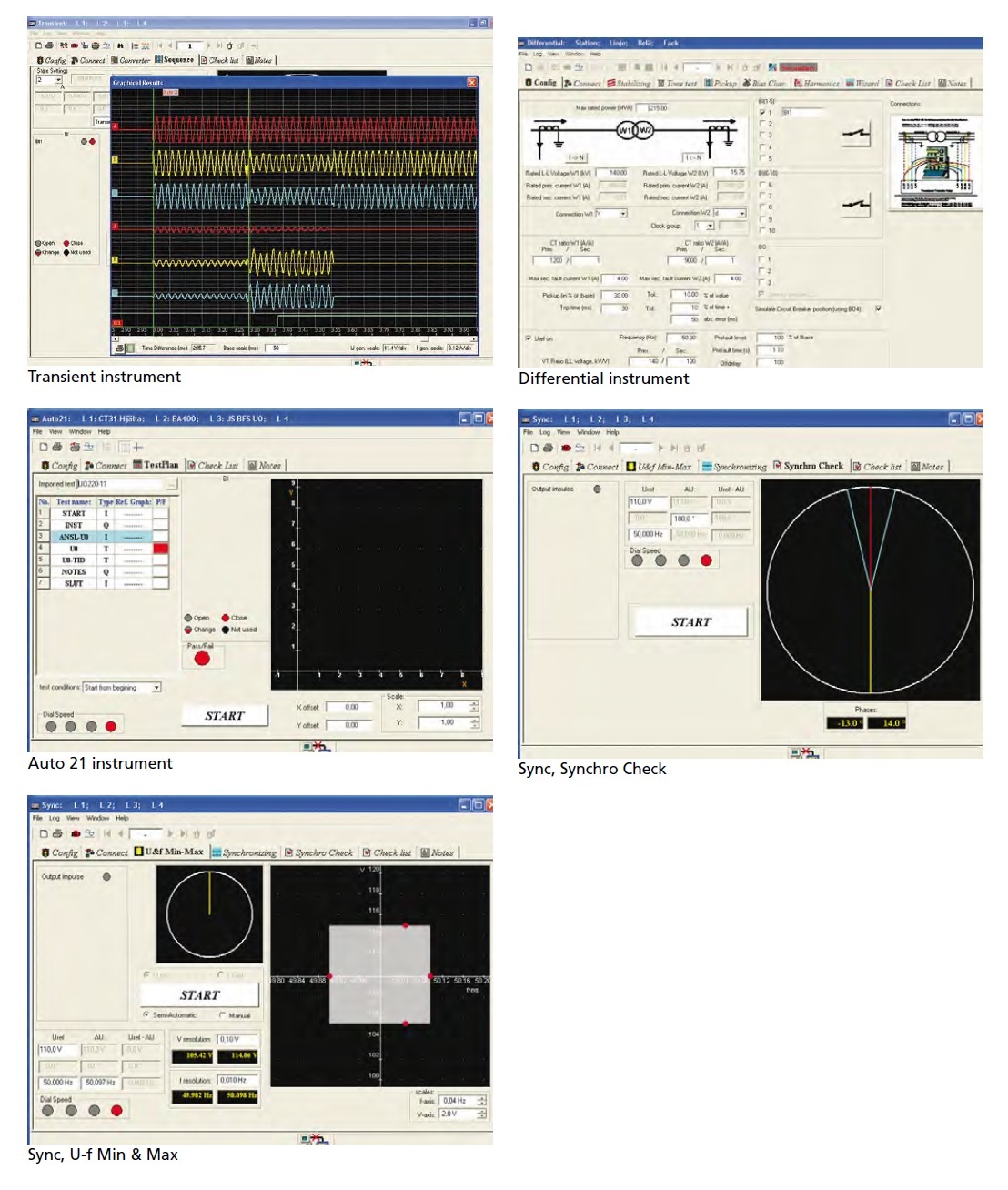

FREJA Win

Software CF-90090



Rebuild FREJA 300 to FREJA 306 CF-90090

FREJA Win upgrade CF-8282X



Optional accessories

FREJA Multi-cable

Shortens hookup time considerably. Consists of a

multi-pole connector that connects to FREJA’s three

voltage and three current outputs, and a number of

banana plugs that connect to the protection relay

that is to be tested. GA-00103



Test lead set

With touch-proof contacts.

2 x 0.25 m (0.8 ft) / 2.5 mm2

2 x 0.5 m (1.6 ft) / 2.5 mm2

8 x 2 m (6.5 ft) / 2.5 mm2

Weight: 0.8 kg (1.8 lbs).

Normally you need two sets. GA-00032



Calibration box CF-90100



GPS200 - MGTR

The GPS receiver GPS200 - MGTR makes it possible

to synchronize two or more FREJA to conduct endto-

end testing. End-to-end testing provides quick,

reliable results showing how two or more protection

relay systems interact. The unit comes with a 15 m

(50 ft) cable and an allweather antenna. Longer

cables can be ordered. CF-90150



Cable organizer

Velcro straps, 10 pcs. AA-00100



Floor stand FREJA 300/306

For working in standing position with FREJA GB-00300



IPS RELEX

IPS RELEX is a database for relay protection. For

more information please visit our web site or contact

customer service relay protection department
