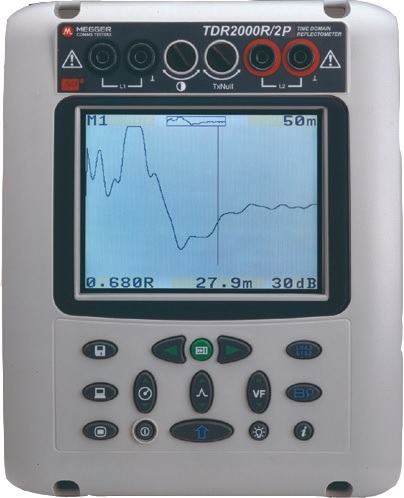

Ideal for engineers with little TDR experience, the TDR20000/2P can perform single or dual channel measurements on a wide range of metallic cables.

Either dead or Live cables to CATIII 300V Phase to earth or 415V phase to phase can be tested. The TDR2000/2P is supplied complete with pairs of 2metre long fused test leads, fitted with 30mm gape crocodile clips for easy connection to large diameter cables. No blocking filter is required.

Accesorii standard

Dual Channel cable fault locator TDR2000/2P

Included Accessories

Battery charger UK 6121-538

Battery charger European 6121-539

Dual fused test lead set (2 pairs) 1002-136

Test and carry pouch 6420-114

Serial data lead 25955-025

Carry strap for pouch 6220-611

Tracemaster software 6111-458

User Guide 6172-662
