Analizor intrerupatoare monofazate Megger EGIL

Cod: Megger EGIL BM-19090 BM-19093 BM-19095



Brosura produs PDF, 1.04 Mb


Descriere

• Suitable for testing timing and travel on all circuit breakers with single interrupter per phase
• Extremely easy-to-use and reliable
• Two separate timing channels for measurement of auxiliary contacts
• Analog measurement channels for travel transducers or general voltage/current measurements
• Static and dynamic resistance measurements along with the SDRM201 accessory



The Programma EGIL is an automatic timer and motion analyzer for medium- and high-voltage substation circuit breakers. It is intended for use on circuit breakers with one contact per phase. EGIL incorporates features commonly found on more complex test systems, but is designed to be smaller, simpler to use and less expensive than other similar test sets. It’s price makes it attractive to smaller utilities and it is an ideal supplementary product for maintenance departments at larger power companies and for testing contractors.



Accesorii standard

EGIL Basic unit BM-19090

Incl:

  • Time measurement cables GA-00160, GA-00170
  • Cable set for sequencer GA-00082
  • Transport case GD-00190



Egil with analog input channel and USB port BM-19093

Incl:

  • CABA Win BL-8206X
  • Time measurement cables GA-00160, GA-00170
  • Cable set for sequencer GA-00082
  • Transducer cable 1 m (3.2 ft) XLR-open GA-00041
  • Transducer cable 7.5 m (24.6 ft) XLR-XLR GA-00042
  • Transport case GD-00190



Egil with SDRM option and USB port BM-19095

Incl:

  • CABA Win BL-8206X
  • Time measurement cables GA-00160, GA-00170
  • Cable set for sequencer GA-00082
  • Transducer cable XLR-open 1 m (3.2 ft) GA-00041
  • Transducer cable XLR-XLR 7.5 m (24.6 ft) GA-00042
  • Transport case GD-00190



Upgrade

Upgrade of EGIL can be done, please contact your

nearest distributor for part number and price.



Optiuni recomandate

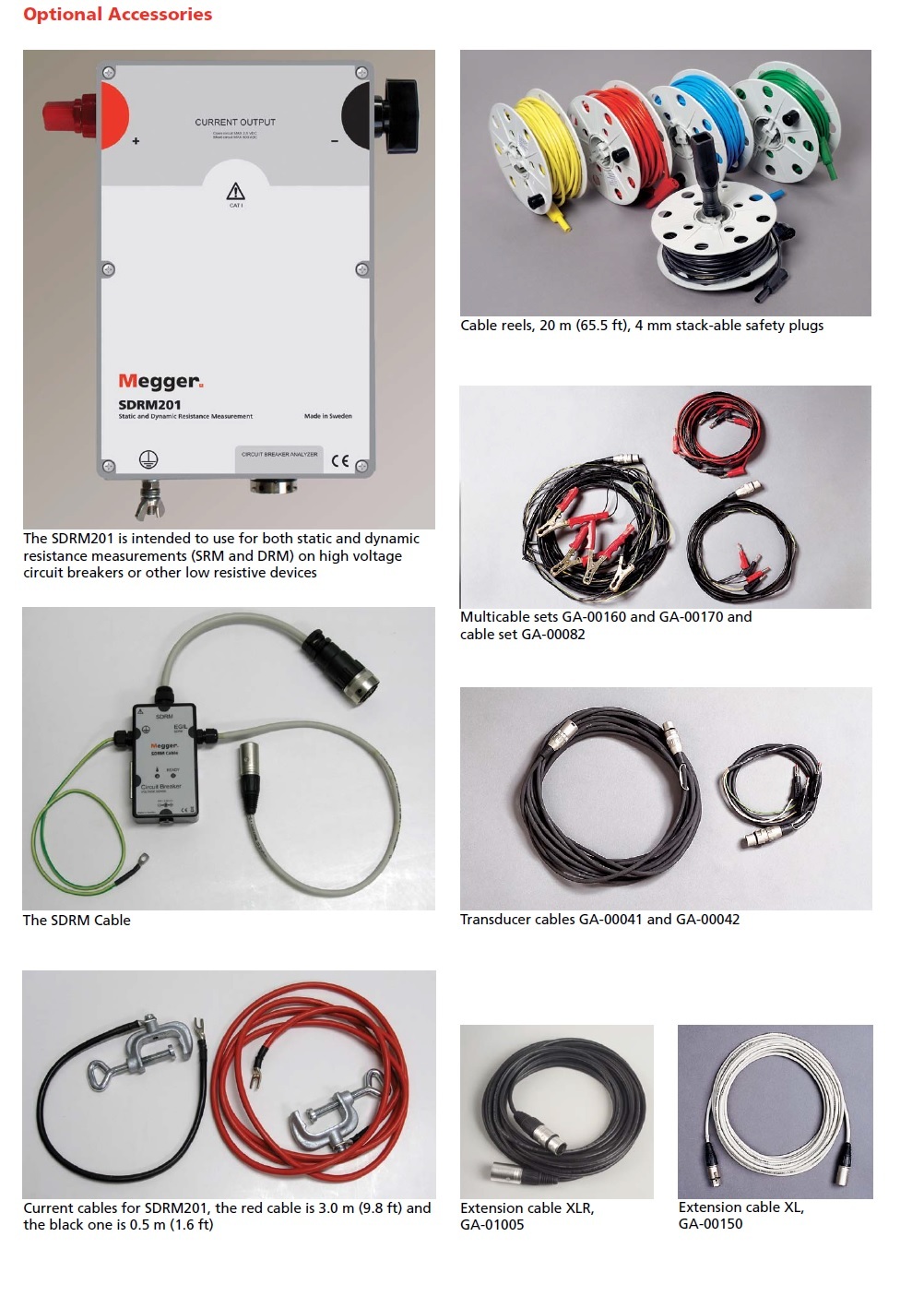

Optional accessories

CABA Win

Circuit breaker analysis software

Incl. USB cable BL-8206X



SDRM201 CG-90250

Extension cables for SDRM201

10 m (33 ft) extension GA-12810

7.5 m (24.6 ft) extension GA-12815



Transducers - Linear

TLH 500 XB-30020

LWG 225 XB-30117

TS 150 XB-30030

TS 25 XB-30033



Transducers - Rotary

Novotechnic IP6501 XB-31010

Flex coupling for IP6501 XB-39030



Transducer mounting kits

Universal kits

Rotary transducer mounting kit

For transducers XB-31010 and XB-39130 XB-51010

Universal transducer mounting kit for linear and rotary transducers XB-51020

 Ready-to-use-kits - Rotary Incl. transducer XB-31010, mounting kit XB-51010 XB-71010



Transducer mounting accessories

Universal support XB-39029

Switch magnetic base XB-39013



Cables

Cable reel

20 m (65.5 ft), 4 mm stackable safety plugs

Black GA-00840

Red GA-00842

Yellow GA-00844

Green GA-00845

Blue GA-00846



Cable sets

The cable sets consist of 8 cables with clamps and

4 mm stackable safety plugs

8 x 5 m, (16.4 ft) GA-00231

8 x 10 m, (32.8 ft) GA-00241

8 x 15 m, (49.2 ft) GA-00251



Extension cables, XLR female to male

For analog input, 10 m (32.8 ft) GA-01005

For time measurement of main contacts, 10 m (32.8 ft) GA-00150

Open analog cable

For customized analog transducer connection GA-01000

XLR to 4 mm safety plugs

For customized analog transducer connection GA-00040



Other

VD401

Voltage divider, ratio 400/1(for TM1600 and EGIL with analog channel)BL-90070

Thermopaper, 114 mm, 30 m GC-00030

Cable organizer, Hook and loop fastener, 10 pcs AA-00100
