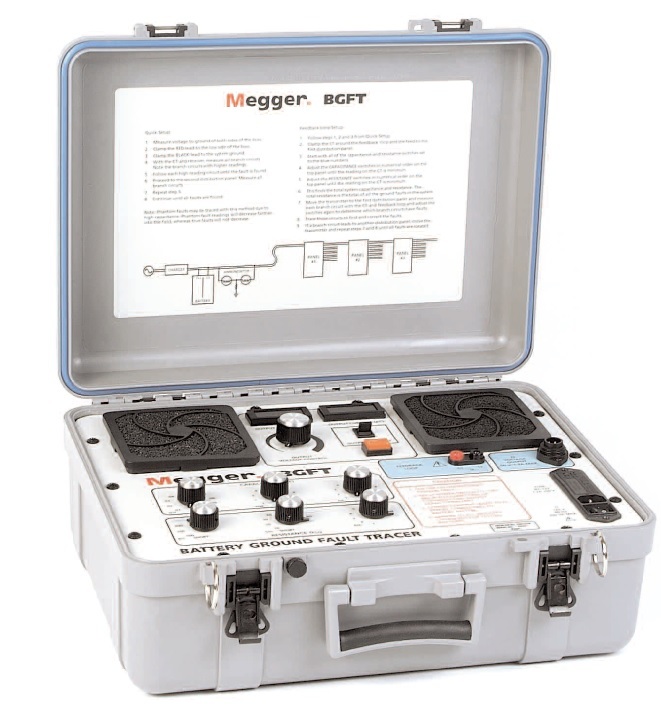

Locator scurgeri la pamant curenti DC in sisteme baterii Megger BGFT 246100B

Cod: Megger BGFT 246100B




Brosura produs PDF, 0.52 Mb

Descriere

• Ground faults in ungrounded dc battery systems easily located
• Operates in high electrical noise environment
• Simplifies fault tracing by identifying fault characteristic (resistive and capacitive) magnitudes



The Battery Ground-Fault Tracer is an economical, manually-balanced instrument that identifies, tracks and locates ground faults in ungrounded dc battery systems - on-line. It is particularly effective in a high electrical noise environments, as the strength of the test current can be adjusted.

The Battery Ground-Fault Tracer accelerates fault location by eliminating trial-and-error procedures and because faults can be located without going off-line. It is particularly useful in any industry where supply of power for operating measurement, communication and control equipment is critical.



Accesorii standard

Battery Ground Fault Tracer,120/240 V ac, 50/60 Hz, CE-marked 246100B

Included Accessories

Fused source leads, 20 ft (6 m) [1 pr] 29386-3

Current transformer, 2 in. (5 cm) with leads, 4 ft (1.2 mm) [1 pr] 29999-1

AC power cord, 6 ft (1.8 m) [1] 17032-7

Feedback cable, 40 ft (12 m) [1] 29998

Padded accessory bag [1] 29996

Battery, 9 volt [1] 1482-1

Operator’s manual [1] AVTM246100B



Optional Accessories

Mini-CT, 0.5 in. (12 mm) with 4.25 ft (1.3 m) lead 30595
