Cleste masura rezistenta impamantare Megger DET14C DET24C

Cod: Megger DET14C 1000-761 DET24C 1000-762




Brosura produs PDF, 0.18 Mb


Descriere

• Elliptical clamp shape improves access to earth cables and straps up to 50 mm
• Low maintenance flat jaw interface
• Measures ground resistance from 0.05 O to 1500 O
• Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
• CAT IV 600 V safety rating
• Backlit LCD display



The DET14C and DET24C represent a new generation of earth/ground clamp-on resistance testers. These instruments induce a test current into earth systems and measure ground resistance in multi ground installations without needing to disconnect the ground. They offer market leading access, advanced features, simple operation and CAT IV 600 V safety protection.

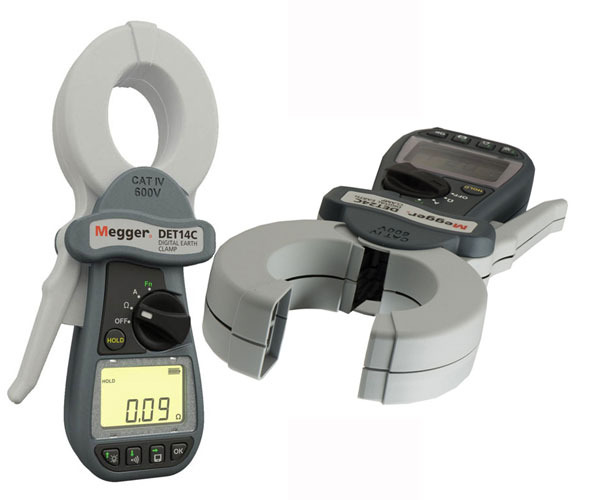

The elliptical shaped head design offers improved access to cables and earth straps in space constrained locations. The clamp head accommodates up to 37 mm diameter cable and 50 mm earth tapes making them suitable for use in power stations, substations, towers and many more facilities.



Accesorii standard

DET14C Digital earth test clamp-on meter 1000-761

DET24C Digital earth test clamp-on meter 1000-762

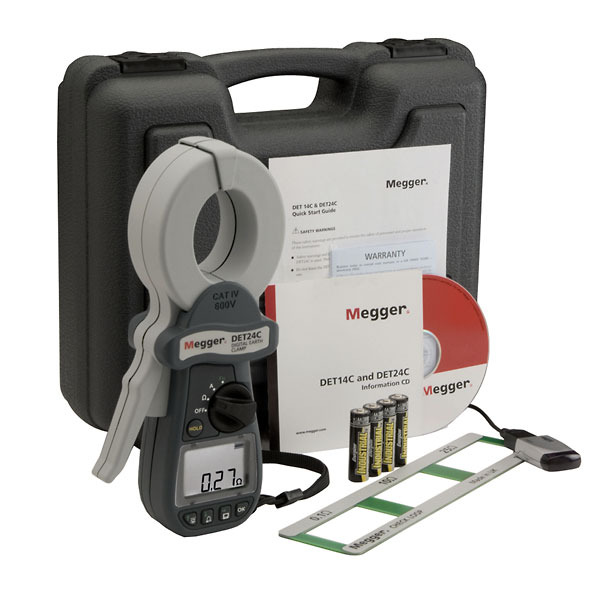

Included accessories for DET14C and DET24C

  • Carrying case 1001-715
  • Carrying strap (wrist loop) 1001-716
  • User guide CD-ROM 1001-198
  • Calibration check 1001-498
  • Battery AA (Alkaline) (4 required) 25511-841

Included accessories for DET24C

  • USB IrDA dongle 90001-434
  • PowerDB Lite software 1000-576
