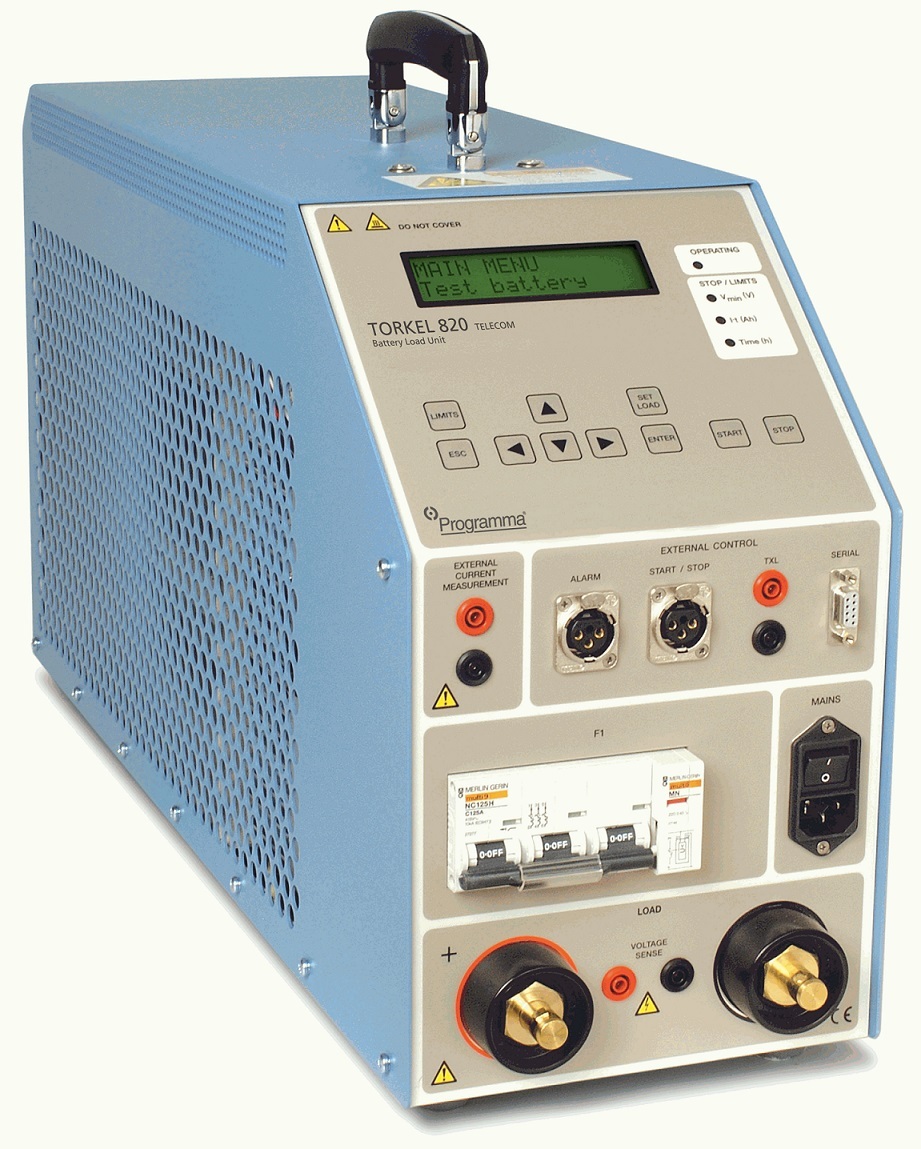

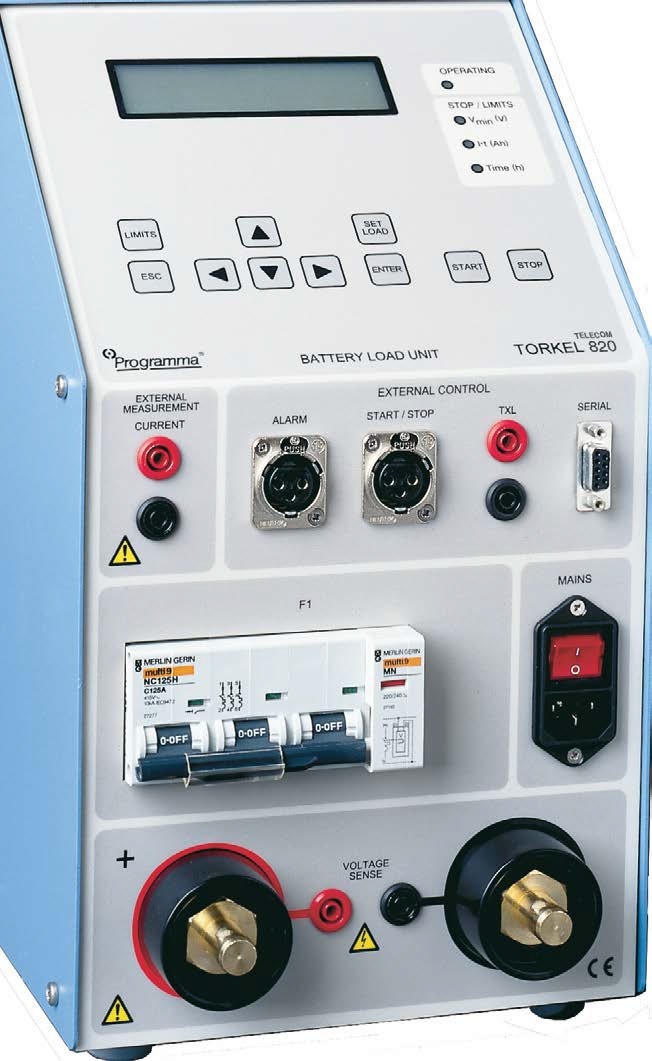

Sarcina testare descarcare baterii UPS-uri Megger TORKEL 820

Cod: Megger TORKEL 820 BS-49092 TLX830 TLX850 Programma




Brosura produs PDF, 0.49 Mb


Descriere

• Combines efficiency with portability

• Batteries can be tested "in service"

• Discharge 24 and 48 V batteries at a current of 270 A
• 12 V batteries at 135 A

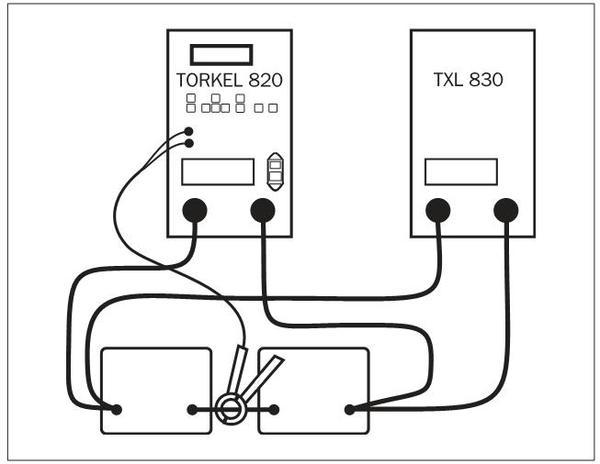

• Two or more TORKEL 820 units and/or extra load units TXL, can be linked together if you need higher current.
• Discharging proceeds at constant current, constant power or constant resistance, or in accordance with a pre-selected load profile.

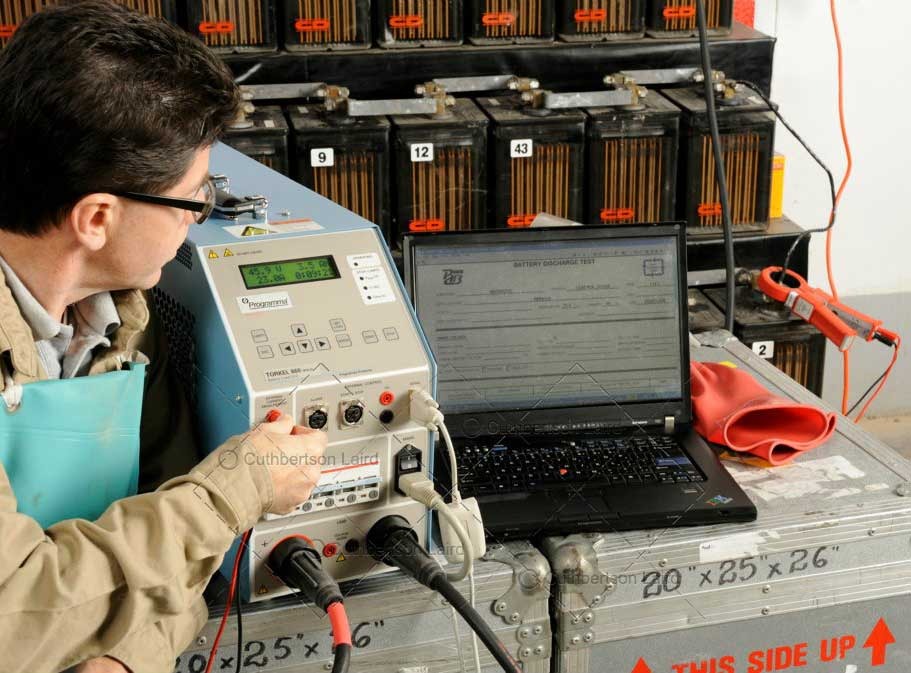

Batteries can be tested "in service"



??Unit adjusts to include load currents in the test parameters

??User adjustable alarm and shutdown points to avoid excessive discharge

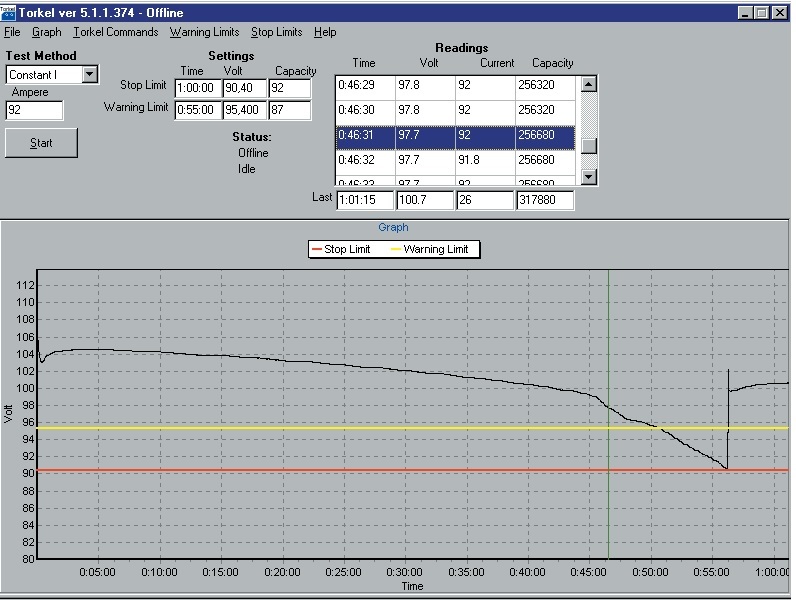

??View test parameters/results "real time" as testing progresses using TORKEL WIN

software

??Easily save results to a PC for analysis, report generation and storage







During a power outage, crucial telecommunication and radio equipment must be kept operating by batteries. Unfortunately, however, the capacity of such batteries can drop significantly for a number of reasons before their calculated life expectancy is reached. Battery capacity should thus be checked to prevent expensive downtime in the event of a power failure.



Accesorii standard

TORKEL 820

Complete with:

  • Cable set GA-00554
  • Transport case GD-00054 BS-49092


Optiuni recomandate

Optional

TORKEL Win PC software BS-8208X

Extra loads

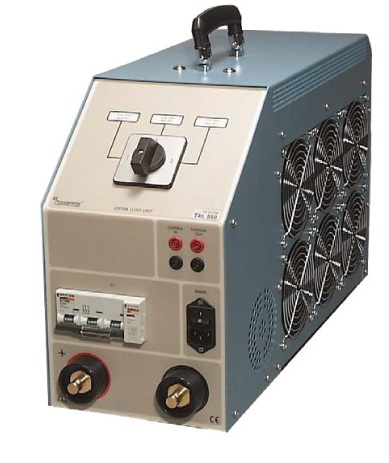

TXL830 BS-59093

TXL850 BS-59095



Cable sets

Cable set for TXL830 and TXL850 2 x 3 m, 70 mm2, with cable lug. Max 100 V 270 A. Weight: 5.0 kg (11 lbs) GA-00554

Sensing lead set

Cable set for measuring voltage at battery terminals. 2 x 5 m (16.4 ft) GA-00210

Clamp-on ammeters

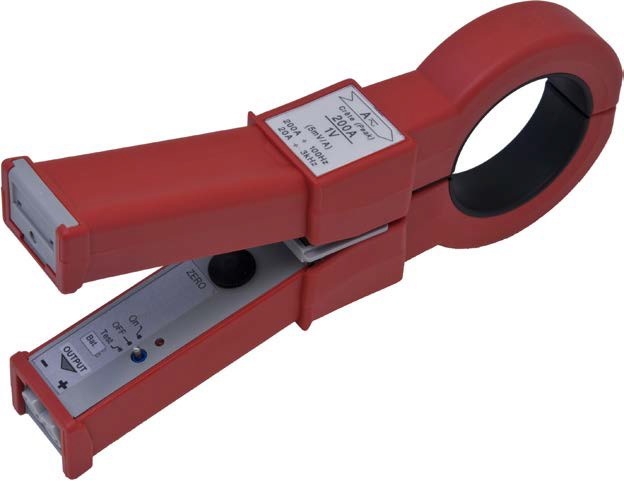

DC clamp-on ammeter, 200 A To measure current in circuit outside TORKEL XA-12992

DC clamp-on ammeter, 1000 A To measure current in circuit outside TORKEL XA-12990



BVM

Including:

Dolphin clips, Power & signal connector, Power supply, Connection cables and Carrying case

BVM150 With TORKEL Win software System of 16 BVM units CJ-59092

BVM300 With TORKEL Win software System of 31 BVM units CJ-59093

BVM600 With TORKEL Win software System of 61 BVM units CJ-59096

BVM150 With PowerDB software System of 16 BVM units CJ-59192

BVM300 With PowerDB software System of 31 BVM units CJ-59193

BVM600 With PowerDB software System of 61 BVM units CJ-59196
