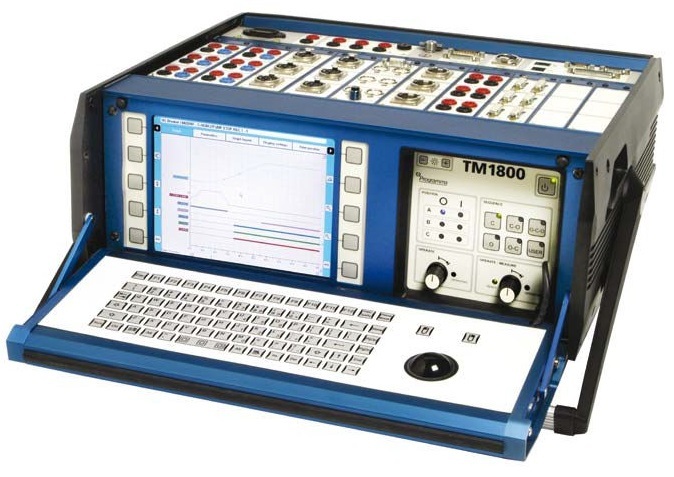

Analizor circuite intrerupatoare Megger TM1800

Cod: Megger TM1800 CG-19290 CG-19292 CG-19294 CG-19296




Brosura produs PDF, 1.42 Mb


Descriere

• Modular based design - user configurable TM1800 from nine different modules
• Built in PC with CABA Local software - advanced testing with predefined breaker test plans (templates), onsite measurement view and analysis
• Dual ground testing using DCM module - increased safety with both sides of breaker grounded
• Fast and easy testing - Select-Connect-Inspect workflow and high level user interface
• Graphical results for quick interpretation - timing and motion measurements, coil currents
• USB and Ethernet communication interface - for quick back up, LAN connection and printer options
• CABA Win - for advanced data analysis, database interface and common test data archive



The TM1800 is the instrument platform for circuit breaker maintenance, based on more than 20 years’ experience of over 4,000 delivered breaker analyzers. The modular construction makes it possible to configure the TM1800
for measurements on all known types of circuit breakers in operation in today’s power world.





Accesorii standard

TM1800 - Configurations



TM1800 Standard CG-19290

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 1

CG-19080 TM1800 Timing M/R Module 1

CG-19000 TM1800 Analog Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Standard - for DualGround testing CG-19292

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 1

CG-19080 TM1800 Timing M/R Module 1

CG-19192 TM1800 DCM Module 1

CG-19000 TM1800 Analog Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Expert CG-19294

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 2

CG-19080 TM1800 Timing M/R Module 2

CG-19000 TM1800 Analog Module 1

CG-19060 TM1800 Timing AUX Module 1

CG-8000X CABA Win - TM1800 1



TM1800 Expert - for DualGround testing CG-19296

Including:

CG-19090 TM1800 Basic Unit 1

CG-19030 TM1800 Control Module 2

CG-19080 TM1800 Timing M/R Module 2

CG-19192 TM1800 DCM Module 2

CG-19000 TM1800 Analog Module 1

CG-19060 TM1800 Timing AUX Module 1

CG-8000X CABA Win - TM1800 1







TM1800 - Separate items

TM1800 Basic Unit

Complete with: HDD module, CABA Local, Transport

case, USB Memory

CG-19090



Control Module (3 independent contacts)

Including:

3 cable sets, 5 m (16 ft), GA-00877

CG-19030



Timing M/R Module (6 channels + 6 PIR)

Including:

3 cable sets, 5 m (16 ft) total length,

2 m (6.5 ft) spread, GA-00850

CG-19080



DCM Module

Including:

3 DCM-cables, 12 m (39 ft)

CG-19190



DCM Module

Including:

6 DCM-cables, 12 m (39 ft)

CG-19192



Analog Module (3 channels)

Including:

3 cable sets, 10 m (33 ft), GA-01005

CG-19000



Digital Module (6 channels) CG-19040



Timing Aux Module (6 channels)

Including:

3 cable sets, 5 m (16 ft), GA-00870

CG-19060



Printer Module

Including:

Paper spool, GC-00040

CG-19050





Optiuni recomandate

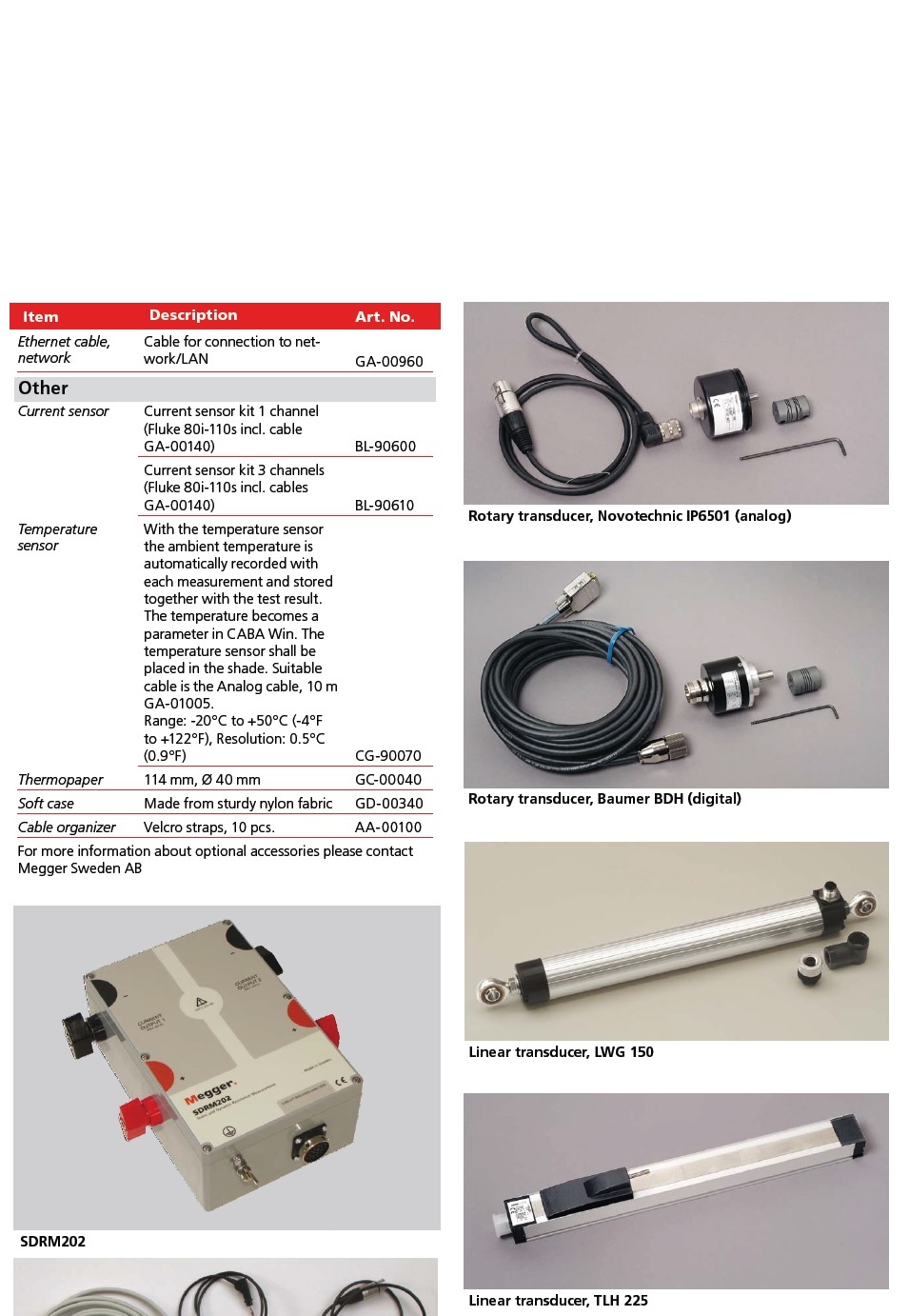

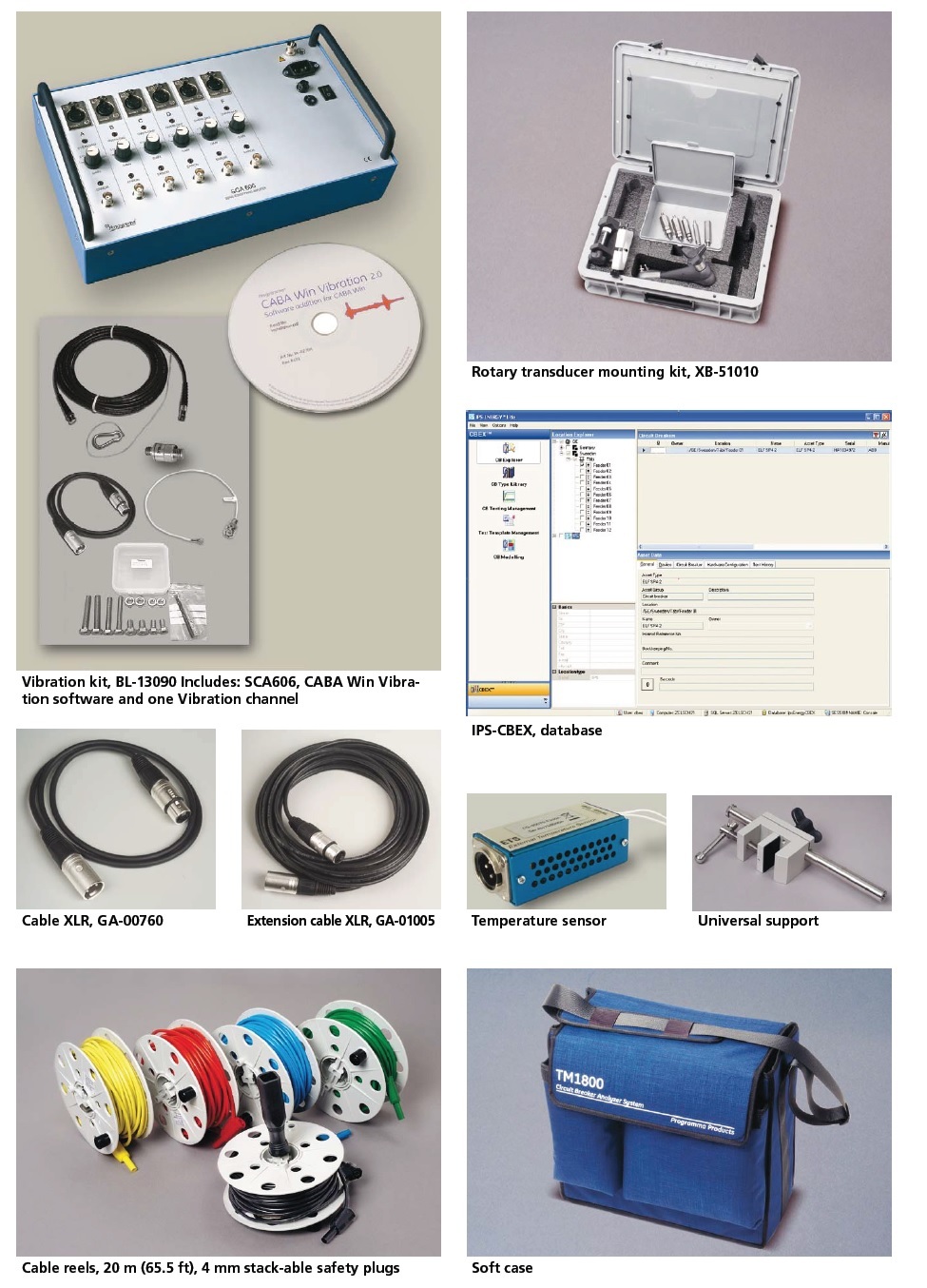

Optional accessories

See Optional accessories, pages 10- 11

CABA Win

See separate datasheet for CABA Win.



IPS-CBEX

IPS CBEX is a database for circuit breakers and can

be purchased as a stand alone SW or as a server

version and also as a nice priced package together

with TM1800 Expert.

For more information please visit our web site or

contact customer service.





Alte produse MEGGER

CLESTE MASURA REZISTENTA IMPAMANTARE MEGGER DET14C DET24C

• Elliptical clamp shape improves access to earth cables and straps up to 50 mm
• Low maintenance flat jaw interface
• Measures ground resistance from 0.05 O to 1500 O
• Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
• CAT IV 600 V safety rating
• Backlit LCD display



MICRO-OHMMETER MEGGER MOM600A

• Compact and tough
• Straight forward to use
• 600 A output current



TRUSA CURENT-TENSIUNE PENTRU VERIFICAREA RELEELOR DE PROTECTIE MEGGER FREJA 306

• current outputs, higher amps (3 x 15 A + 3 x 35 A), VA or compliance voltage.
• test differential relays with 6 currents, or virtually any single or 3-phase relay
• For secondary testing of protection relays
• Can be used stand-alone or with a PC
• Flexble, can test many relay types
• Lightweight and portable
• Greatest possible precision



DIGITAL MULTIMETER MEGGER - DCM340

• DC and AC current and voltage
• 600 A and 600 V
• Resistance and continuity
• 31/2 digit, 4000 count display with backlight
• High resolution digital bargraph



TESTER CAPACITATE SI FACTOR DISIPATIE TRANSFORMATOARE MEGGER CDAX-605

• capacitance and dissipation factor test
• High accuracy and wide measurement range
• Automatic measurement process
• Measures capacitive, resistive or inductive test objects
• High accuracy ratio measurements
• Works with any standard capacitor or resistor value without any recalculations
• All standard UST and GST configurations



KARL FISCHER MOISTURE IN OIL TEST SETS MEGGER ½ KF875 AND KF-LAB MKII

• Coulometric Karl Fischer titrimetry
• KF875 optimized for insulating oil with an SG of 0.875, completely portable
• KF-LAB MkII offers greater flexibility, versatility and sample data input than the KF875; also completely portable
• KF-LAB MkII analyzes materials with an SG between 0.6 & 1.4, plus insulating oils with an SG of 0.875



TRUSA TESTARE TRANSFORMATOARE SI STATII TRANSFORMARE CAPACITATE FACTOR DE PUTERE SI DISIPATIE MEGGER TRAX

• Înlocuiește nevoia mai multor seturi de testare
• Sistem puternic, portabil și compact
• Reduce timpul de instruire a utilizatorilor și de testare
• Extinde durata de viață a transformatoarelor de putere
• Testarea stării izolației la 1 Hz
• Gestionează și analizează datele de testare



AUTOMATIC OIL CIRCUIT RECLOSER TESTER MEGGER OCR8015/9150

• Preprogrammed test sequences for reclosers and sectionalizers
• High-capacity outputs to test virtually all reclosers
• Accurate duplication of high-voltage test results
• Simple operation and precise test results
• Simplified adjustment of test current



TESTER INDUSTRIAL MULTIFUNCTIONAL APLICATII FOTOVOLTAICE PANOURI SOLARE MEGGER IMT100

• Tester puternic 3 în 1 pentru instalaţii fotovoltaice sigure şi precise
• Excepţional de sigur de utilizat
• Suită completă de teste pentru rezistenţa izolaţiei
• Pregătit pentru condiţii exterioare

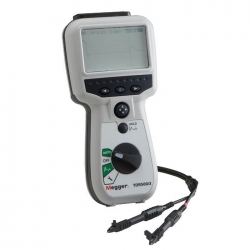

REFLECTOMETRU TDR LOCALIZARE DEFECTE CABLURI MEGGER TDR2000/2
