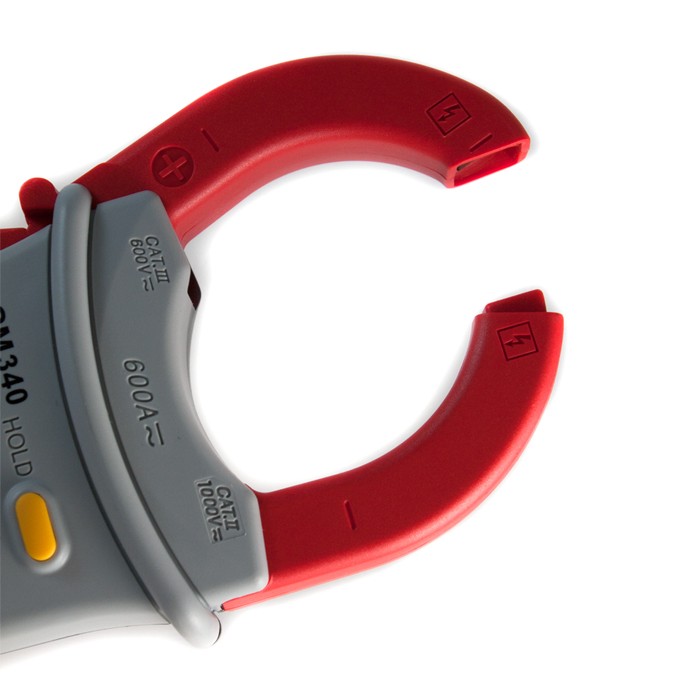

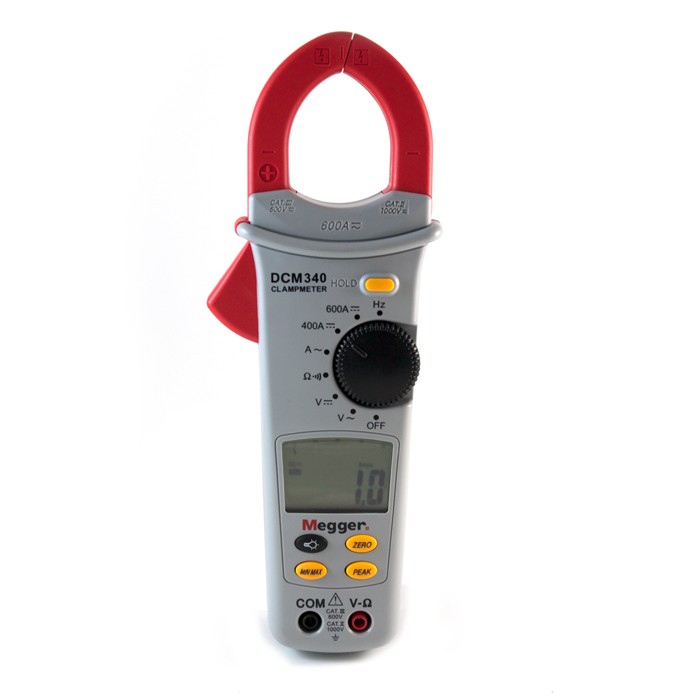

Digital Multimeter Megger - DCM340

Cod: Megger - DCM340




Brosura produs PDF, 0.18 Mb


Descriere

The DCM340 is a highly versatile instrument and ideal for use in the installation, maintenance, monitoring or checking of a.c. or d.c. electrical systems and equipment.



The DCM340 is safety rated to IEC 61010-1 Cat III 600 V, and is drop-tested to 1.2 m onto a hard floor. It is supplied with test leads and a carry case, and a full 1-year manufacturers warranty.



Features:

  • DC and AC current and voltage
  • 600 A and 600 V
  • Resistance and continuity
  • 31/2 digit, 4000 count display with backlight
  • High resolution digital bargraph
  • Peak, min/max and data-hold functions
  • Zero-offset REL mode for comparative measurements

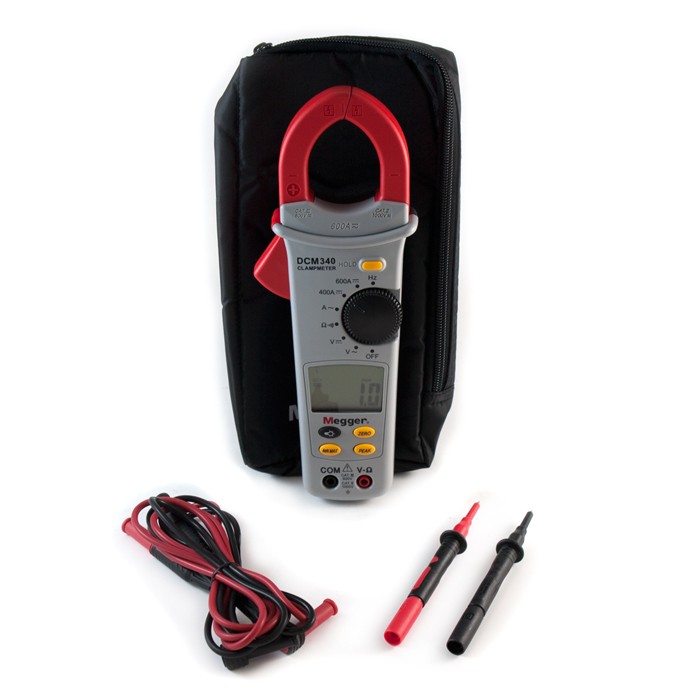

  • Supplied complete with test leads and carry case
  • IEC61010 CAT III 600 V
