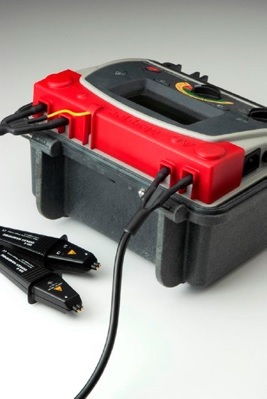

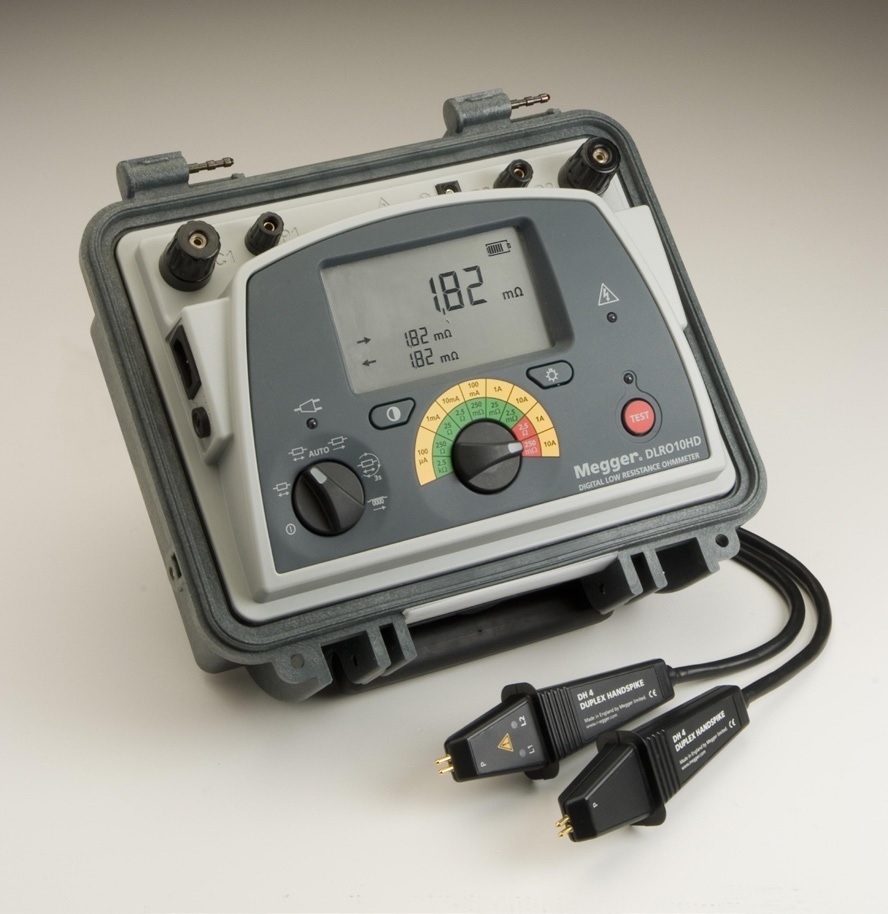

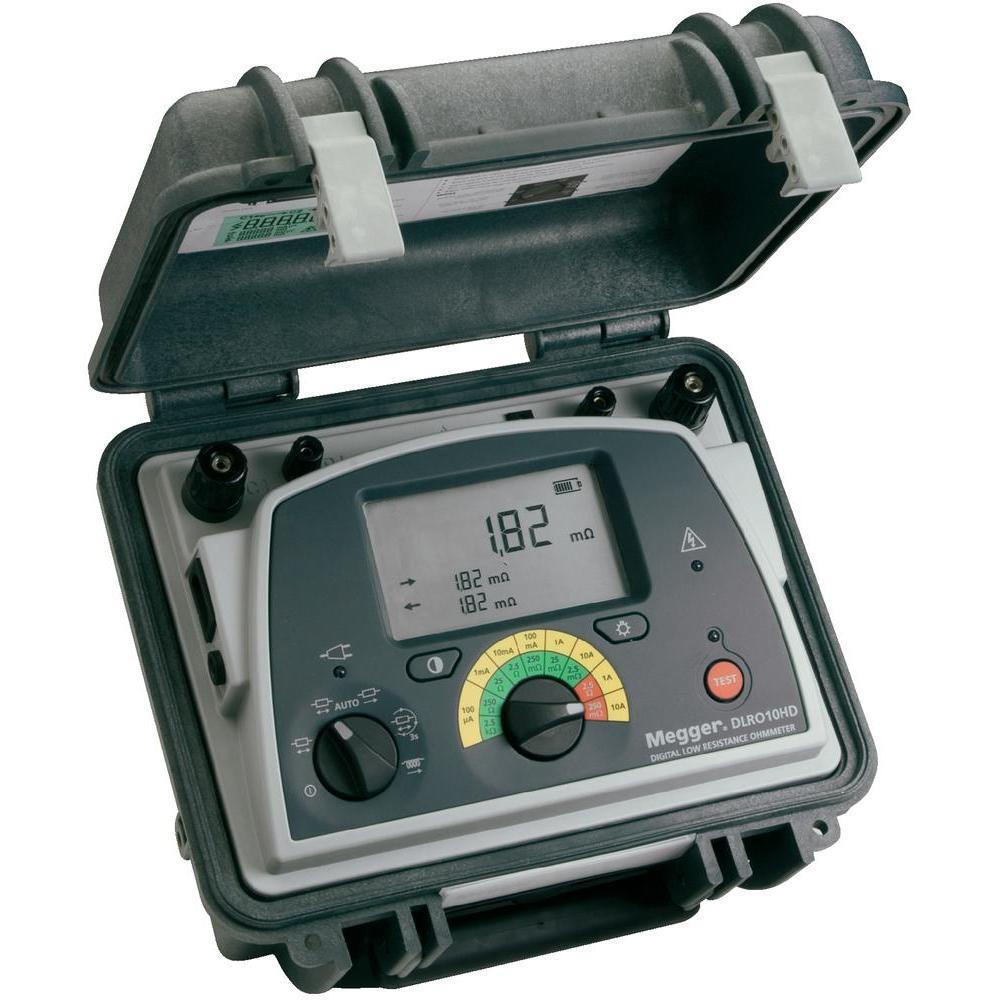

Microhmmetru 10A Megger DLRO10HD

Cod: Megger DLRO10HD 1000-348




Brosura produs PDF, 0.69 Mb


Descriere

• High or low output power selection for condition diagnosis
• Rechargeable battery or line power supply, continuous operation, even with dead battery
• 10 A for 60 seconds, less time waiting to cool, great for charging inductance
• High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
• Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
• Rotary switch selects one of five test modes, including auto start on connection, giving ease of use





Equally at home in the laboratory, the workshop or in the field, on the bench or on the ground, Megger’s new heavy duty DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use. It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat.



Accesorii standard

DLRO10HD Low Resistance Ohmmeter 1000-348

Included accessories

DH4 duplex handspike 1.2m 6111-503

Test lead pouch (lid mounted) 1000-036

DLRO10HD user guide CD 1000-869

Warranty book. 6170-618



Optiuni recomandate

Optional Accessories at extra cost

Calibration Shunt,10 O, current rating 1 mA. 249000

Calibration Shunt, 1 O, current rating 10 mA. 249001

Calibration Shunt, 100 mO current rating 1A. 249002

Calibration Shunt, 10 mO current rating 10 A. 249003

Certificate of Calibration for Shunts, NIST CERT-NIST

Replacement tips for DH4 and DH5 handspikes.

Needle point 25940-012

Serrated end 25940-014

Optional Test Leads at extra cost

Duplex Leads

DH5 straight duplex handspikes (2).

One has indicator lights. 2.5m/8ft 6111-517

Terminal cover (use in conjunction with DH4 test leads supplied as standard, or optional DH5 test leads for CATIII 300 Vcompliance) 1002-390

Duplex Handspikes (2) with spring loaded helical contacts. 2m/7ft 242011-7

DH1 2.5m/8ft 6111-022

5.5m/18ft 242011-18

only 1 lead supplied DH2 6m/20ft 6111-023

9m/30ft 242011-30

DH3 9m/30ft 6111-024



Straight Duplex Handspikes (2)

Heavy Duty with fixed contacts. 2m/7ft 242002-7

5.5m/18ft 242002-18

9m/30ft 242002-30

Duplex Heavy Duty 5cm (2")

C-Clamps. (2) 2m/7ft 242004-7

5.5m/18ft 242004-18

9m/30ft 242004-30

Duplex handspikes with replaceable

Needle Points 2m/7ft 242003-7

Duplex 1.27 cm (1/2 ")

Kelvin Clips. (2) gold plated 2m/7ft 241005-7

silver plated 2m/7ft 242005-7

Duplex 3.8 cm (11/2")

Kelvin Clips. (2) 2m/7ft 242006-7

5.5m/18ft 242006-18

9m/30ft 242006-30

Single Leads

Single handspike (1) for potential measurement. 2m/7ft 242021-7

5.5m/18ft 242021-18

9m/30ft 242021-30

Current clip (1) for current connections. 2m/7ft 242041-7

5.5m/18ft 242041-18

9m/30ft 242041-30
