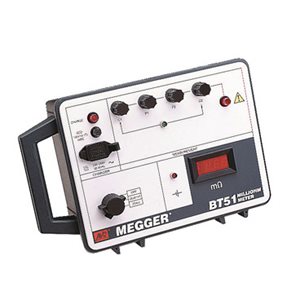

Bond Tester Megger - BT51

• Provides reliable and accurate test results in noisy high voltage substations
• Four standard models. Full stand-alone functionality or data acquisition models without user interface.
• Fast and safer with DualGround™ testing, both sides of breaker grounded
• On-screen assistance with connection diagrams and test template Wizard
• All models can be controlled via computer



• Stand-alone or remote-control operation
• Accurately measures ratio, phase deviation and excitation current
• Field upgradeable without compromise to calibration
• Built-in capability for storing and downloading test results in an XML format, via RS-232, Ethernet or USB ports (depending on model)
• Works in the presence of high interference/high voltage
• Highest ratio measurement (45,000:1); highest accuracy (0.1%)
• Displays % error vs. name plate with pass/fail limits



• used for battery systems ranging from 12 to 250 V
• Batteries can be tested "in service"
• Unit adjusts to include load currents in the test parameters
• User adjustable alarm and shutdown points to avoid excessive discharge
• Easily expandable for larger battery banks using TXL extra load units (option)
• Computerized test operation using TorkelWin software (option)



• Most advanced primary current injection test system to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more
• Modular design to permit optimal user configuration of output current vs. unit size
• Compact transport cart facilitates portability into switchgear rooms with limited space
• Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result



• Enables resistance measurement on circuit breakers
• Small and light weight
• A number of operations can be run with short waiting intervals



• capacitance and dissipation factor test
• High accuracy and wide measurement range
• Automatic measurement process
• Measures capacitive, resistive or inductive test objects
• High accuracy ratio measurements
• Works with any standard capacitor or resistor value without any recalculations
• All standard UST and GST configurations



• Rezoluție înaltă de 1 mΩ, ideală pentru sisteme de împământare mari
• Moduri de testare versatile
• Precizie ridicată pentru testele de rețea ale electrodului de împământare/masă și rezistivitatea solului
• Baterie reîncărcabilă care poate dura toată ziua cu o reîncărcare rapidă (până la 10 ore)
• Instrument robust cu protecție IP65
• Selectare automată a frecvenței de testare, cu filtre și funcții de curent ridicat



• Automated measurement and analysis of moisture content, tan delta/power factor and oil conductivity
• Individual temperature correction (ITC) of tan delta/power factor and oil conductivity
• 40% faster measurements with the new IDAX 5.0 SW
• Reliable measurements in high-interference environments
• Multi-function test set for transformer measurements



• Suitable for testing timing and travel on all circuit breakers with single interrupter per phase
• Extremely easy-to-use and reliable
• Two separate timing channels for measurement of auxiliary contacts
• Analog measurement channels for travel transducers or general voltage/current measurements
• Static and dynamic resistance measurements along with the SDRM201 accessory



• Extrem de ușor de utilizat
• Carcasă rezistentă din cauciuc
• Capac de protecţie autonom
• Avertizare circuit sub tensiune
• Rezistenţă la intemperii conform IP54
