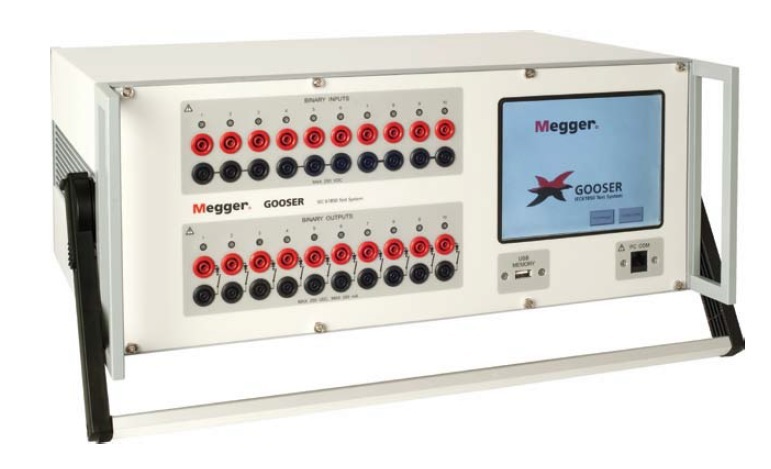

Tester de relee conform IEC 61850 Megger GOOSER

Cod: Megger GOOSER IEC 61850 IEC61850 CL-19000 CL-19090 CL-19091




Brosura produs PDF, 1.45 Mb


Descriere

? Reliable testing of IEC61850 relays using a conventional relay test set
? Separate Ethernet ports for the substation LAN and the controlling PC forming a Safe Substation Bus Access Point
? Seamless interaction between SCL GOOSE and GOOSE "sniffing"
? GOOSE merge - SCL GOOSE vs captured GOOSE for network troubleshooting and SCD file validation at FAT
? Stand alone functionality - Download a configuration and run
? Patent pending

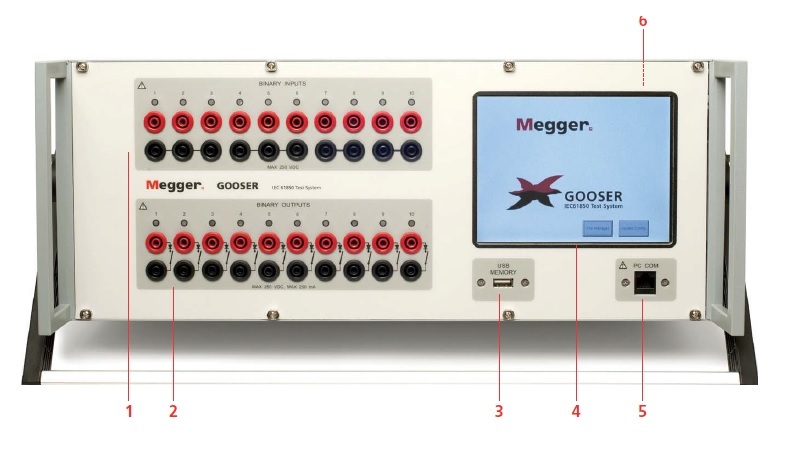

The GOOSER™ is a general purpose IEC 61850-8-1 GOOSE test equipment.
The GOOSER can convert a GOOSE message received on its rear Ethernet port into a binary output activation, and it can convert a binary input activation into a GOOSE message published (sent) at its rear Ethernet port. The conversion time is typically 0.6 ms.



Accesorii standard

GOOSER Portable version Incl. PC-GOOSER CL-19000



GOOSER Portable version CL-19090

Incl. PC-GOOSER, Ethernet cable 2 m (GA-00982),

Ethernet cable 10 m (GA-00984), USB memory

stick, Cable kit for GOOSER test cables (GA-00020)

and soft case (GD-00215)



GOOSER Portable version CL-19091

Incl. PC-GOOSER, Ethernet cable 2 m (GA-00982),

Ethernet cable 10 m (GA-00984), USB memory stick,

Cable kit for GOOSER test cables (GA-00020) and

hard case (GD-00500)



GOOSER 19" rack mounting version CL-19005

Incl. PC-GOOSER



GOOSER 19" rack mounting version

Incl. PC-GOOSER, Ethernet cable 2 m (GA-00982),

Ethernet cable 10 m (GA-00984), USB memory stick,

Cable kit for GOOSER test cables (GA-00020) and

hard case (GD-00500) CL-19095



Optional

PC-GOOSER

Windows® software 1 to 4 licenses CL-8302E



PC-GOOSER

Windows® software 5 or more licenses CL-8402E



Electrical / Fiber Optical Ethernet converter -

(RJ45)/(ST) standard multimode HC-04260

Optical fiber cable, 5 m, ST-ST GA-00986

Optical fiber cable, 5 m, LC-ST GA-00987



Cable kit for GOOSER test cables

Banana plug, 2p tp black (Jumper) - 3 pcs

Test cable red, 0.25 m - 10 pcs

Test cable black, 1 m- 5 pcs

Test cable red, 1 m - 5 pcs GA-00020

Ethernet cable, 2 m, non-shielded, crossed, red GA-00982

Ethernet cable, 3 m, shielded, straight, grey GA-00985

Ethernet cable, 10 m, shielded, straight, grey GA-00984
