Karl Fischer Moisture In Oil Test Sets Megger ½ KF875 and KF-LAB MkII

Cod: Megger KF875 KF-LAB MkII




Brosura produs PDF, 0.22 Mb

Descriere

Over 20 years experience has led to the development of the Megger KF875 and KF-LAB MkII Coulometric Karl Fischer Test Sets designed to determine moisture in oil, to provide highly accurate results on-site. The KF875 and KF-LAB MkII are highly portable instruments, complete with integral printer and carrying case, are easy to use and provide highly accurate results.



Optimized for testing insulating oils with a specific gravity of 0.875, the Megger KF875 simply requires the operator to press one button and inject a 1ml sample into the test cell. The simple ½one touch½ operation makes the KF875 so easy to use that it requires no specialist knowledge or training to use it effectively. Results are presented on the instrument display and on the integral printer in both micrograms of water and in milligrams per kilogram (parts per million, ppm).



The KF-LAB MkII allows the titration of samples with a range of specific gravities from 0.60 to 1.40 and also permits the use of different sample sizes. The KF-LAB MkII also has a default setting optimized for analyzing insulating oils with an SG of 0.875. This means it can be used to measure water content in a variety of different materials but is also easy to set up for transformer insulating oils.



Features:

  • Coulometric Karl Fischer titrimetry
  • KF875 optimized for insulating oil with an SG of 0.875, completely portable
  • KF-LAB MkII offers greater flexibility, versatility and sample data input than the KF875; also completely portable
  • KF-LAB MkII analyzes materials with an SG between 0.6 & 1.4, plus insulating oils with an SG of 0.875


Alte produse MEGGER

IRRADIANCE METER MEGGER - PVM210

• Optimal incident angle and positioning of solar panels
• Measurement of solar power for panel short circuit calculation
• 33/4 digit LCD display with 1999 W/m2 range
• Single handed use



LOCATOR SCURGERI LA PAMANT CURENTI DC IN SISTEME BATERII MEGGER BGFT 246100B

• Ground faults in ungrounded dc battery systems easily located
• Operates in high electrical noise environment
• Simplifies fault tracing by identifying fault characteristic (resistive and capacitive) magnitudes



APARAT PENTRU MASURAREA RIGIDITAII DIELECTRICE A ULEIULUI ELECTROIZOLANT MEGGER OTS60AF OTS80AF OTS100AF

• Test voltages : 60 kV, 80 kV and 100 kV
• Laboratory instruments for measuring insulating oil breakdown voltage
• Lock in precision - oil vessel with lockable adjustment
• Bright 3.5" colour display
• Suitable for mineral, ester and silicon oils
• Trip detection circuit with direct measurement of voltage and current
• Ultra fast (< 10 µs) HV switch off time

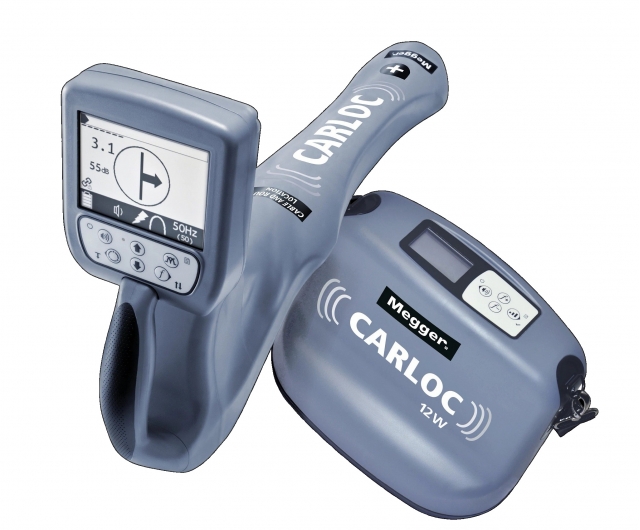

LOCATOR TRASEE CABLURI MEGGER CARLOC
