Tester impedanta baterii Megger BITE3

Cod: Megger BITE3 Biddle




Brosura produs PDF, 0.45 Mb


Descriere

• Determines health of lead-acid cells up to 2000 Ah
• On-line testing with Pass/Warning/Fail calculations
• Measures impedance, interconnection resistance and cell voltage
• Windows CE operating system with 32 MB of memory
• Measures float and ripple currents
• Includes PowerDB LITE Management Software

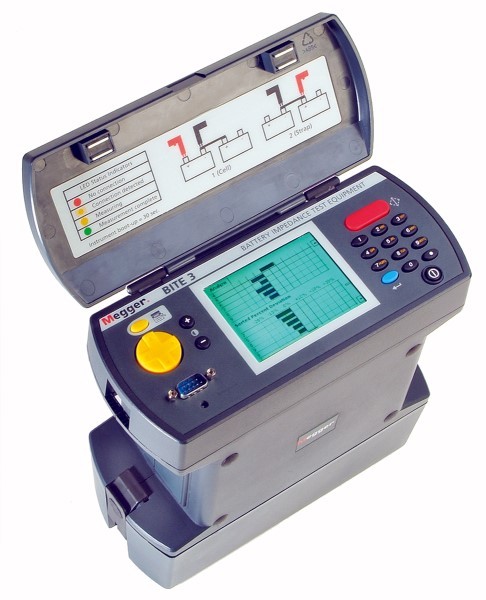

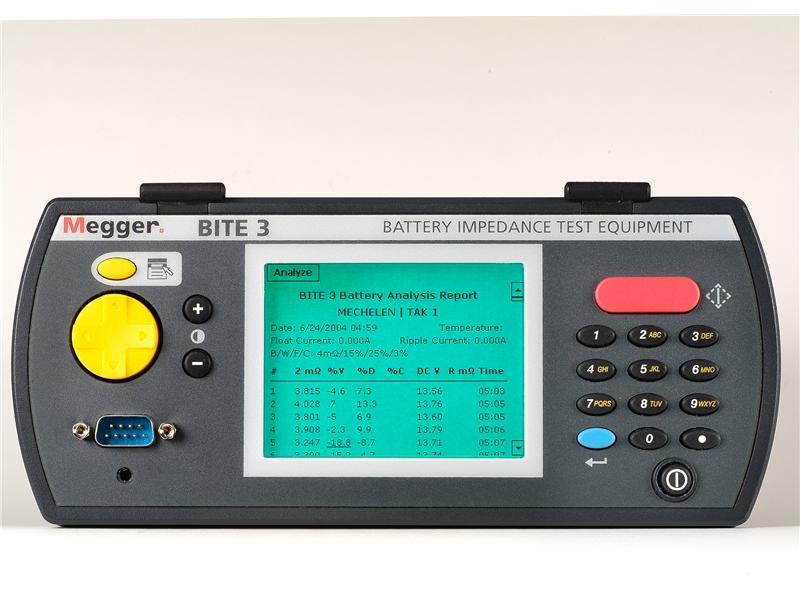

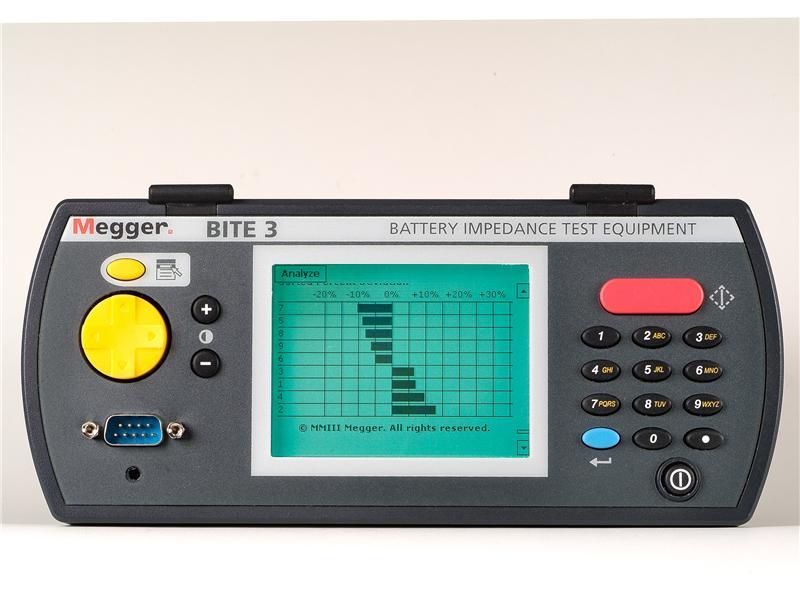

The Megger BITE3 Battery Impedance Test Equipment determines the health of lead-acid cells up to 2000 Ah by taking measurements of the most important battery parameters. The BITE3 measures cell impedance, an internal ohmic test, cell voltage, intercell connection resistance and ripple current. And, for the first time in a battery instrument, the BITE3 measures float current and the harmonic content of the ripple current. There is even a built-in spectrum analyzer to show the harmonic content of the ripple current. It has firmware that can be upgraded through the Internet and supports multiple languages.

The BITE3 is one of the easiest instruments to use. Its measurements, along with temperature, specific gravity and other battery data, can provide the best basis for evaluating the overall health of batteries from terminal plate to terminal plate and to a lesser extent, the charger (from ripple current and its harmonic content.) Megger recommends that the BITE3 be made part of a comprehensive battery maintenance program with readings taken and recorded semi-annually for flooded, lead-acid cells and quarterly for VRLA.

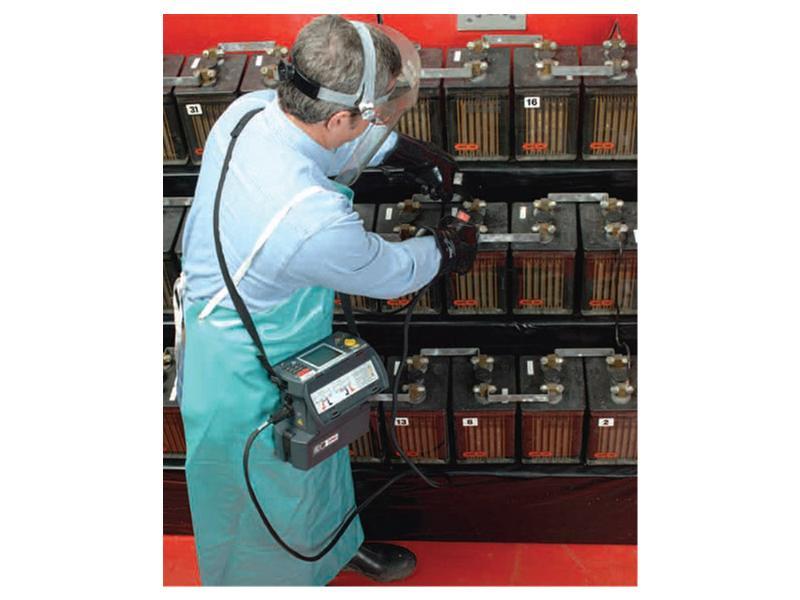

The BITE3 is quick, reliable and easy to use. With a rapid test time, one person can easily, quickly and precisely measure cell and string parameters without taking the system off line.



Accesorii standard

BITE3, 110/230 V ac, 50/60 Hz, CE-marked BITE3

Included Accessories

  • PowerDB software 1001-381
  • Canvas carrying case 35788
  • RS-232 null modem cable 33533-1
  • Line charger 6280-333
  • Battery 6121-492

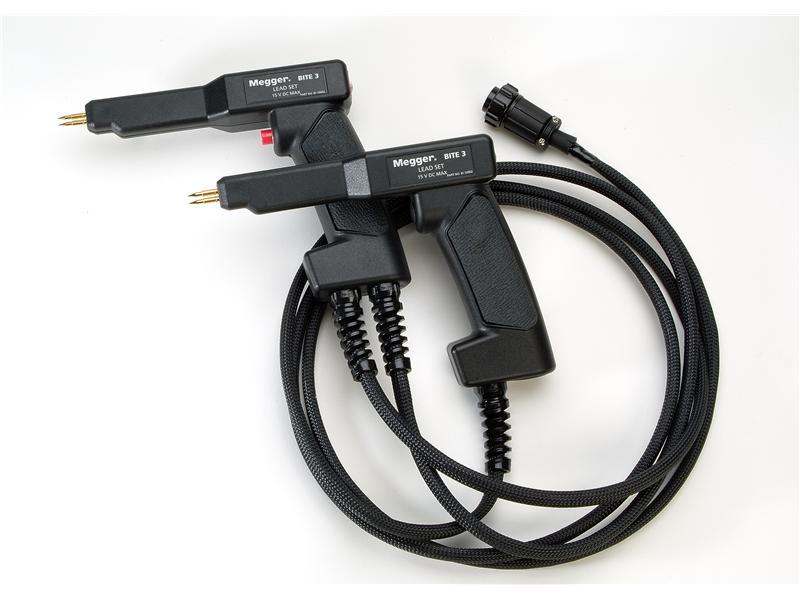

  • Dual-point lead set BI-10002
  • Tip kit BI-10017
  • Operating manual AVTMBITE3


Optiuni recomandate

Optional Accessories

  • Lead set, 6 ft (1.8 m) probe to probe 36616
  • Printer, battery-operated, 110 V ac 35755-3
  • Printer, battery-operated, 220 V ac 35755-4
  • Printer paper, 1 roll 26999
  • AMP/Burndy lead set BI-10004
  • Kelvin clip lead set BI-10005
  • Quick Disconnect lead set BI-10006
  • Cigarette lighter charger 6280-332
  • Current transformer kit 35873
  • USB-serial adapter 35871
  • Probe extensions, lighted 35865
  • Hard-sided carrying case 35890
  • Standard transit case 35915
  • Field test shunt, 0.01 O, current rating 10 A 249003
  • Field test shunt, 0.001 O, current rating 100 A 249004
  • Field test shunt, 0.0001 O, current rating 500 A 249005
