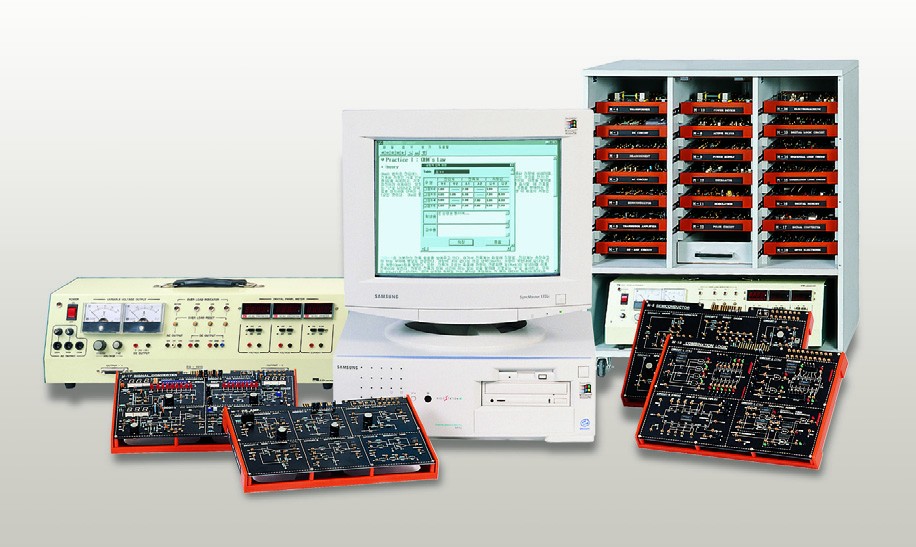

Basic Electricity & Electronics Trainer ED-1010

Cod: ED-1010




Brosura produs PDF, 2.01 Mb

Descriere

SPECIFICATIONS

  • DC Output
    • 0~20V, 2A(Connector & Terminal Output)
    • +12V, 1A(Connector & Terminal Output)
    • ±5V, 1A(Connector & Terminal Output)
    • ±15V, 1A(Connector Output)
  • AC Output
    • 24V(CT), 0.5A(Connector & Terminal Output)
    • 110V, 0.5A(Terminal Output)
    • 220V, 0.5A(Terminal Output)
  • Indication
    • Display Range : 0~20V FS AVM, 0~2A FS AAM
    • Digital Voltmeter : 20V, 20V FS(2ranges) - 2ea
    • Digital Ammeter : 0.2A, 2A FS(2ranges)
  • Protection Circuit
    • AC Output : 12V +12V(24V)(with Reset)
    • DC Output : +12V, +5V, -5V(with Reset)
  • Input Voltage : AC 220V, 50/60Hz
  • Dimension : 610(W)x205(H)x190(D)mm
  • Weight : 14kg



MODULES & MODULE STORAGE CABINET

  • No. of Modules : 20ea(including option modules : 3ea)
  • Dimension
    • (Module) : 310(W) x 32(H) x 220(D)mm
    • (Storage cabinet) : 745(W) x 920(H) x 440(D)mm
  • Total Weight : 130kg



SYSTEM REQUIREMENT

  • IBM PC-compatible 486 or higher
  • RAM : 8Mbyte, or higher, VGA : 640x480 or better
  • PC Operating System : Windows NT, 2000, XP



ACCESSORIES

  • Software(CD or Floppy Disk) : 1ea
  • AC Power Cord : 1ea
  • Patch Cord(including Jumper) : 1set
  • Connector Cable(for Module’s power) : 2ea
  • Instruction Manual : 1ea
