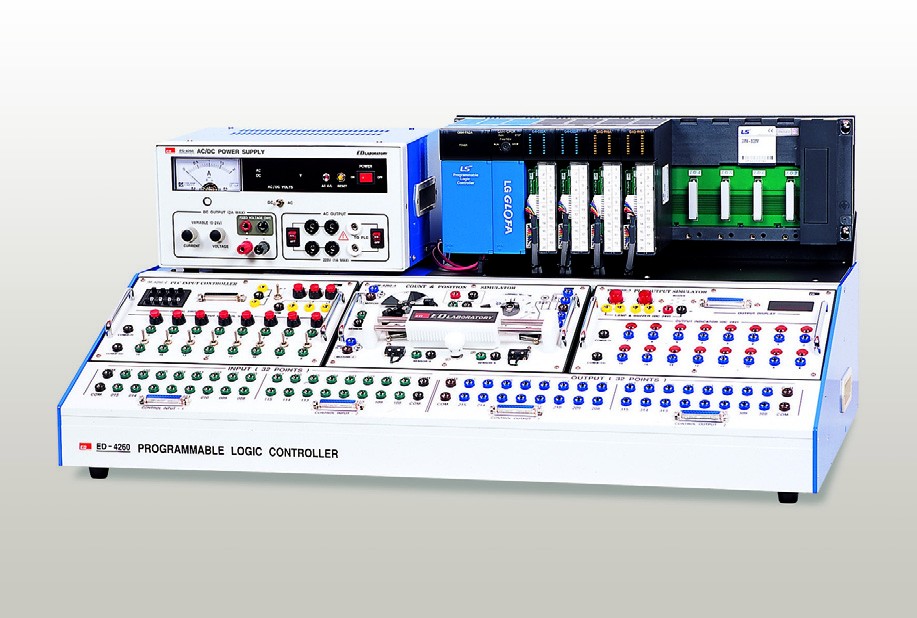

Programmable Logic Control Trainer ED-4260

Cod: ED-4260




Brosura produs PDF, 1.45 Mb

Descriere

MAIN FRAME

  • DC Output
    • Output Voltage : 0~24V(Continuously Variable)
    • Current : 0~2A(Continously Variable)
    • Ripple : 0.02% + 2mV
    • Regulation : 0.02% + 1mV
    • Voltmeter : DVM 3digits
    • Ammeter : AAM
    • Protection : Constant Current Protection(Fixed DC 24V)
  • AC Output
    • Voltage : 220V(Fixed Type)
    • Current : 1A(Maximum)
    • Terminal : Safety connector type
    • Protection Circuit : Electronic stabilization of overcurrent (Reset function)
    •  Voltmeter : DVM 3 Digits
  • In-Output Terminal
    • Input : 32 Points(8-point COM)
    • Output : 32 Points(8-point COM)
  • Modules : Basic : 3ea , Optional : 16ea
  • Number of Base Slots : 8ea(excluding the power unit and the CPU unit)
  • Input Voltage : AC 220V 50/60Hz
  • Dimension : 760(W) x 430(D) x 340(H)mm



PLC UNIT (GLOFA-GM4)

  • Control Method
    • Stored Program, Repetitive Operation, Pre-timed Operation, Interrupt Operation
  • Input/Output Control Method
    • Scan synchronized batch processing
  • Program Language
    • LD(Ladder Diagram), IL(Instruction List), SFC(Sequential Function)
  • Type of Language
    • Operator : LD 13ea, IL 21ea
    • Basic Function : 109ea
    • Basic Function Block : 11ea
    • Special Function Block : Exclusive use for the special function module
  • Computing Speed
    • Operator: 0.2µs/command
    • Basic Function, Function Block : 0.2µs/step
  • Maximum I/O Points
    • 512 Points(In case of using the 16-point module)
    • 1024 Points(In case of using the 32-point module)
  • Data Memory
    • Direct Parameter Domain: 2~16k bytes(assigned by the parameter)
    • Symbolic Parameter Domain : 52k bytes(direct parameter domain)



ACCESSORIES

  • Connection Cord(ø4) : 1set
  • RS-232C Cable : 1ea
  • Circuit Connection Cord : 1set
  • AC Power Cord : 1ea
  • Dust Cover : 1ea
  • PLC GLOFA-GM4 Manual CD : 1ea
  • Operating Program CD (*Provided only if a full set is ordered) : 1ea



OPTIONS

  • Option Modules : 16ea
  • Simulation Software Programmable Logic Controller (EDS-SimPL)



Features:

  • Modular PLC system with GLOFA-GM4 PLC unit
  • 32 input points / 32 output points
  • Monitoring of internal data through the 4-digit LED
  • LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
  • Stepping motor and DC motor installed as standard for rotational / linear movement
  • Basic 3 Modules : Input Controller, Output Simulator, Count & Position Simulator
