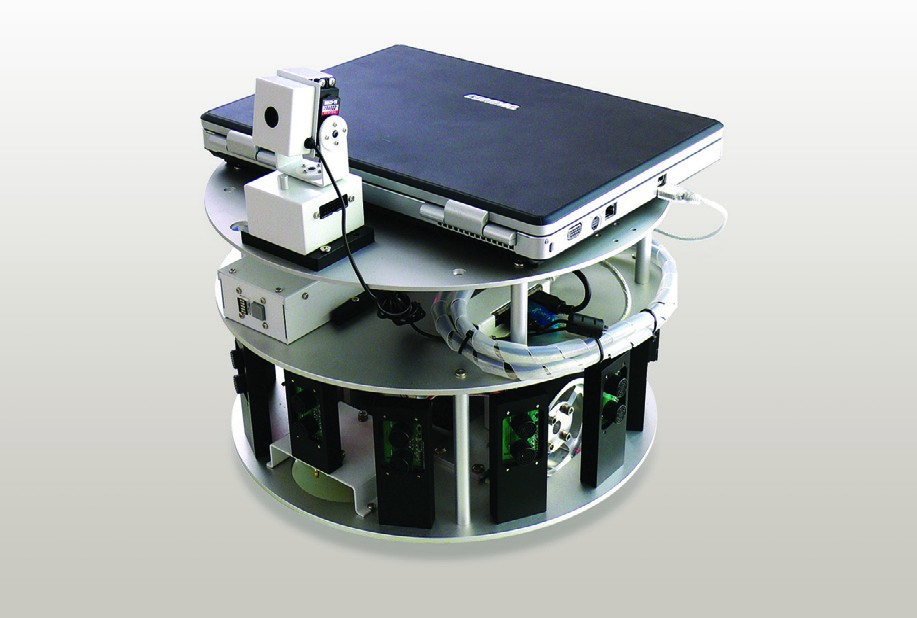

Intelligent Robot Development Kit ED-7273

• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC



• Inverse current protection
• Built-in charge controller and bulit-in battery
• Overcurrent/electric discharge protection
• 360° rotation by the direction of wind
• Configurable composite structure by adding optional



• Load characteristics of DC compound motor
• Cumulative compound and differential compound characteristics
• Generator’s rotating speed and output characteristics
• Loss and efficiency of DC compound generator



• Composed of essential devices for Programmable Logic Controller I/O commands
• LD (Ladder Diagram), IL (Instruction List), SFC (Sequential Function)
• Built-in Simulator to train on the encoder’s principle and functions
• Stepping motor and DC motor installed as standard (forward/reverse rotation, linear movement)
• Capable of network configuration by CPU and Remote I/C Link



• Experiments on Servo Motor control techniques using Servo Driver
• Aluminum carrying case for convenient storage and mobility
• JOG operation, PLC control operation, PC control operation
• Various types of control elements easily to be mounted
• Capable of checking normal operating voltage / over current by voltmeter and ammeter



• Foundation for the Ubiquitous System Build
• Intel PXA 270 high performance processors
• 6.4TFT LCD, Ethernet 3Port, Serial 3Port, PCMCIA/CF/MMC interfaces
• FPGA Chip Altera Cyclone 4,000 LEs(12,000 LEs Option) for SoC courses
• Processor Core Board & CMOS Image Sensor



• Analog feedback loop & DC servo system
• Modularized by the function of servo circuits
• Overload protection for the servo amp's and power supply's output



• The Electronic Manual operable on PC comes with ED-1440 and e-learning is optimized by remote control of student’s operating program and evaluation of student’s online peport in real time.
• Through DS-1410, it provides Variable Power Supply(VPS), Function Generator(FG), Analog Output, Digital Output needed for experiments.



• Complete Motor/Generator Training System
• Various load characteristics(Resistance, L/C Reactance and Torque)
• Selectable System(ED-5100-1, ED-5100-2, ED-5100-3 or Full Set)



• High-performance digital synthesizer method
• Wide Frequency Coverage : 9 kHz ~ 6.2 GHz
• Superior Resolution : Minimum 1 Hz
• Compact & Portable size
• Wide Input Dynamic Range : -105 ~ 20 dBm
• Various and Convenient Interfaces : USB, LAN
