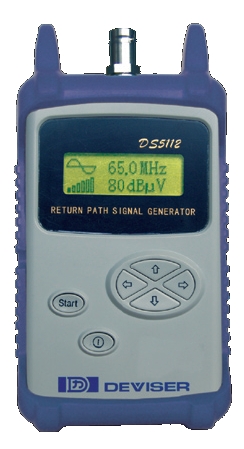

Generator semnal TV HFC Return Path 5..65 MHz Deviser DS55112

Cod: Deviser DS5112




Brosura produs PDF, 0.31 Mb

Descriere

DS5112 is charactered with return path frequency range 5MHz-65MHz and continuous adjustment of the amplitude, adopting advanced DDS technique and high speed D/A chip, assure to be high-precision. Its small dimension, light weight, portable and LCD display, concise interface, background light, conveniently used in nighttime.



  • Advanced DDS technique and high- speed D/A chip
  • Automatic temperature supplemental circuit and output protect module
  • Small dimension,light weight



Frequency Range

5 MHz ~ 65 MHz

Frequency Accuracy

±20 × 10-6

Frequency Resolution

100 kHz

Maximum Output Level

110 dBµV

Maximum Output Attenuation

30 dB / 1 dB step

Output Level Accuracy

< ±2 dB

Output Impedance

75 O / BNC

Battery

2 Ah AA Ni-MH battery

Working Time

> 4.5 Hours
