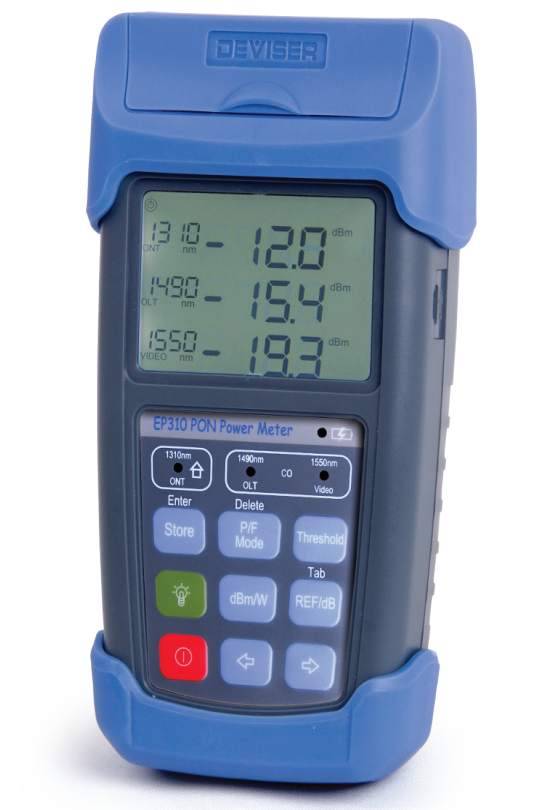

Deviser EP310 Series PON Power Meter

Cod: Deviser EP310




Brosura produs PDF, 0.47 Mb

Descriere

The EP310 is a passive optical network (PON) power meter that enables users to quickly validate PON network installations. It measures 3 EPON wavelengths (1310/1490/1550 nm) at once, with user-defined limits and USB data transfer to simplify interpretation. Advanced model EP90 also includes a Visual Fault Locator (VFL) to detect faults, bends, and splices in fiber.



Features:

  • Simultaneously verifies the power levels of all PON wavelengths (1310 nm, 1490nm, and 1550nm)
  • Pass/fail analysis helps user quickly interpret results and ensures consistent PON turn-up
  • Green light/red light LED helps user easily identify pass/fail results
  • Rugged unit is water- and shock-resistant
