Deviser DS2500Q Digital TV QAM Analyzer

Cod: Deviser DS2500Q




Brosura produs PDF, 2.47 Mb

Descriere

Integrating multiple functions in a single handheld instrument, the new DS2500Q is a powerful Digital TV QAM Analyzer with a comprehensive measurement suite specifically designed for HFC network testing, troubleshooting, and maintenance. The DS2500Q's main functions include Enhanced Spectrum Analysis, Analog & Digital TV analysis, DOCSIS 3.0 analysis, Upstream Signal Generator, Ethernet testing, and Auto Test. The revolutionary EVS function enables users to detect coherent distortions hiding under QAM carriers - without interrupting service. The DS2500Q supports Deviser's PC software toolkit, included with each unit, to make data transfer a snap.



Features:

  • High Speed Spectrum Analysis: 4~1000MHz
  • Integrated DOCSIS 3.0 Cable Modem
  • Integrated Upstream Signal Generator (no FEC)
  • Supports ITU- -T J.83 Annex A/B/C
  • Error Vector Spectrum: identifies interference signals under QAM carriers, with no break in service
  • Auto Test


Alte produse DEVISER

MULTIMETRU OPTIC: POWERMETRU + SURSA LUMINA DEVISER EP700

• Integration of optical power meter, light source and visible faulty locator
• FTTX application and PON wavelength
• 30 hours working time



DEVISER TC601E ETHERNET AND E1 TESTER

• 1000Base-X optical port x 1, 10/100/1000Base-T electric port x 1
• Complete solution for activating, verifying & fault-diagnosing Ethernet service from 10Mbit/s to 1Gbit/s quickly and easily
• Convenient and intuitive user interface
• Integrates multiple software tools for field measurement, ensuring high cost-performance
• Professional PDF and CSV data report generation

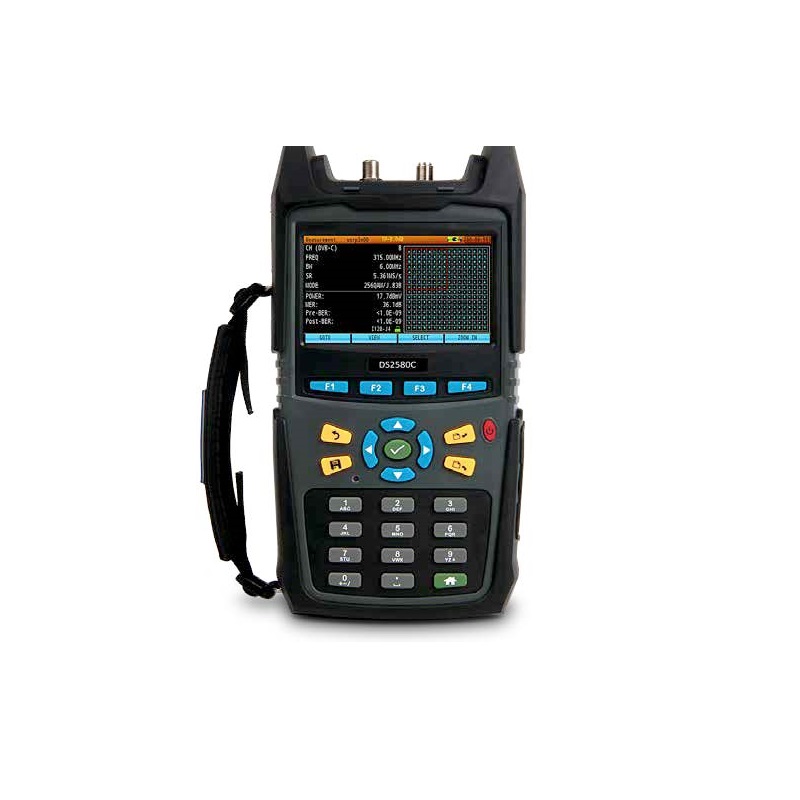

DEVISER DS2580C DIGITAL TV QAM ANALYZER
