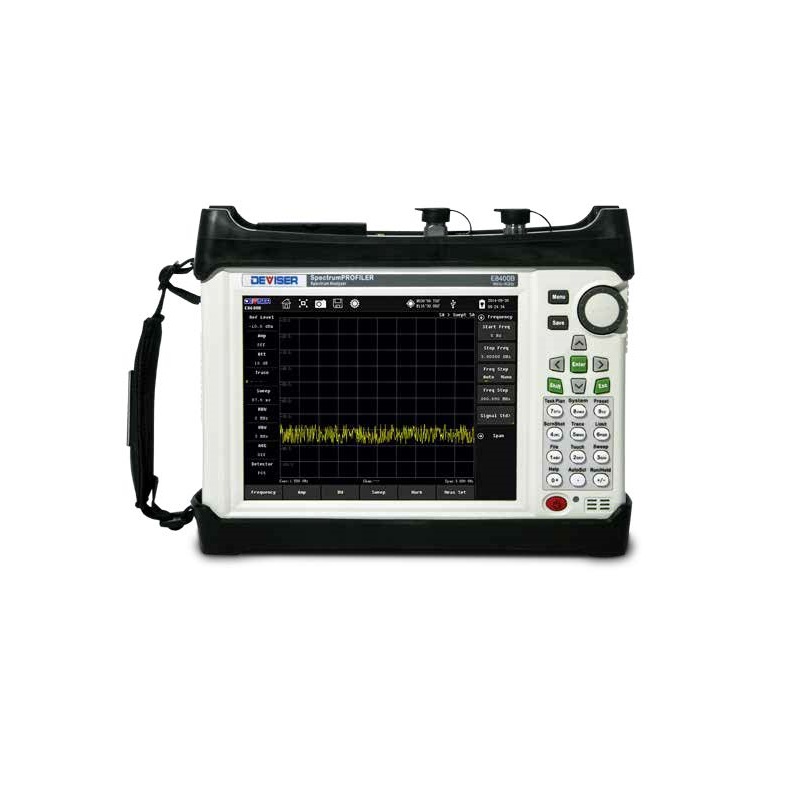

Deviser E8600B Spectrum Analyzer

Cod: Deviser E8600B




Brosura produs PDF, 0.33 Mb

Descriere

Today½s wireless spectrum is shared among different communications systems and services including mobile communications, mobile radios, paging, wireless local-area networks and digital video broadcasting. In additional to licensed systems, the spectrum is also shared with unlicensed transmitters and signal impairments such as reflections and fading. The combination of all these signals creates a very complex environment which must be first cleared and routinely monitored in order to maximize service performance. Designed specifically for wireless communications field engineers and technicians, the E8600B Spectrum Analyzer provides all necessary measurement functions and performance to accurately characterize the signal environment in addition to clearing, detecting, identifying and locating signal interference in a lightweight, handheld instrument.



Features:

  • Handheld, lightweight, rugged design that withstands harsh environments and lighting conditions
  • Intuitive menu structure enables ease of use and quick measurements
  • Quickly identifies, locates and maps signal interference
  • Performs comprehensive signal analysis for complete site profile and monitoring of signal environment
  • Occupied Bandwidth, Channel Power and ACPR
  • Dual spectrum and spectrogram measurements
  • Verify RF transmission
