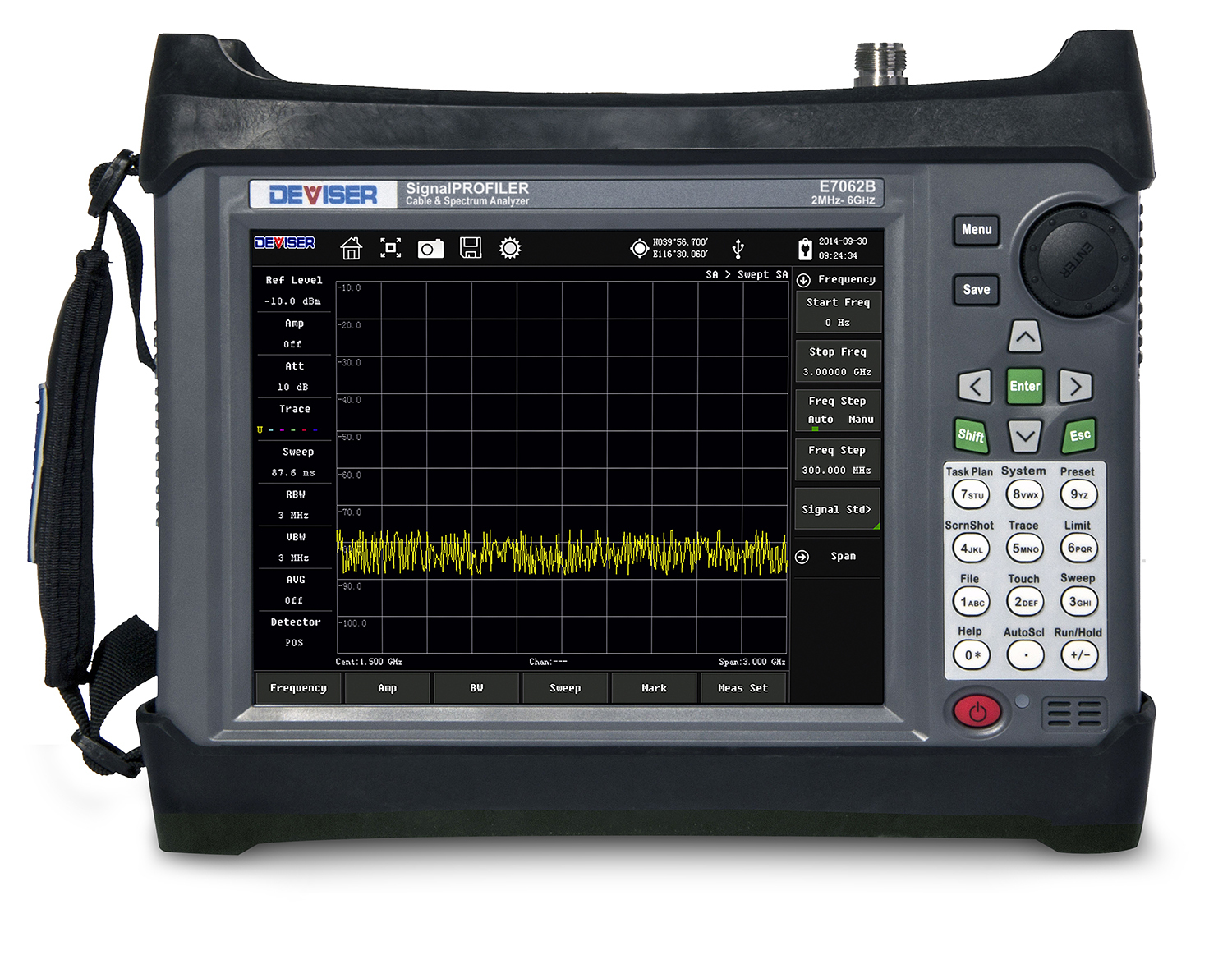

Deviser SignalPROFILER E7042B

Cod: Deviser E7042B




Brosura produs PDF, 1.01 Mb

Descriere

The SignalPROFILER combines the power and functionality of cable and antenna system analysis, fiber inspection, spectrum analysis, cellular signal demodulation, interference analysis, signal coverage mapping and RF/optical power measurements in a single instrument. As a multi-functional instrument, the SignalPROFILER can be configured to meet your specific test needs at the time of purchase or at a later date as your test needs evolve. Additional measurement capability can be added on the fly in the field in a matter of seconds. Designed specifically for wireless communication field engineers and technicians who install, maintain and troubleshoot wireless communication sites, the SignalPROFILER was developed to get the job done right ½ the first time ½ with multiple cutting edge features that deliver accurate results, improve productivity and reduce OPEX and CAPEX.



Features:

  • RF, fiber and wireless signal quality testing ½ in a single instrument
  • Perform traditional RF feedline tests, inspect fiber connectors with auto pass/fall results and measure RF/Optical power
  • Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
  • Test MIMO 4x4 antenna performance
  • Detect signal degradation and system performance over time with trace overlay
  • Handheld, lightweight, field-proven design withstands harsh environments and lighting conditions
