Analizor de spectru portabil 100kHz..3GHz Deviser E8000A

Cod: Deviser E8000A




Brosura produs PDF, 0.46 Mb


Descriere

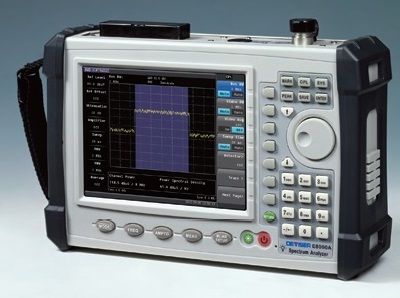

E8000A handheld spectrum analyzer is an ideal testing instrument for engineer working at the wireless base station for 2G/3G/4G, WiFi and broadcast installation and maintenance.

E8000A covers frequency range: 100 kHz ~ 3000 MHz and has tracking generator option.

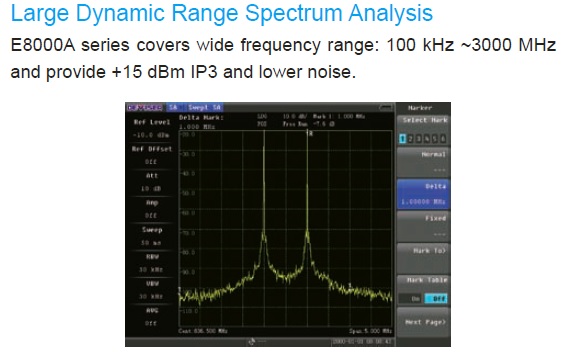

Large Dynamic Range Spectrum Analysis

E8000 series covers wide frequency range: 100 kHz ~3000 MHz and provide +15dBm IP3 and lower noise.

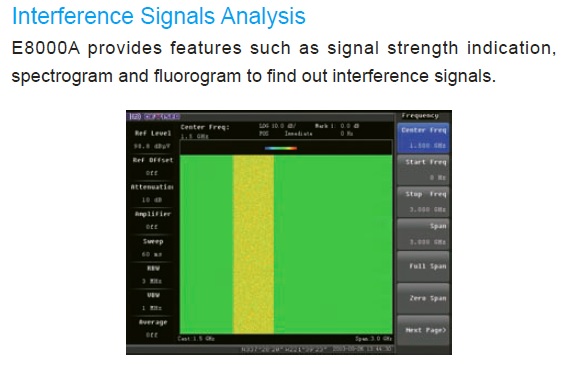

Interference Signals Analysis

 E8000A provides features such as signal strength indication, spectrogram and fluorogram to find out interference signals.

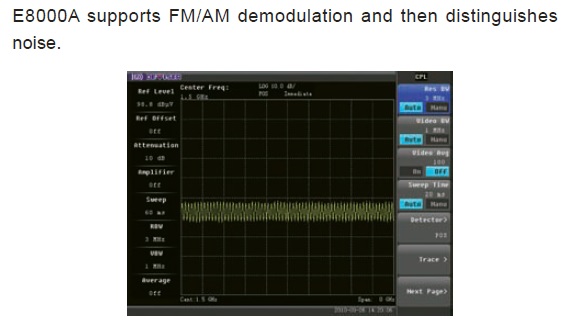

E8000A supports FM/AM demodulation and then distinguishes noise through speaker or earphone to locate interference signals.

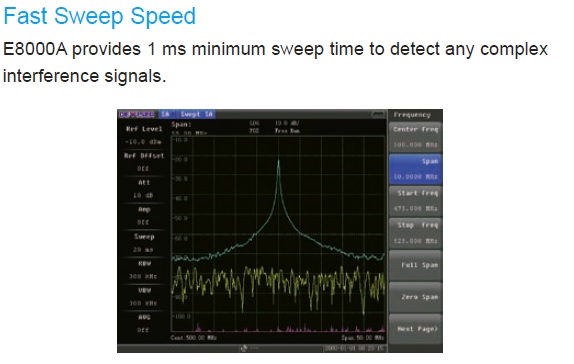

Fast Sweep Speed

 E8000A provides 1 ms minimum sweep time to detect any complex interference signals.

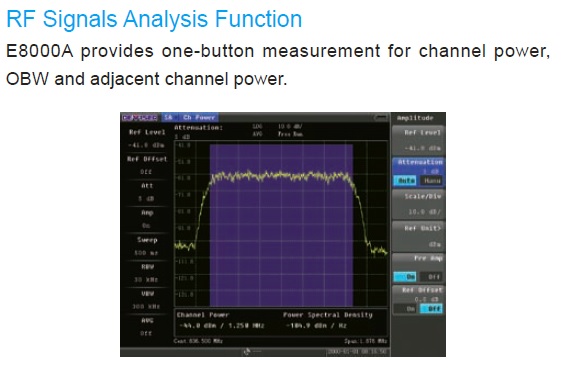

RF Signals Analysis Function

 E8000A provides one-button measurement for channel power, OBW and adjacent channel power.



GPS Receiver Option

 GPS receiver option provides location (longitude, latitude, altitude) and Universal Time (UT) information. For the E8000A series, all measurement results can be saved with location and time information.





Frequency

Frequency Range

100 kHz ~ 3000 MHz

Frequency Reference

Aging

± 1 ppm per year

Stability

± 1 ppm

Temperature Stability

± 2 ppm (0 to +50ºC)

Frequency Resolution

10 Hz

Marker Count Accuracy (S/N 25 dB, RBW/span 0.01)

Accuracy

±2 ppm, ±1 count

Counter Resolution

1 Hz

Frequency Span

Range

0 Hz (Zero Span), 1 kHz to 3000 MHz

Sweep and Trigger

Range

1 mSec to 250 sec (Span > 1 kHz)

20 µSec to 500 sec (Span = 0 Hz)

Accuracy

< ± 0.2%

Trigger Type

Free run, Single, Video, TV

Resolution Bandwidth

Range

10 Hz to 3 MHz in 1-3-10 sequence

Bandwidth Accuracy

< ± 10%

Selectivity (60 dB/3 dB Bandwidth Ratio)

< 5:1

Video Bandwidth

Range

10 Hz to 1 MHz in 1-3-10 sequence

Stability

Phase Noise

< -105 dBc/Hz @ 100 kHz offset from CW signal

< -95 dBc/Hz @ 10 kHz offset from CW signal

< -85 dBc/Hz @ 1 kHz offset from CW signal

Amplitude

Measurement Range

Displayed average noise level to furthest safe input level

Input Attenuator

Range

0 dB ~ 50 dB

Step

5 dB

Internal Preamplifier

Frequency Range

1 MHz to 3000 MHz

Gain

15 dB

Max. Safe Input

+30 dBm (peak power/input attenuation >15

dB), 100 VDC

Displayed Average Noise Level (Input Terminated, 0 dB Attenuator, RBW=100 Hz, VBW=3 Hz, Sample Detector)

Pre-amplifier OFF (Typical)

< -130 dBm  1 MHz ~ 1 GHz

< -126 dBm  1 GHz ~ 3 GHz

Pre-amplifier ON (Typical)

< -145 dBm          1 MHz ~ 1 GHz

< -141 dBm  1 GHz ~ 3 GHz

Spurious Responses

Second Harmonic

< -70 dBc for -20 dBm signal at input mixer

TOI

>+15 dBm (two -20 dBm signals at input mixer with =1 MHz separation and att=0)

Residual Responses (Input Terminated and 0 dB Attenuator)

< -85 dBm 1 MHz to 3000 MHz

Display Range

Log Scale

0.1 to 1 dB/div in 0.1 dB step 1 to 40 dB/div in

1 dB step

Linear Scale

10 divisions

Scale Units

dBm, dBmV, dBµV, mV

Marker Readout Resolution

0.03 dB for log scale

0.03% of ref level for linear scale

Traces

3 traces

Trace Detector

Sample, Posi-peak, Neg-peak, Normal, Average

Marker Functions

Peak, Next peak, Marker to center, Marker to ref, etc.

Marker Display

Normal, Delta, Fix marker & Frequency counter

Reference Level

-130 dBm to +30 dBm

Level Accuracy

< ± 1 dB @ +25ºC (Typical)

Input/Output

RF Input

Input

N connector

Input Impedance

 50 O

USB Port

USB 2.0 port and USB 1.1 port

LAN Port

10 M / 100 M RJ45

TG Out

Output

N connector

Frequency Range

10 MHz to 3000 MHz

Phase Noise

< -70 dBc/Hz @ 10 kHz

Level Range

-30 dBm to 0 dBm

Level Resolution

1 dB

Level Accuracy

± 2 dB

Harmonic Distortion

< -20 dBc

Non-Harmonic Distortion

< -30 dBc

Output Impedance

50 O

Power Specifications

Battery Type

11.1V @ 5.2Ah Lithium-lon

Charge Time

< 5 Hours

Operating Time

> 3.5 Hours

AC Adapter

19 V DC @ 3.42 A

Other Specifications

Operating Temperature

-10 ºC to +55 ºC

Storage Temperature

-30 ºC to +80 ºC

Dimension (W x H x D)

258 mm x 173 mm x 74 mm

Weight (With Battery)

<2.2 kg

Display Type

6.5 inch TFT color LCD

Display Resolution

640 x 480 pixels

Language

Chinese, English
