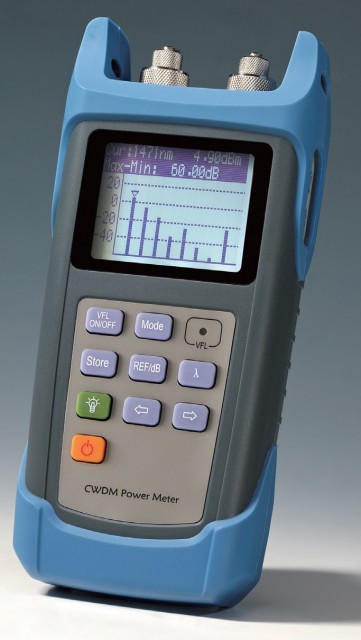

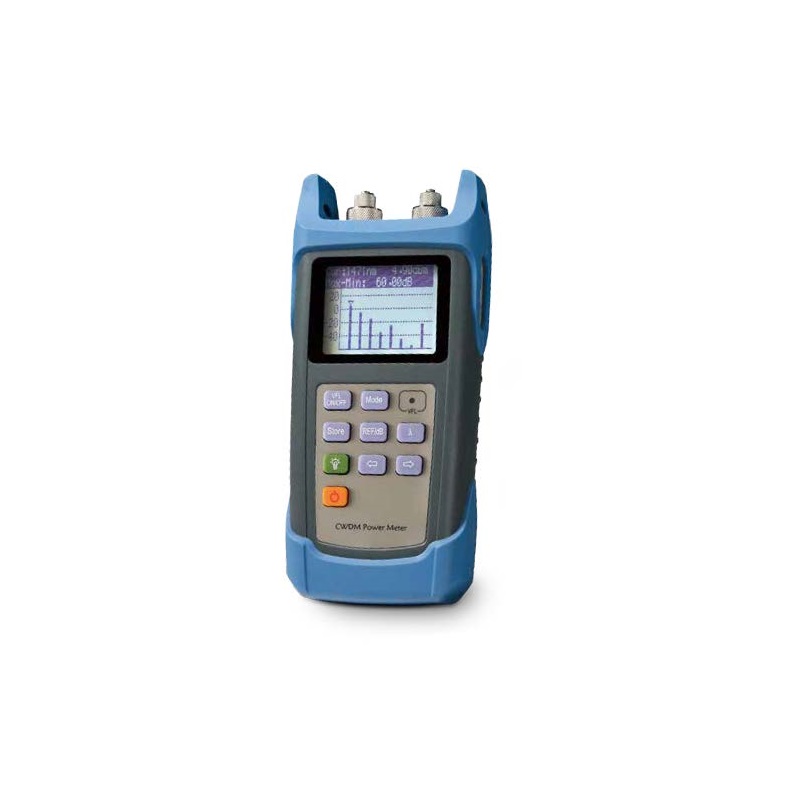

Deviser AE500 CWDM Channel Analyzer

Cod: Deviser AE500




Brosura produs PDF, 1.2 Mb


Descriere

The AE500 is a compact CWDM channel analyzer for installing and maintaining CWDM networks. This rugged, palm-sized unit can simultaneously verify 8 CWDM channels between the wavelengths of 1271 nm and 1611 nm, simplifying and speeding up verification of CWDM power levels and wavelengths.



Features:

  • Analyze 8 CWDM channels simultaneously
  • All day testing with field replaceable batteries
  • Create test profiles for general functions such as relative power measurement
  • Store up to 400 groups of data, and manage results with Toolbox management software
