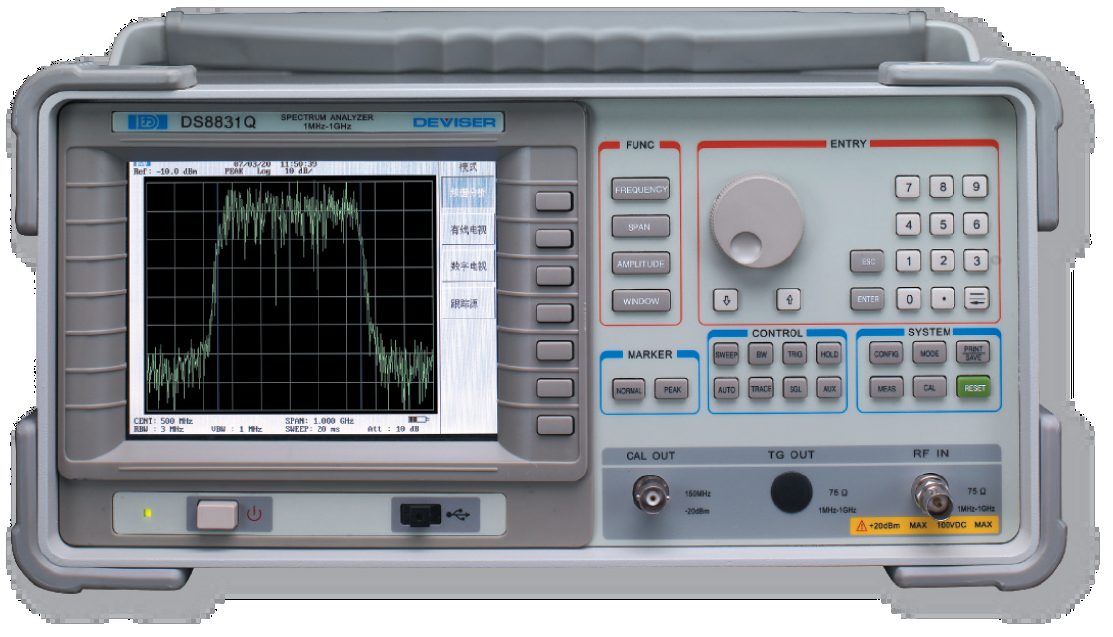

Analizor de spectru TV si CATV 1 MHz..1 GHz Deviser DS8831

Cod: Deviser DS8831A/ DS8831B/ DS8831Q/ DS8831T




Brosura produs PDF, 2.49 Mb


Descriere

  • 1 MHz.. 1 GHz Frequency Range
  • 50 or 75 ohm input impedance
  • Portable design with DSP technology
  • Design QAM analysis, spectrum analysis and CATV analysis in one unit
  • QAM analysis: MER, BER, EVM, Constellation Diagram etc.
  • Support QAM/ITU-T J.83 ANNEX A/B/C/D and QPSK, COFDM
  • CATV analysis: CSO/CTB, C/N, HUM, DoM, LEVEL, Cross-Modulation, Auto and Limit Test etc.
  • Video Analysis Function: Differential Phase/Gain, Chrominanceto-Luminance Delay Inequality

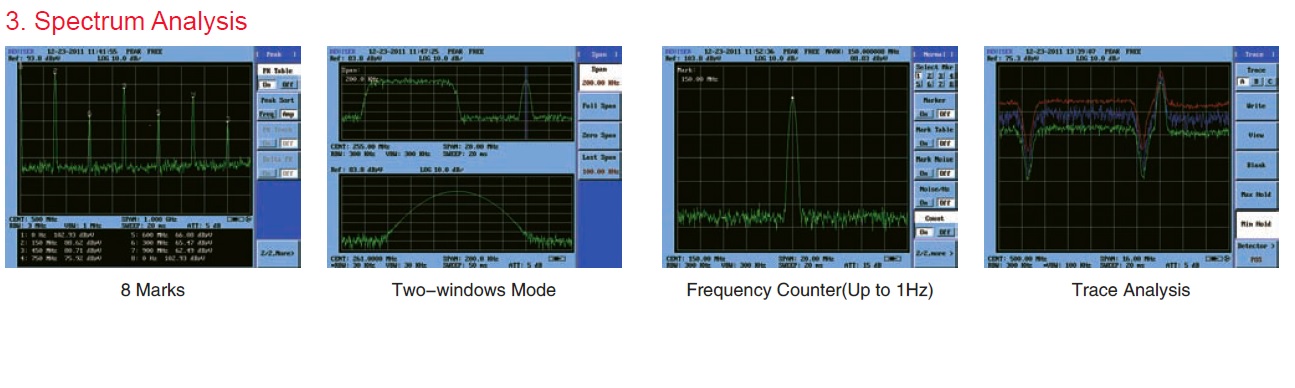

  • Powerful Spectrum Analysis
  • 6.4" color TFT LCD and USB, LAN Interface

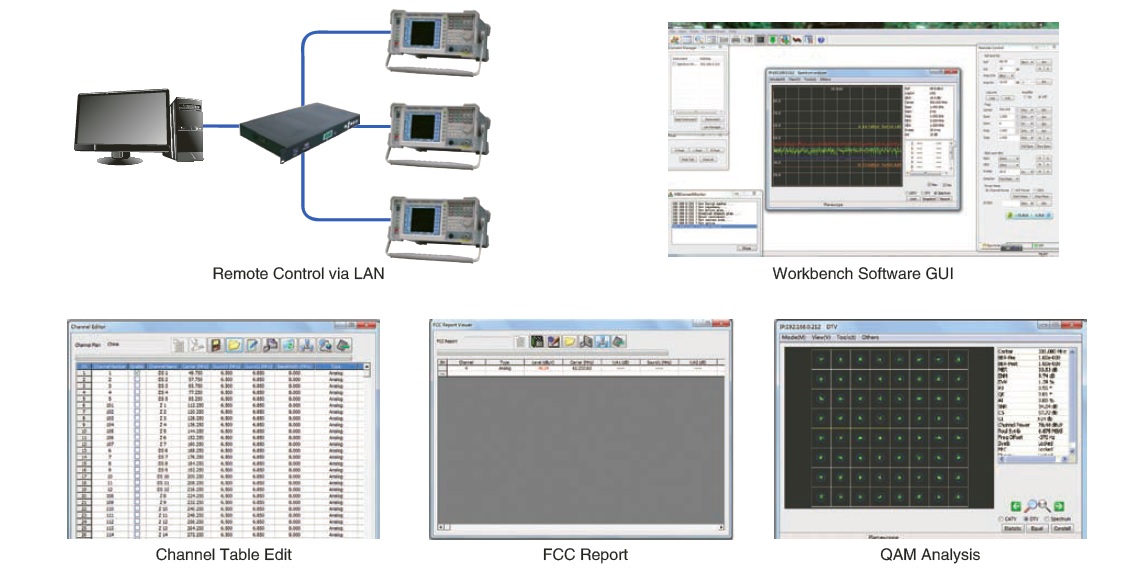

  • Remote control via LAN port
  • Mainly for analyzing broadcasting and communication signal
  • Double scan windows
  • Fast sweep and peak hold function
  • Battery and AC power supply



  Model

Description

DS8831A

Standard Spectrum Analyzer 50O

DS8831B

Spectrum Analyzer 75Owith CATV

DS8831Q

Spectrum Analyzer with CATV, DVB-C

DS8831T

Spectrum Analyzer with CATV, DVB-C, DTMB















Optiuni recomandate

Option

Tracking Generator

1000MHz/3000MHz Tracking Signal Source

Workbench

PC management software

Line Selection in CATV

Video Analysis including Differential Phase, Differential Gain, Chrominance-to-Luminance Delay Inequality and Row Triggering function in Spectrum

Narrowband RBW

RBW to 300Hz 100H30Hz   VBW to 1Hz

Video output converter

Converting the VGA signal to RCA and S-Video output

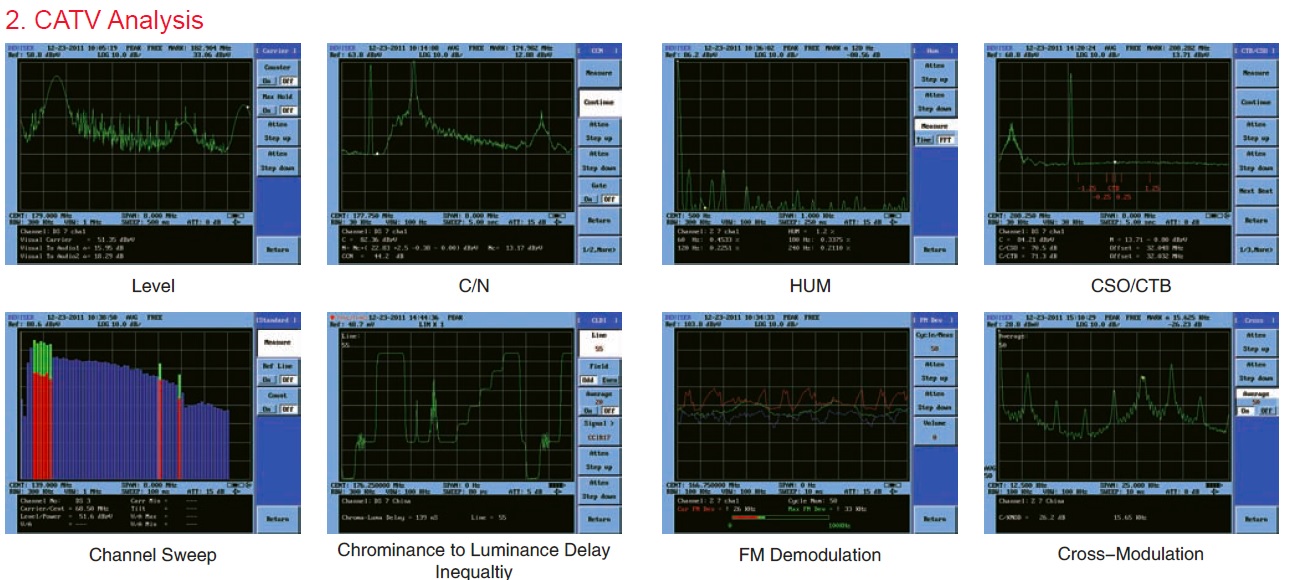

CATV Measurement

CATV Indexes

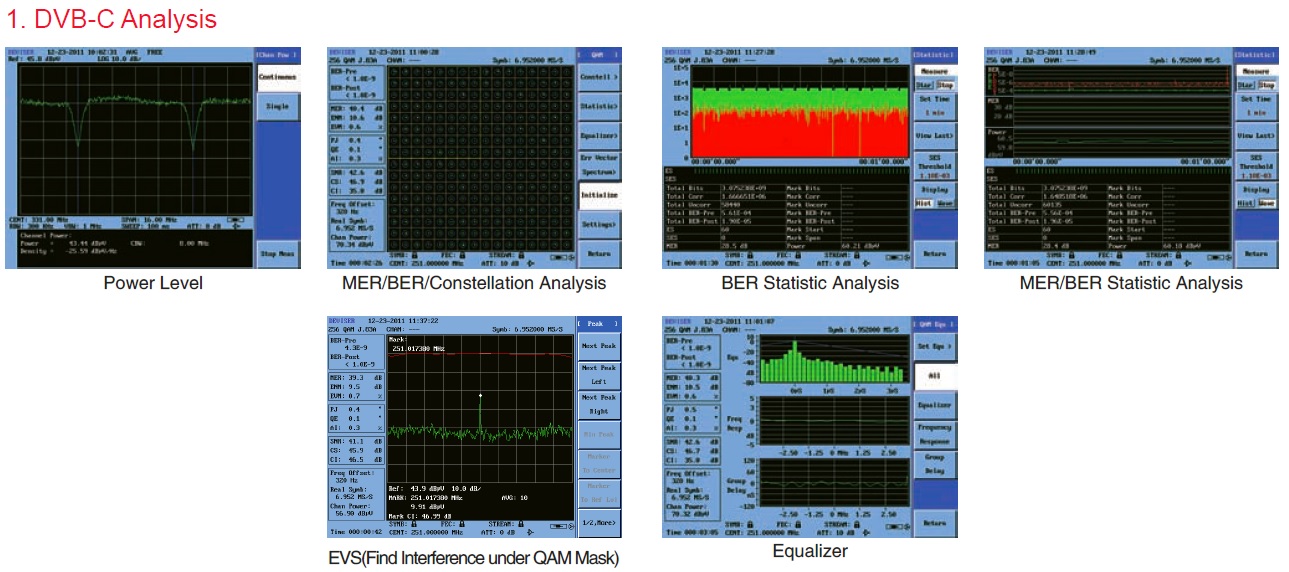

DVB-C Measurement

DVB-C Indexes

DTMB Measurement

DTMB Indexes
