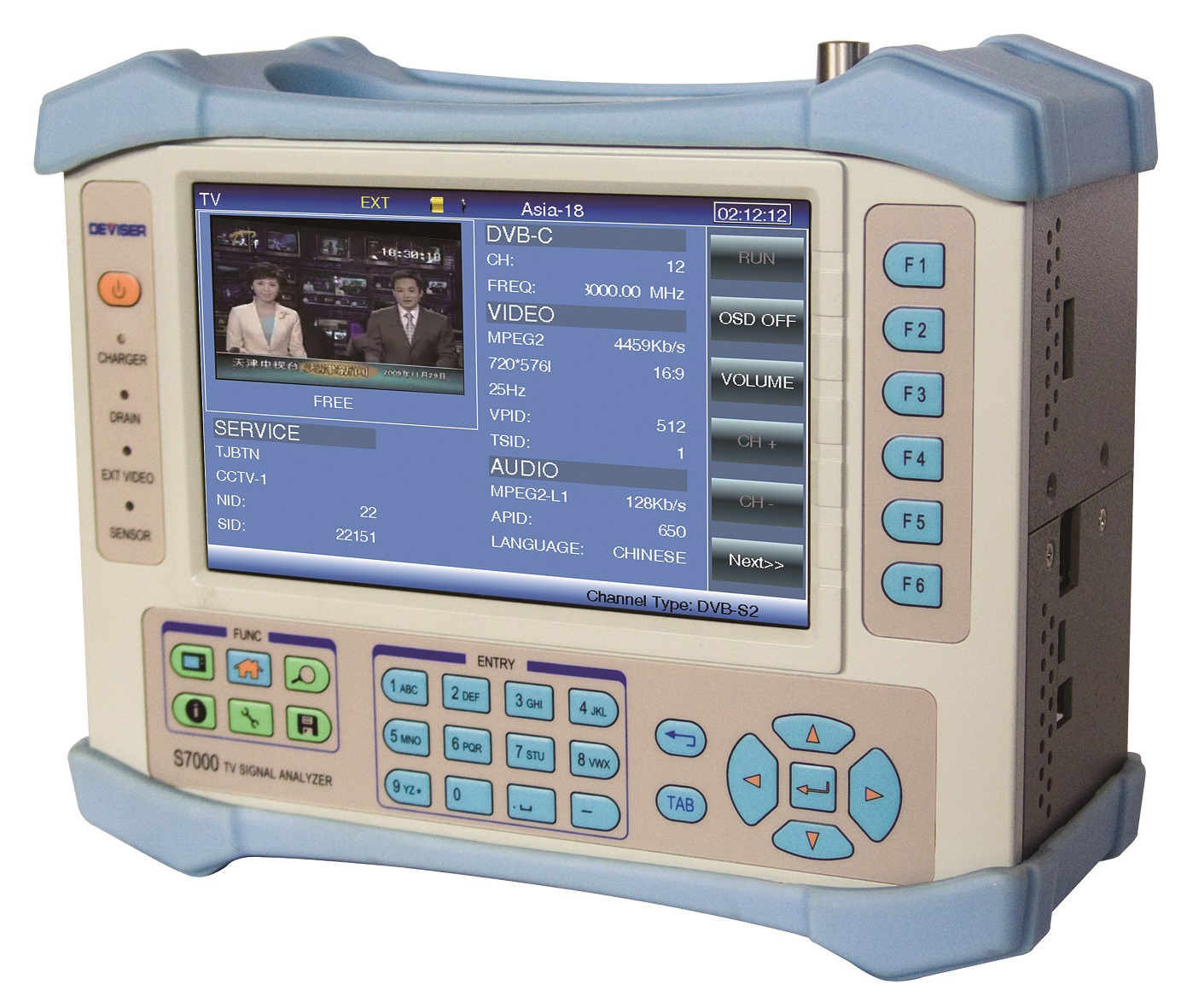

Analizor TV Analog Digital Satelit DVB-C/T/H/T2/S/S2 Deviser S7000

Cod: Deviser S7000




Brosura produs PDF, 4.01 Mb


Descriere

All IN ONE

Digital TV Analyzer : DVB-C/T/H/T2/S/S2

Video decoder: MPEG2/4/H.264, SD/HD

Handheld TS Analyzer

Spectrum Analyzer

GPS



  • All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
  • Digital/Analog TV and Satellite TV analysis
  • MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
  • Fast spectrum analysis with 5 ~ 2150 MHz frequency span
  • DSP Technology to support different Video decoding: MPEG-2 , MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/SECAM color system
  • Support SD&HD Video format
  • DVB-CI module (Conditional Access) for encrypted channels
  • TS-ASI input and output
  • TS record and TS replay
  • IPTV analysis option
  • GPS option
  • HDMI, LAN and USB interface
  • Easy to use
  • High resolution 7" TFT LCD with bright display for indoors and outdoors use
  • W245×H194×L105, light weight.
  • Working time >5 hours (battery)



Module

Configuration

S7000

DVB-C/T/H/S/S2/8VSB

Options

CI/TS analyzer/GPS/DVB-T2/DTMB/IPTV





TV Monitoring
S7000 provides analog and digital TV monitoring.  It supports different video decoding with DSP Technology: MPEG-2, MPEG-4 and H.264 for 1080i, 720p and 576i, and supports PAL/NTSC/SECAM color system. It supports SD&HD video format and CAM module (Conditional Access) for encrypted channels.



Friendly GUI and Easy to Use
S7000 has windows style main menu. It is very easy to operate the analyzer with navigation keyboard, even without the operate manual.



Spectrum Measurement

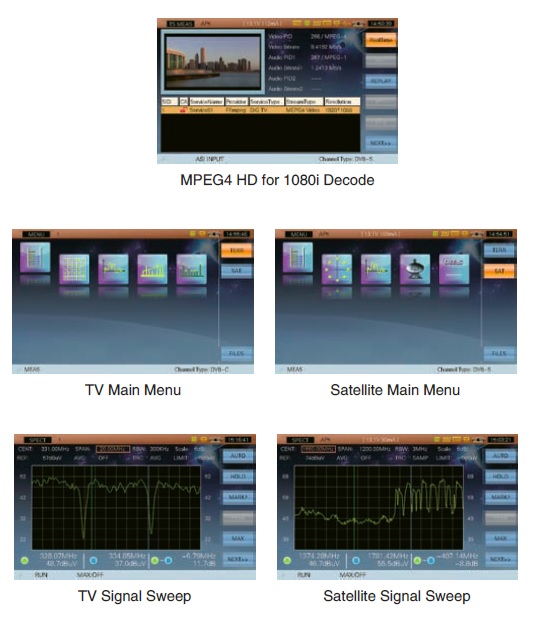

S7000 has spectrum analysis function. The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150 MHz ).



DVB-S/S2 Signal Analysis

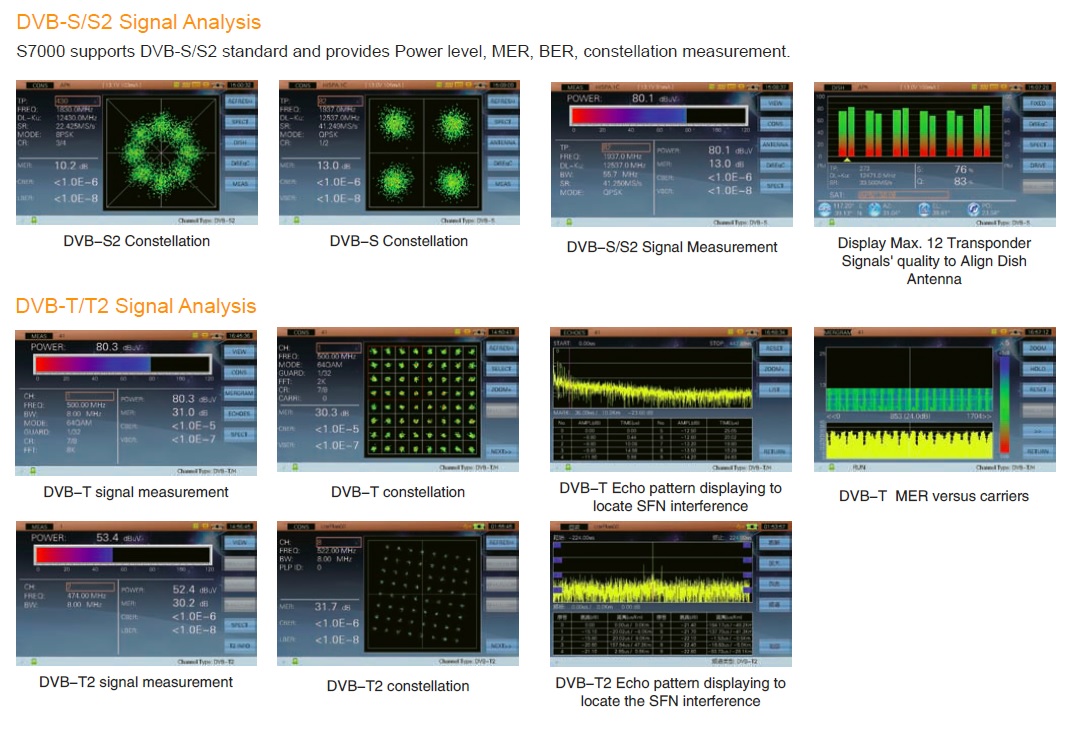

S7000 supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement.



DVB-T/T2 Signal Analysis



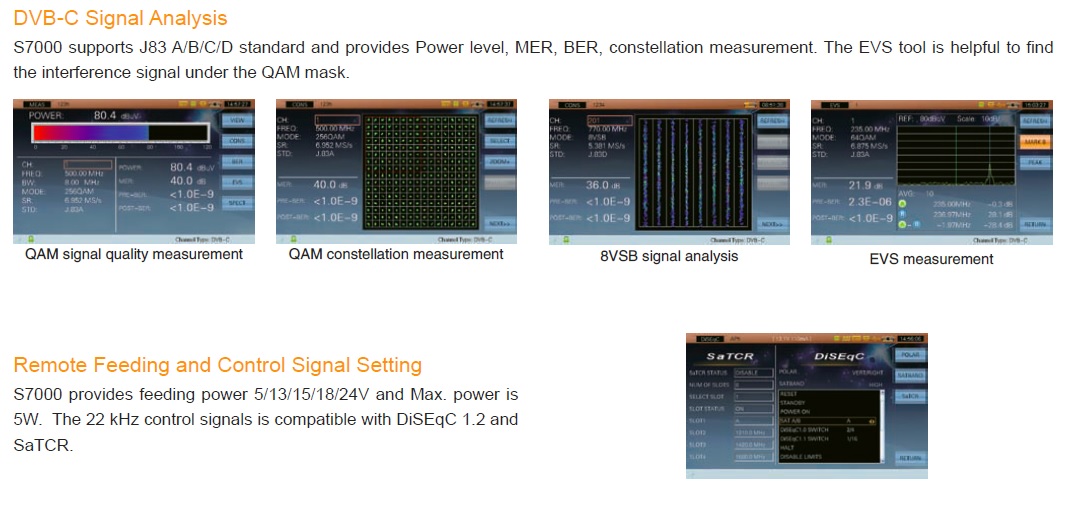

DVB-C Signal Analysis
S7000 supports J83 A/B/C/D standard and provides Power level, MER, BER, constellation measurement. The EVS tool is helpful to find the interference signal under the QAM mask.



Remote Feeding and Control Signal Setting
S7000 provides feeding power 5/13/15/18/21V and Max. power is 5W.  The 22 kHz control signals is compatible with DiSEqC 1.2 and SaTCR.



TS Analysis and Monitor

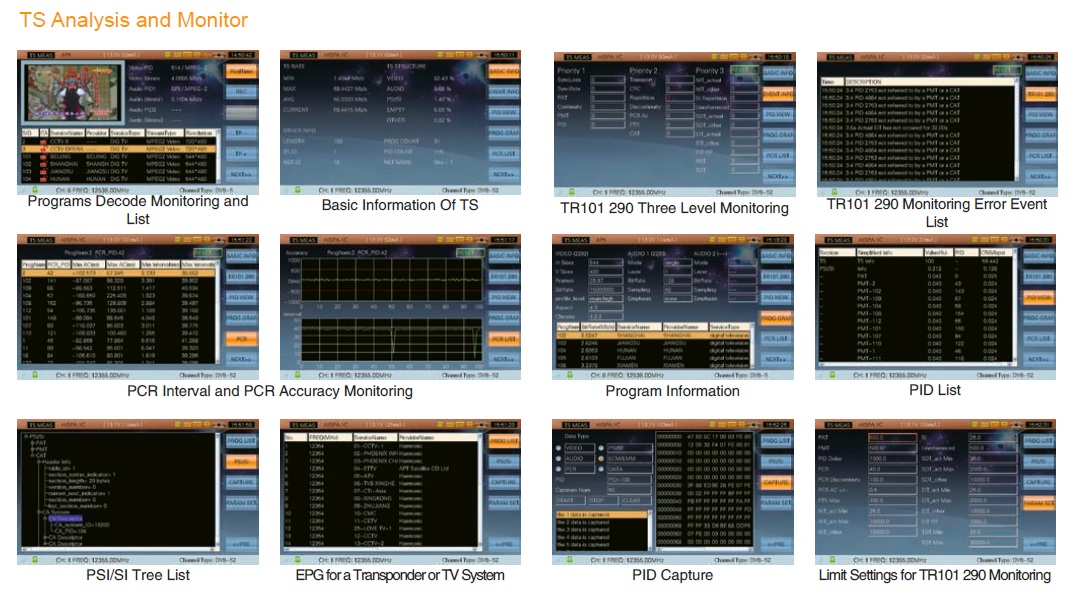

S7000 is a handheld TS analyzer. It provides TR101 290 3 level monitoring and list PSI/SI and program PID of transport stream. S7000 also lists the details of all programs running in a TV network or a transponder. The TS is from RF signal or TS-ASI input. S7000 has 8GB hard disk to save TS file and can replay and analysis TS file.





Spectrum Analyzer

Frequency Range

5 MHz ~ 1050 MHz (TV), 950 MHz ~ 2150 MHz (Satellite)

Frequency Span

1 MHz ~ 1045 MHz (TV), 10 MHz ~ 1200 MHz(Satellite)

Frquency Step

10 kHz (TV), 1 MHz (Satellite)

Resolution Bandwidth (-3 dB)

30 kHz, 100 kHz, 300 kHz, 1 MHz,

3 MHz (TV) 1 MHz, 3 MHz Auto Select (Satellite)

Level Measurement Range

10 dBµV ~ 120 dBµV (TV) 30 dBµV ~ 120 dBµV (Satellite)

Accuracy Of Measurements

<1.5 dB

Measurement Detector

Peak, sample, AVG (TV) , No Select for Satellite

Reference Level

30 dBµV ~ 120 dBµV

Markers

2 (TV) 1 (Satellite)

Analogue TV Measurement

Standards

B/G, I, D/K, L/L´, M/N

Colour Standards

PAL, SECAM, NTSC

Frequency Step

10 kHz

Hum Measurement

> 50dB

C/N

> 50dB

Level Measurement Range

30 dBµV ~ 120 dBµV

Accuracy Of Measurements

< 1.5 dB

Level Resolution

0.1 dB

Digital CATV Measurement

Modulation Type

16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C

Symbol Rate

4.0 MS/s ~ 7.0 MS/s

Power Level Range

30 dBµV ~ 110 dBµV

Level Resolution

0.1 dB

Power Level Accuarcy

±1.5 dB(C/N > 20 dB)

MER Measurement

~40 dB

MER Accuracy

±2.0 dB

BER

1E-3 ~ 1E-9

Constellation

v

DVB-T/H Measurement

Modulation Type

QPSK, 16 QAM, 64 QAM

Power Level Range

25 dBµV ~ 110 dBµV

Level Resolution

0.1 dB

Power Level Accuarcy

±1.5 dB (C/N >20 dB)

MER Measurement

> 30 dB

MER Accuracy

±2.0 dB

CBER/VBER

v

Constellation

v

MER Versus Carriers

v

Echo Pattern

v

DVB-T2 Measurement

Modulation Type

QPSK, 16 QAM, 64 QAM, 256QAM

Power Level Range

25 dBµV ~ 110dBµV

Level Resolution

0.1dB

Power Level Accuarcy

±1.5 dB(C/N >20 dB)

MER Measurement

>30 dB

MER Accuracy

±2.0 dB

CBER/LBER

v

Constellation

v

Echo Pattern

v

ATSC Measurement

Modulation Type

8 VSB

Power Level Range

25 dBµV ~ 110 dBµV

Level Resolution

0.1 dB

Power Level Accuarcy

±1.5 dB(C/N >20 dB)

MER Measurement

>35 dB

MER Accuracy

±2.0 dB

BER

v

Constellation

v

DTMB Measurement

Carriers

C=1, 3780

Power Level Range

25 dBµV ~ 110 dBµV

Level Resolution

0.1 dB

Power Level Accuarcy

±1.5 dB (C/N >20dB)

MER Measurement

>28 dB

MER Accuracy

±2.0 dB

BER

v

Constellation

v

Echo Pattern

v

DVB-S/S2 Measurement



Modulation Type

QPSK, 8PSK

Symbol Rate

2 - 45 MS/s (DVB-S)

1 - 45 MS/s (QPSK DVB-S2)

1 - 45 MS/s (8PSK DVB-S2)

Power Level Range

40 - 110 dBµV

Level Resolution
