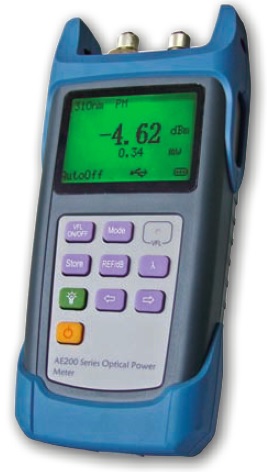

Powermetru fibra optica Deviser AE200

Cod: Deviser AE200




Brosura produs PDF, 0.42 Mb

Descriere

AE Series OPM is an ideal testing instrument for fiber network installation, debugging and maintenance in optical network, CATV and FTTX field. It is a handset with high accuracy, low power consumption and easy to carry.  It also supports vision optical source and automatic wavelength and frequency identification.



  • Up to 50 hours working time with 3 5AA rechargeable batteries
  • VFL
  • Auto shutdown and self-calibration function
  • USB Interface and toolbox software







AE200A

AE200B

AE220

AE260

Accuracy

±0.23 dB (±5%)

±0.17 dB(±3%)

Optical Detector

InGaAs

InGaAs F2000 µm

InGaAs

Dynamic Range

-43 dBm ~ +25 dBm

-70 dBm ~ +6 dBm

Linearity

0.07 dB / 10 dB

Resolution

0.01 dBm, mW, µW, nW

Wavelength

850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1610nm

650nm VFL

Power 1 mW(3, 5, 10 mW optional)

Connector

FCSCST adjustable

Operating Temperature

-10 ? ~ +60 ?

Work Time

>70 Hours (backlight off)

Dimension

185 mm × 85 mm × 45  mm

Weight

320 g (excluding battery)
