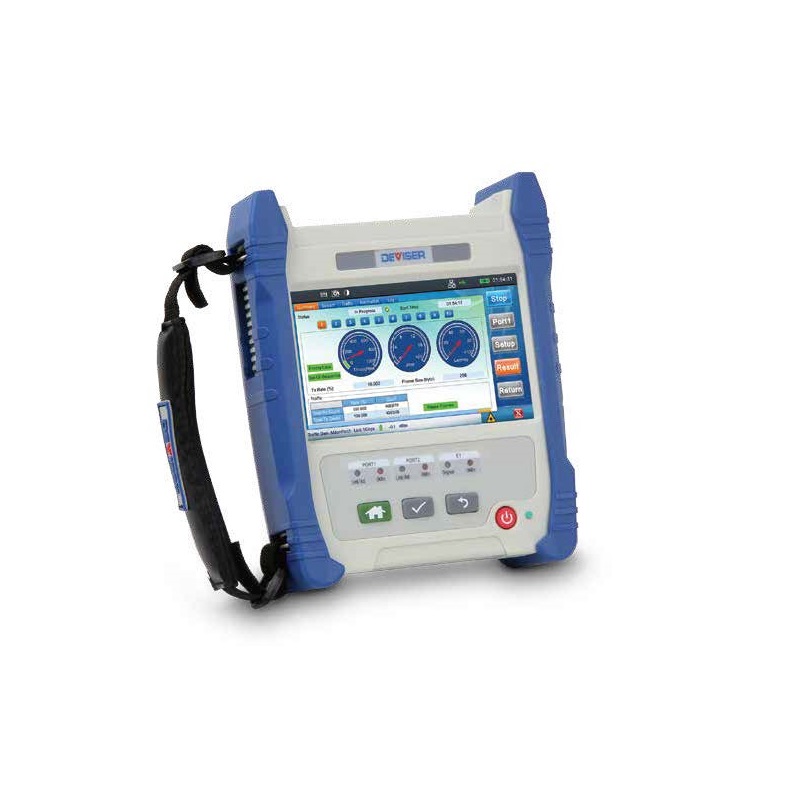

Deviser TC601E Ethernet and E1 Tester

• 1310/1550 nm Wavelength
• Up to 40dB dynamic Range
• 6.4" color TFT LCD display for improved viewing.
• Friendly operation interface and convenient one-button testing.
• High-speed signal processing, less measurement time, and faster result analysis.
• Ideal for the field: compact and lightweight, shock proof, water proof, resistant to dust and common chemicals.
• Large internal memory (up to 1000 test results).
• Lithium battery included with more than 10 hours operation time.
• Based on Linux operating system and unlimited upgrade.



• Multi-wavelength output: 1310 & 1550nm, or 1310 & 1490 & 1550nm (depending on model)
• CW mode or modulated mode: 270Hz, 1kHz, 2kHz
• 30 hours working time



• Analog TV and SC-QAM: troubleshoot typical analog interference and distortions as well as SC-QAM performance
• Time-Domain EVS Measurements: uncover interference from LTE signals under downstream QAM carriers with no service interruptions
• Characterize OFDM carrier performance and DOCSIS 3.1 cable modem performance
• 7½ Capacitive Touchscreen: with excellent touch response and 7 hours of operating time



• Designed for Ethernet systems
• Contains a main unit and a remote unit
• measures the speed and performance on CAT3, CAT5e and CAT6 cables
• according to ANSI/TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification
• Tone generator
• Two additional functions: Ping and BER Test
• Store at least 100 results
• Toolbox software to analyze the results on PC



• Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
• Test MIMO 4x4 antenna performance
• Detect signal degradation and system performance over time with trace overlay



• Simultaneous measurement of all EPON signal(1310 nm, 1490 nm and 1550 nm) on the fiber
• Store up to 1800 test results, which are downloadable via USB interface.
• Pass/Warning/Fail LED indicators (12 threshold values).
• Compact, Waterproof & shockproof.
• the best choice for your business and maintenance of FTTX



• Smart Loopback at Layer 1/2/3/4
• Cable diagnostics
• Optical power measurement
• IP Tools: Ping, TraceRoute, IPv4 and



• Analyze 18 wavelengths (ranging from 1271 ~ 1611nm) simultaneously
• All-day testing with 5 hours' continuous operation
• With interchangeable connectors, switch easily among FC / SC / LC / ST
• View measurement results in list or graph format
• Store up to 1000 data groups; manage them with Toolbox PC software



• ideal return path generator for HFC system installation and maintenance
• Wide frequency covers return path: 5MHz-120MHz
• QPSK, 16/64/256QAM
• Large level dynamic range
• Multi-function module: RF, Pulse, Sweep
• Parameter setup memory



• 5½ (800x480) color LCD touchscreen
• 1000Base-X optical port, 10/100/1000Base-T electrical port x1
• Integrates multiple software tools for field measurement, ensuring high cost-performance
• Professional PDF and CSV data report generation
• Rechargeable lithium battery powers continuous use
