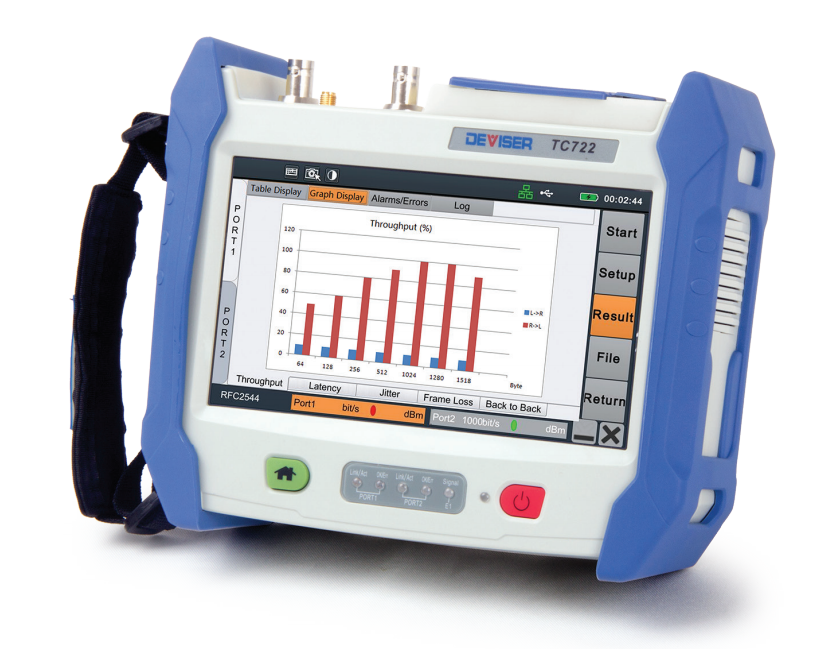

Deviser TC722 All-in-One 10G Transport Tester

Cod: Deviser TC722




Brosura produs PDF, 2.37 Mb

Descriere

The TC722 is an all-in-one Transport Layer Tester released by Deviser to support full protocol testing at rates up to 10Gbps. The TC722 provides expert analysis for next-generation high-speed Metro and Carrier Transport networks, validating performance and connectivity while cutting OPEX and CAPEX. It is an efficient testing tool for service providers to satisfy client service level agreements (SLAs). The TC722 is ideal for any transport testing task. It is fully equipped for Ethernet performance assessment; Metro Ethernet/SONET/SDH, and Mobile Backhaul installation, activation, or maintenance; point-to-point Ethernet access deployment; online troubleshooting for real-time information flow; and more. The tester supports multiple communication protocols to meet different testing requirements, including SyncE, IEEE 1588v2, E1/T1, SDH/SONET, and OTN.



Features:

  • 7" LCD touchscreen; professional, efficient UI experience
  • Two 10GbE SFP+ ports, two 10/100/1000Base-T RJ45 ports
  • Dual ports can test different setups independently
  • Complies with RFC 2544 standard Throughput, Latency, Frame
  • Loss and Back-to-Back benchmarking
  • Complies with ITU-T Y.1564 Service Activation Methodology (SAM) up to 10 independent streams
  • Supports 3 VLAN tags (QinQ), 3 MPLS encapsulation labels, IPv6 protocol, runt and jumbo frame configuration
  • Supports Terminal and Transparent Transmission test models
  • Supports OTN, OTN-1, OTN-1e, OTN-1f, OTN-2, OTN-2e, OTN-2f test
  • Supports external synchronize clock input, SyncE and IEEE 1588v2
  • Supports optical power measurement
  • Supports remote control
  • Supports packet filtering and capturing with 512MB buffer size
