Sistem monitorizare radio banda larga 1..1000MHz Analizor spectru DS8831H cu Multiplexor RF DS1500

• Frequency Range 300KHz~1.3GHz
• 75 or 50 ohm
• Two channels, Four traces display
• Logarithm amplitude, Linearity amplitude, Phase, Group delay, Real part, Imaginary part
• Smith chart, Pole chart
• Transmission, Insertion Loss, Gain, Insertion Phase, Isolation
• Return Loss, VSWR, Impedance
• USB, parallel, RS-232 and VGA,LAN interface

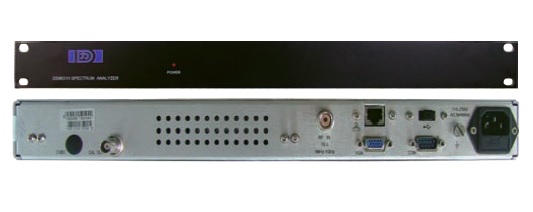

• 1U rack spectrum analyzer for remote head end monitoring
• 1 ~ 1000 MHz frequency span
• LAN connection
• Same performance as DS8831Q
• Workbench remote control software
• Cost-effective to modify network configuration

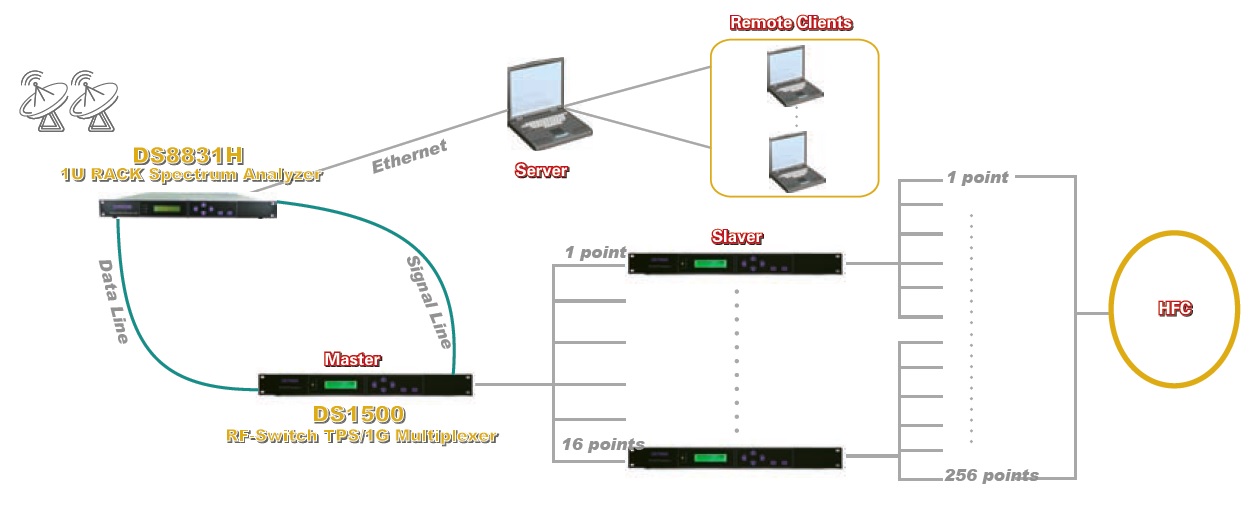

• Full 1 GHz performance RF matrix 16 x 1
• Units can be daisy chained to support up to 256 inputs



• 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1610nm Wavelengths
• 0.01 dBm Resolution
• fber network installation, debugging and maintenance in optical network, CATV and FTTX field
• Power efficient: Up to 50 hours working time with 2 Ni-MH 5AA batteries
• Cost-effective
• Pocket size



• 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1610nm Wavelengths
• 0.01 dBm Resolution
• fber network installation, debugging and maintenance in optical network, CATV and FTTX field
• Up to 50 hours working time with 3 5AA rechargeable batteries
• Visual Fault Locator
• Auto shutdown and self-calibration function
• USB Interface and toolbox software



• ISDB-TB measurement: Average Power, MER, CBER, VBER, and Constellation
• Analog TV measurement: Level, V/A, HUM and C/N
• Automatic channel plan generation; supports up to 20 custom channel plans
• Achieve faster testing and ease data interpretation with Pass/Fail auto testing



• Compatible with DVB-T/T2 and DVB-C standard
• DVB-T/T2: Comply with ETS300744 standard/ Support Power, MER, CBER and VBER
• DVB-C: Support Digital and Analog TV Measurements
• Spectrum Function (5~1000MHz)
• Easy to use



• Designed for Ethernet systems
• Contains a main unit and a remote unit
• measures the speed and performance on CAT3, CAT5e and CAT6 cables
• according to ANSI/TIA/EIA-568-B and ISO/IEC 11801 to ensure the cable qualification
• Tone generator
• Two additional functions: Ping and BER Test
• Store at least 100 results
• Toolbox software to analyze the results on PC



• 1 MHz.. 1 GHz Frequency Range
• 50 or 75 ohm input impedance
• Design QAM analysis, spectrum analysis and CATV analysis in one unit
• QAM analysis: MER, BER, EVM, Constellation Diagram etc
• Support QAM/ITU-T J.83 ANNEX A/B/C/D and QPSK, COFDM
• CATV analysis
• Battery and AC power supply



• Analog TV measurements include: Level, V/A, HUM, C/N
• Auto-generates and saves up to 20 custom channel plans from a cable drop
• Auto test with pass/fail limits speeds up tests and simplifies results interpretation



• Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
• Test MIMO 4x4 antenna performance
• Detect signal degradation and system performance over time with trace overlay
