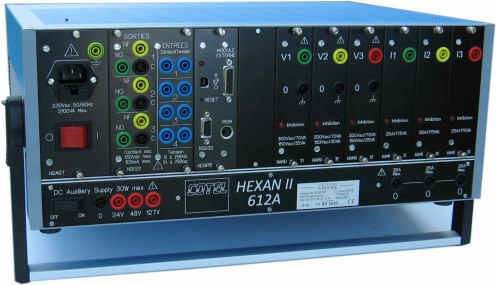

Trusa trifazata testare relee de protectie Cotel HEXAN II

Cod: Cotel HEXAN-II



Brosura produs PDF, 0.38 Mb

Descriere

  • Current (25 A/ph) & Voltage (300 V/ph)
  • Extremely versatile
  • Very user friendly
  • Run from PC OR Custom interface
  • Modular & Configurable
  • Easily portable



HEXAN uses Digital Signal Processing to combine the accuracy necessary for

testing Electronic relays (Static or Digital) with the power needed to test Electromagnetic

relays by secondary injection.

HEXAN is available in two versions :

·  HEXAN-C : with integrated command front panel in flight case type housing

·  HEXAN type II : in aluminium enclosure with handle. This test set is compact and lightweight

The HEXAN can be controlled in two ways:

* MANUALLY, using the MCM Custom Interface which displays and sets the electrical

parameters (simple & complex voltages, currents, phases, frequency…) which define a healthy or faulty

network. A scrolling menu gives access to the the various test modes : shunt, re-closer, generator

protection, and neutral offset

* By PC, using the user-friendly MANUSOFT control software which presents the operator with

a virtual manual control panel as for a typical test set, with potentiometers for



Accesorii standard

Accessories supplied with HEXAN

Power cable IEC320, USB cable, CD-ROM with Manusoft software, User guides in paper and pdf format



Optiuni recomandate

Accessories in option

Integrated Auxiliary supply 24/48/127 Vdc 30W réf HEX-ALIM

Cable kit JC03 with : 18 safety banana plug cables length 2m 2.5mm², 18 crocodile clips, 1 plastic box 420 x 210 x

180 mm.

Cables with Essailec® plug voltage and currents (consult us)

Transport bag in nylon ref HEX-HOU (for HEXAN type II only)

Heavy duty transport case (for HEXAN type II only) rugged IP54 with wheels and removable handle réf FCTYPE32B







Alte produse COTEL

TRUSA CURENT-TENSIUNE TESTAREA RELEELOR DE PROTECTIE COTEL MG 50-N

• 300A max Current
• 250V Voltage
• in-built digital measurement and control module
• Light aluminium case
• data connexions are USB and RS232


TRUSA CURENT-TENSIUNE INJECTIE SECUNDARI COTEL MG 30-N

• 125A max Current
• 250V Voltage
• Flight Case enclosure
• connexions are USB and RS232
• Time measurement


ANALIZOR INTRERUPATOARE TRIPOLARE INALTA TENSIUNE COTEL CP 4 TR

• 4 time inputs
• Integrated breaker control
• Resolution 0.1 ms
• CP 4 is a user friendly chronometer to measure the
• - Synchronisation of breaker
• - Opening time of main contact
• - Closing time of main contact


TRUSA TESTARE RELEE DE PROTECTIE SI INJECTIE CURENTI PRIMARI SI SECUNDARI COTEL MG 40S-N

• High current up to 300A for primary injection
• The easiest and fastest way to test self powered relays
• Specifically adpated ranges for self powered relays up to 20A for secondary injection
• Single commutator to test classical relays
• rugged and light weight conception
• True RMS measurement


TRUSA TRIFAZATA TESTARE RELEE DE PROTECTIE COTEL HEXAN II

• Current (25 A/ph) & Voltage (300 V/ph)
• Extremely versatile
• Very user friendly
• Run from PC OR Custom interface
• Modular & Configurable
• Easily portable


TRUSA TRIFAZATA TESTARE RELEE DE PROTECTIE COTEL HEXAN C

• Current (25 A/ph) & Voltage (300 V/ph)
• Extremely versatile
• Very user friendly
• Run from PC OR integrated Custom interface
• Modular & Configurable
• Rugged and portable


TRUSA TESTARE RELEE DE PROTECTIE COTEL SMARTCASE

• 250 Aac Current Generator
• 300 Vac Voltage Generator
• 330 Vdc Voltage Generator
• Frequency generator Range : 40 to 70 Hz, Resolution : 0.01 Hz
• Phase shift Range: -180° / +180° or 0° / 360°
• Digital Timer


TRUSA CRONOMETRU TESTARE INTRERUPATOARE COTEL CP 1-N

• 2 Inputs voltage or dry contacts configurable(11 to 250 Vdc/ 35 to 250 Vac)
• inputs are isolated from one another and relative to the earth . Insulation 750Vac/1000Vdc
• Connection on 4 mm safety sockets..
• Time measurements from 1ms to 774.999s
• Accuracy : +-1 ms +-0.02% of the value
• Protected with varistor and fuse


TRUSA CURENT REGLABIL INJECTIE CURENTI PRIMARI 4000A COTEL VE 2000-N

• High current test set up to 4000 A (PCITS)
• Nominal power available on output : 6 kVA
• Maximum power available on output: 15 kVA
• 2 high current outputs on 3V and 6V
• Continuously variable current from 0 to 4000A
• Rugged design in FLIGHT CASE with wheels
• True RMS current measurement
• Multi-function digital timing system
• Ratio and phase shift of CT


TRUSA INJECTIE CURENTI PRIMARI 1300A COTEL MCF 750-N

• High current test set up to 1300A
• 2 outputs with high current 3V(1300A) et 5V(750A)
• Low ranges to inject current up to 32A
• Injection set compact and rugged
• True RMS measurement
• Voltage generator up to 250Vac
• Measurement of ratio and direction of current transformer
