2 Inputs voltage or dry contacts configurable(11 to 250 Vdc/ 35 to 250 Vac)
inputs are isolated from one another and relative to the earth . Insulation 750Vac/1000Vdc
Connection on 4 mm safety sockets..
Time measurements from 1ms to 774.999s
Accuracy : +-1 ms +-0.02% of the value
Protected with varistor and fuse

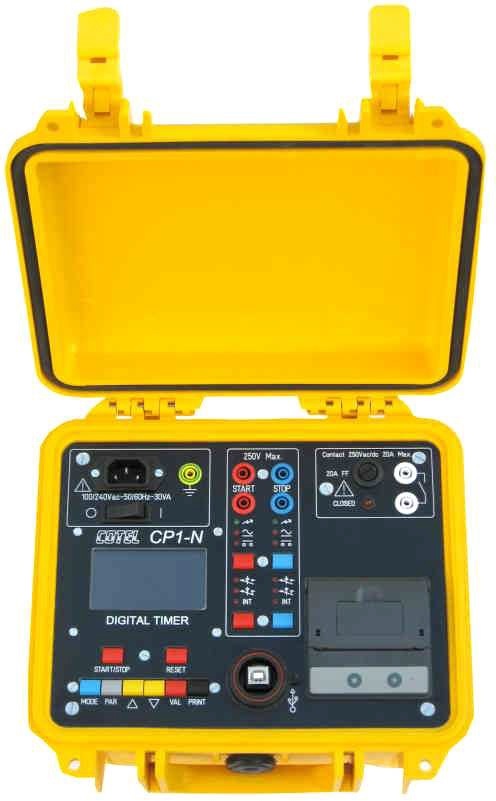

Portable timer for the measures of time and pulse cycles.

CP1-N is used to measure the opening and closing time of contacts

or presence and absence of voltage in DC or AC .

CP1-N is particularly suited for protective relays, circuit breakers

and auxiliaries relay .The timer can be used alone or in combination

with an injection testcase

Présentation

- Waterproof and dust case with a handle .

- Dimensions: 270x146x174 mm

- Weight: 3.9 kg

- Power supply 100..240Vac single phase 2 poles +earth

47..63 Hz. P = 30VA.

- Protection by varistor and fuse

Output Information : programmable contact

� 1 contact output with programmable delay from the start of the timer from 0 to 60s in

steps of 1 ms

� The contact can be used in pulse mode( from 1 to 60 s in steps of 1 ms). This mode is done

to avoid unnecessary used of breaker trip coils .The contact is also suitable for continuous

mode so the pulse mode is disabled.

� Normally Open or Normally Closed programmable Contact

� Breaking contact : 20A/250 Vac/dc. Protected with varistor and fuse on front panel.

Timer functions

� 1 start channel configurable in internal or external start ( START input is waiting NO, NF

or change of state NO+NF)

� 1 start channel configurable in internal or external stop ( STOP input is waiting NO, NF or

or change of state NO+NF)

� Time measuring and pulse

� Outputs contact NO/NF are synchronous or shifted from the start of the timer

� Measurements are stamped

� Loading specific firmware via USB

Optiuni recomandate

Options

� Thermal printer on front panel. Paper width 58mm

� Cable sets
