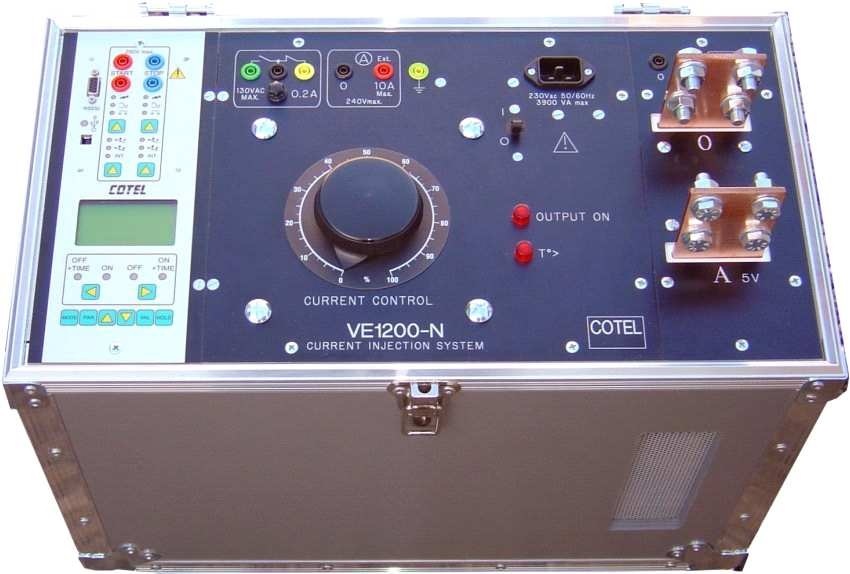

Single-phase test set for high currents. The easy to use and rugged VE 1200-N is particularly adapted to primary testing : transformer ratios, auxiliaries, bushings, circuit breakers, overcurrent relays, etc.

The VE1200-N has a built-in digital measurement and control module.

The latest version has a big graphical display for easy reading of the TRMS current and control of the injection.

OVERVIEW

- Flight Case with wheels,

- Size : 570 x 310 x 510 mm,

- Weight ± 52 kg.

SPECIFICATIONS

Power supply :

- 230 Vac 50/60 Hz.

Protection :

Supply and generator by circuit breakers and electronic control.

Generator :

Single generator configured for current three ranges : 1A, 15A and 2000A.

The output current can be adjusted to

650A for 15 minutes

1000A for 5 mn

2000A for 30 seconds.

DIGITAL DISPLAY

The new control enables recording of trip time, threshold and CT ratio in an internal

FLASH memory. These data can be downloaded to a computer with windows® XP/2000/VISTA.

The data connexions are USB and RS232.

Internal ammeter :

- 2 ranges 0-200 A and 200-2000 A with automatic selection

- Precision : 1%.

External ammeter :

- 2 ranges 0-1A and 1-10A

- Precision : 0.5 %

- The external ammeter has a dedicated menu for measuring the ratio and phase shift of a Current Transformer.

Time measurement :

- Internal START/STOP trigger

- External START.STOP trigger

- free of voltage contact or AC/DC 12 to 250 V

- precision : 0.02 % +-1ms

- range measurement : 9999.999 s

Optiuni recomandate

Options

- Software to edit test reports and record data :MCF-ACQ

Set of cables :

VE1200-CA-3M-ETRI 2x 3m section 190 mm² with clamp
