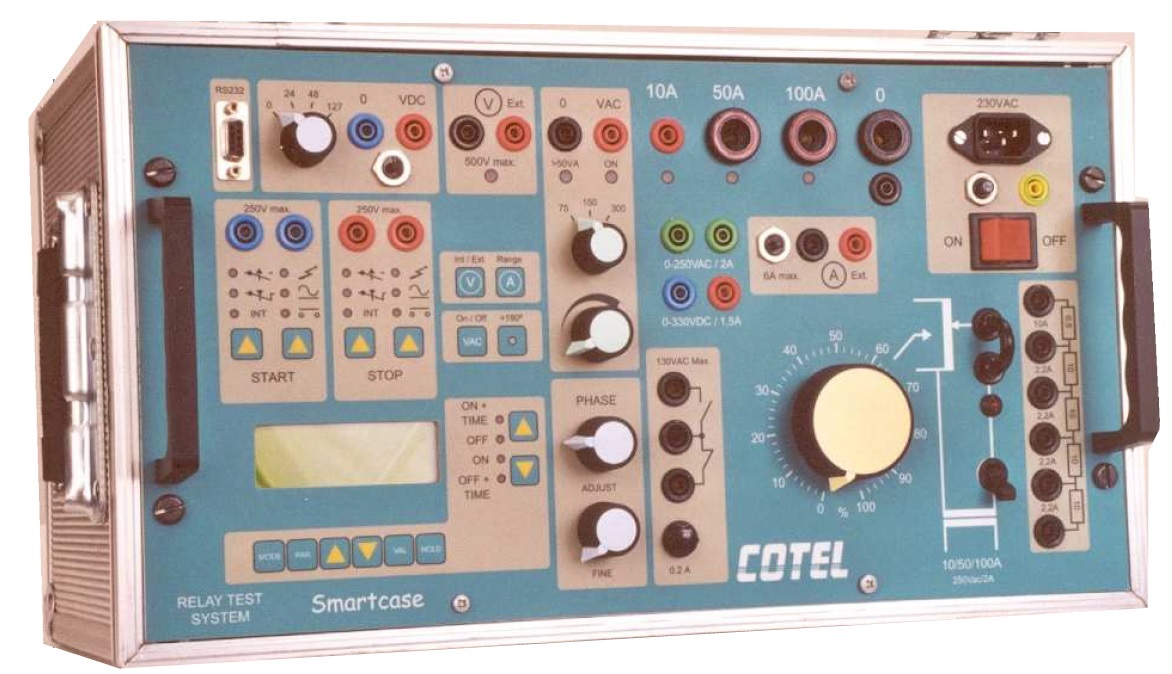

Single phase AC current and AC/DC voltage injection set. The combination of the ruggedness and ease of use of the VE range with the digital technology of the HEXAN system mean that the SMARTCASE is a good compromise between digital and analogue technologies. The design

of the SMARTCASE means that it is the ideal tool for systematic field testing of over and under voltage, current and frequency relays in addition to wattmeter and impedance relays. The alphanumeric display and menu control clearly indicates the measurements performed.

ENCLOSURE

- Flight case style.

- Dimension : 43 x 23 x 23 cm

- Weight : 18 kg.

SPECIFICATIONS

Main Supply

- 230V 50/60 Hz

Maximum power : 1000 VA.

Protection

- Main supply and generator by circuit breakers.

Generators

One main generator supplying current to 250 A, Voltage to 250 Vac or 330 Vdc

One voltage generator phase adjustable compared to the main generator : 300 V

Current generator : 4 ranges 2 A, 10 A, 50 A, 100 A

Voltage output : 250 VAC 2 A or 330 VDC 1.5 A

Voltage and frequency generator : 3 ranges 75 V, 150 V, 300 V 50 VA

Auxiliary supply : 3 voltages 24 V, 48 V, 127 V DC 50 W

Measurements

Digital module covering: internal or external timer, frequency meter, voltmeter and ammeter

Digital Timer

- Accuracy : 0.02 % ± 1 ms

- measurement range : 27599.999 s

Functions :

- internal or external Start/Stop

- Cycle measurement (e.g. automatic recloser)

External stop signals: volt-free contacts or voltages 24 V/250 V AC or 5 V/250 VDC.

- Output by volt-free contacts with programmable

delay

Internal digital ammeter

- Range 25 A, 100 A and 250A

- External : 6 A AC/DC for CT ratio or differential

current

- Accuracy : 1 %.

Digital voltmeter (internal or external)

- Automatic ranges 150 V, 500 V

- Accuracy : 1 %.

Frequency generator

Range : 40 to 70 Hz

Resolution : 0.01 Hz

Phase shift

Range: -180° / +180° or 0° / 360°
