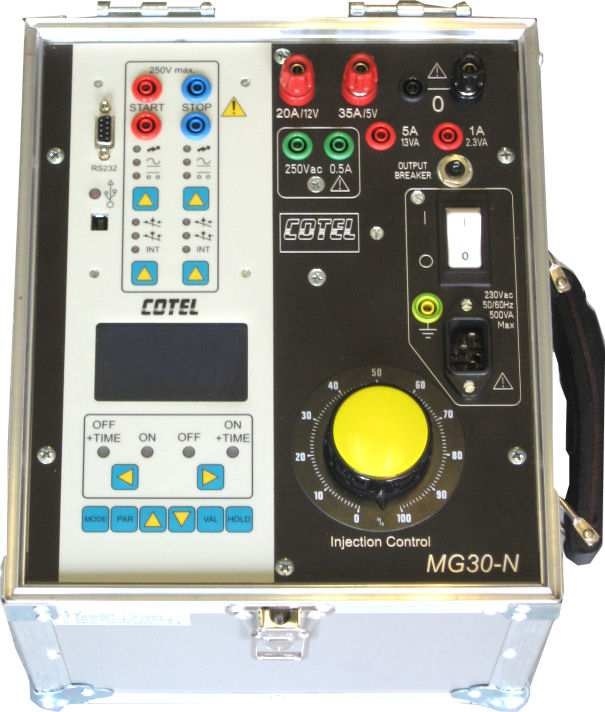

Trusa curent-tensiune injectie secundari Cotel MG 30-N

Cod: Cotel MG 30-N



Brosura produs PDF, 1.46 Mb

Descriere



125A max

250V





The MG 30-N is a rugged and powerful injection set which is especially

suited for testing over or under current or voltage relays. It is also suitable

for testing chneider Statimax type relays which are powered from the measurement

connection.

This instrument has one generator which serves both for current and

voltage, and a digital measurement and recording module with a large graphic

display. This enables measurement of the true RMS value of the current and

offers advanced timing and injection control functions.



OVERVIEW

- Flight Case enclosure

- Dim. L x H x P 260 x 290 x 270 mm

- Weight : 9 kg.



CARACTÉRISTICS

Power supply :

- 230V 50/60 Hz Pmax : 500VA.



Protections :

- Power supply and generator by circuit breakerson front face



Generator :

Single continuous variable generator in current or voltage

·  35A voltage max 5V(70A/2mn, 105A/40S, 120A/20s)

·  20A voltage max 12V(40A/30s, 60A/10s)

·  0.5A voltage max250V(1A/1mn, 2A/20s)

·  5A nominal power 7,5VA(10A/15s)

·  1A nominal power 1,3VA(1.8A/2mn)



All output can be overloaded like above





DIGITAL DISPLAY

The latest controler enables recording of trip time, threshold and CT ratio in an internal

FLASH memory. These data can be downloaded to a computer with windows® 9x/NT/XP/2000/

Seven. The data connexions are USB and RS232.



Ammeter :

- 2 rangess 0-12 A and 12-125 A with automatic selection

- Precision : 1%



Time measurement :

- Internal START/STOP trigger

- External START.STOP trigger

- free of voltage contact or AC/DC 12 to 250 V

- precision : 0.02 % +-1ms

- range measurement : 9999.999



Optiuni recomandate

Options

- integrated ammeter to measure ratio and direction of current transformer : MG-Aext

- Set of cables : JC12

- Software to edit test reports and records data : MCF-ACQ
