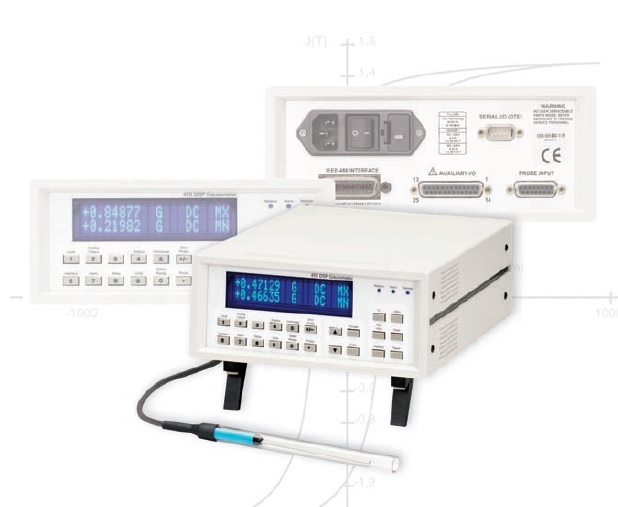

Precision laboratory Gaussmeter for determining the magnetic field strength of permanent magnets and systems
Measurement of magnetizing pulses up to 50 kHz
User-friendly measuring instrument
Mains supply
Application in laboratories and in production lines
Field and temperature measurement via the probe input
Automatic temperature compensation

Operating principle

Single-channel Gaussmeter with a resolution of 5 3/4 digits and a measuring accuracy of ± 0,05 % of the measured value. A measuring rate of 30 measurements per second. Measurement of Hall voltage created in Hall sensor which is proportional to the adjacent magnetic field.

All the functions are displayed and controlled via the front panel of the instrument. Input via keyboard, readings on a 2-line fluorescent display with alphanumerical text. Analogue outputs, a RS-232 and an IEEE interface provides high accuracy and the possibility to analyse the development of the field.

The corrected analogue output shows the exact value displayed, the non-corrected analogue output shows the field strength in real time. The Gaussmeter 455 is used in sensor technology, in automation, for controlling production processes and in the manufacture of DC motors.

The comprehensive Hall probe programme includes over 500 measuring probes. As well as conventional transverse and axial probes BROCKHAUS also supplies probes for low temperature applications and for measuring minimal magnetic fields.

Technical data:	Gaussmeter 475 DSP
Measuring range:	35 mG, 350 mG, 3.5 G, 35 G, 350 G, 3.5 kG, 35 kG, 35 kG
Measuring frequency:	DC, 1 Hz - 50 kHz
Measuring accuracy:	± 0,05 % of DC value, ± 1% of AC value ± 0,005 % of DC measuring range, ± 1% of AC measuring range
Measuring rate:	5 measurements/sec / display 30 measurements/sec / interface (data buffer sampling rates up to 1000 measurements/sec)
Selection of measuring range:	automatic or manual
Resolution:	5 3/4 digits (1 of ± 300.000)
Display:	2-line, vacuum-fluorescence
Display units:	Gauss, Tesla, Oersted, A/m
Probe type:	all single-axis laboratory probes
Temperature range:	0°C - 75°C
Analogue outputs:	real-time analogue voltage, DAC field value, DAC compensated DC field value
Interfaces:	Auxiliary, RS-232, IEEE-488
Power supply:	100 - 130 V AC / 210 - 250 V DC, 50 / 60 Hz
Functions:	MIn-Max Hold (also for pulse fields) / AC Peak / Filter / Alarm / Zero Probe / Relative Reading / Auto Range / Memory Hold / AC/DC / temperature measuring / Keylock
Accessories:	Zero chamber, power cable, operating manual
Special accessories:	probe cable in lengths 3 / 7.6 / 15.24 / 30,.49 m 305 mm zero chamber / interface cable 19" drawer

Accesorii standard

Zero chamber,
power cable,
operating manual

Optiuni recomandate

probe cable in lengths 3 / 7,6 / 15,24 / 30,49 m
305 mm zero chamber / interface cable
19" drawer

Hall probes overview Gaussmeter

Axial Probes

Model	L	D	A	Stem Material	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MMA-2502-VH	2 " ± 0.063"	0.25" ± 0.006''	0.010"	Aluminum	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MNA-1904-VH	4' ± 0.125"	0.187" ± 0.005''	0.005''	Fiberglass epoxy	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MMA-2502-VG	2" ± 0.063''	0.25" ± 0.006''	0.010"	Aluminum	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C
MNA-1904-VG	4' ± 0.125"	0.187" ± 0.005''	0.005"	Fiberglass epoxy	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Transverse Probes

Model	L	D	A	Stem Material	Frequency Range	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MMT-6J04-VH	4"± 0.125"	0.061" max	0.180"	Aluminum	DC	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MNT-4E04-VH		0.045" max	0.150''	Rigid glass epoxy	DC and 10 Hz to 400 Hz	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MMT-6J04-VG		0.061" max	0.180"	Aluminum	DC	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C
MNT-4E04-VG		0.045" max	0.180"	Rigid glass epoxy	DC and 10 Hz to 400 Hz	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Flexible Transverse Probes

Model	W	T	Active Area	Stem Material	Frequency Range	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MFT-3E03-VH	0.135" max	0.025" max	0.040" dia (approx)	Flexible Tubing	DC and 10 Hz to 400 Hz	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MFT-3E03-VG	0.135" max	0.025" max	0.040" dia (approx)	Flexible Tubing	DC and 10 Hz to 400 Hz	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Alte produse BROCKHAUS

TESLAMETRU DE LABORATOR CU MASURA CAMP MAGNETIC PE 3 CANALE BROCKHAUS GM-460

• Three-channel Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• Measurement of magnetizing pulses
• resolution of 5 3/4 digits
• Measuring range: 300 mG, 3 G, 30 G, 300 G, 3 kG, 30 kG, 300 kG
• Measuring frequency: DC, 10 Hz - 400 Hz
• Measuring accuracy: ± 0,1 % of DC value, ± 2 % of AC value, 0,005 % of measuring range

GAUSSMETRU TESLAMETRU PORTABIL MASURA CAMP MAGNETIC CU SONDA HALL BROCKHAUS BGM-101

• From DC to 10 kHz AC fields (TRUE RMS)
• Automatic probe detection
• Display in Gauss, Tesla, Oersted or A / m
• Bargraph visualization
• Hand-held device for determining magnetic field strength
• High accuracy of 0,5 % and repeatability
• Data transfer to PC via USB
• Multicolour touch TFT 320 x 240 px

GAUSSMETRU TESLAMETRU DE PRECIZIE BROCKHAUS BGM-201

• Digital precision Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• High accuracy of ± 0.05 %
• DC, AC to 30 kHz (True RMS)
• Multicolour touch TFT 800 x 480 px
• Relative, Auto Zero, Data storage,
• Data transfer to PC via USB

BOBINA HELMOLTZ MASURA MOMENT MAGNETIC BROCKHAUS HC01/HC02

• Helmholtz Coil HC01 150 mm
• Helmholtz Coil HC02 210 mm
• Measuring coil to determine magnetic moment
• Coil constant K= 0,0154cm
• Resitance 35 Ohm

HISTOGRAF TESTARE PARAMETRI MATERIALE MAGNETICE, PERMEABILITATE, ENERGIE BROCKHAUS HG200 AC/DC

• Remanence
• Coercive field strength
• Maximum energy product
• Specific hysteresis loss
• Maximum field strength
• Maximum polarization
• Effective field strength
• Permeability
• Specific apparent output
• Hysteresis display
• Form factor

HISTOGRAF MASURA DIAGRAMA HISTEREZIS MATERIALE MAGNETICE, REMANENTA, ENERGIE, CAMP, POLARIZARE MAGNETICA BROCKHAUS HG200

• Remanence
• Coercive field strength
• Maximum energy product
• Maximum field strength
• Maximum polarization
• Hysteresis display
• Measurement of all hard magnetic materials(AlNiCo, ferrite, SmCo, NdFeB, plastic composite)
• Measurement with constant flux alteration dF/dt

SONDE CU EFECT HALL MASURA CAMP MAGNETIC AXIAL SI TRANSVERSAL BROCKHAUS

• Probes for Gaussmeter:
• Axial Probes
• Transverse Probes
• Flexible Transverse Probes

FLUXMETRU CAMP MAGNETIC MASURA PARAMETRI MAGNETICI DE CALITATE A MATERIALELOR BROCKHAUS F10

• Magnetic flux
• Magnetic flux density
• Magnetic field strength
• Magnetic moment
• Magnetic potential
• Polarization
• Analogue voltage integrator for measuring all quality-related magnetic parameters
• Integrated calibration device

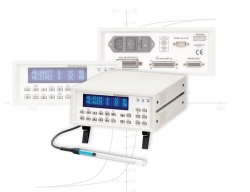

GAUSSMETRU DE LABORATOR SI PRECIZIE BROCKHAUS GM-455 DSP
