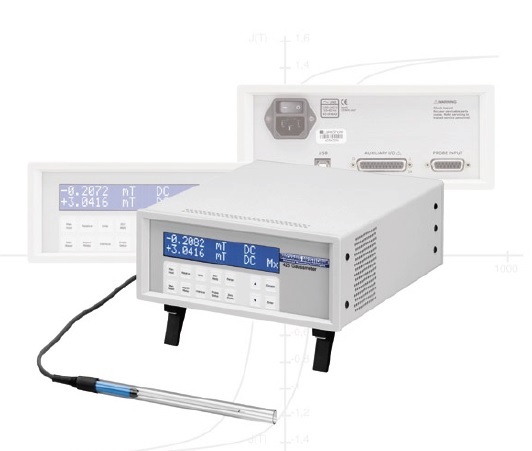

Digital laboratory Gaussmeter for determining the magneticfield strength of permanent magnets and systems
Measurement of magnetizing pulses up to 10 kHz
User-friendly measuring instrument
Mains supply
Application in laboratories and in production lines
Field and temperature measurement via the probe input

Operating principle

Single-channel Gaussmeter with a resolution of 4 � digits with filter in DC-adjustment and a measuring accuracy of ± 0.20 % of the measured value. The measuring rate is 3 measurements per second (display) and 30 measurements per second with USB interface. Measurement of Hall voltage created in Hall sensor which is proportional to the applied magnetic field.

All the functions are displayed and controlled via the front panel of the instrument. Input via keyboard, readings on a 2-line LCD display with background light. Two analogue outputs are provided. The corrected analogue output displays the exact value, the non-corrected analogue output shows the field strength in real time. Field and temperature measurements are via the probe input.

The Gaussmeter 425 DSP is used e.g. for testing magnetic materials in sensor technology and in automation. It can also function as an integrated component in controlling production processes and in the manufacture of DC motors.

Technical data:	Gaussmeter 425
Measuring mode:	measurement of Hall voltage
Measuring range:	350 mG, 3.5 G, 35 G, 350 G, 3.5 kG, 35 kG, 350 kG
Measuring frequency:	DC, AC up to 10 kHz
Measuring accuracy:	± 0,2 % of DC value, ± 2 % of AC value 0,005 % of measuring range
Repeatability:	± 0,1 %
Measuring rate:	3 measurements/sec / display 30 measurements/sec / interface
Selection of measuring range:	automatic or manual
Resolution:	4 3/4 digits
Display:	2-line, LCD lighted
Probe type:	all DSP single-axis laboratory probes
Temperature range:	5°C - 40°C
Analogue outputs:	corrected and non-corrected ± 3,5 V
Interfaces:	USB
Power supply:	100 - 240 V AC, 50 / 60 Hz
Functions:	Max Hold, Alarm with Relay, Zero Probe, Relative Reading, Auto Range, AC/DC, Keylock
Accessories:	Zero gauss chamber Terminal block Power cable USB driver CD Maual
Special accessories:	probe cable in lengths 3 / 7,6 / 15,24 / 30,49 m 305 mm zero chamber Interface cable 19" drawer

Accesorii standard

Optiuni recomandate

GAU-005002 Zero field chamber BZC-101

GAU-005004 Additional axial probe BAP-101

GAU-005005 Additional transversal probe BTP-101

GAU-005003 Aluminum hard case

GAU-005006 Probe extension cable (1 m) BPC-101

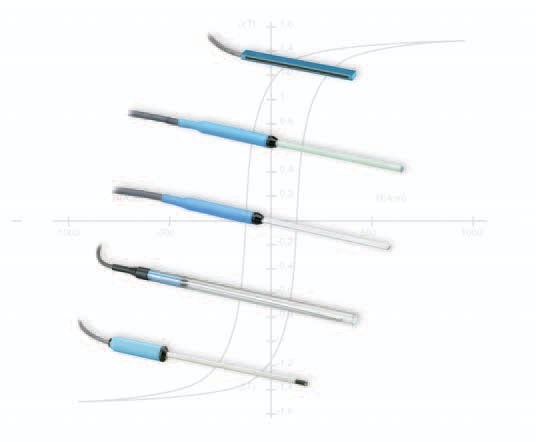

Hall probes overview Gaussmeter

Axial Probes

Model	L	D	A	Stem Material	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MMA-2502-VH	2 " ± 0.063"	0.25" ± 0.006''	0.010"	Aluminum	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MNA-1904-VH	4' ± 0.125"	0.187" ± 0.005''	0.005''	Fiberglass epoxy	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MMA-2502-VG	2" ± 0.063''	0.25" ± 0.006''	0.010"	Aluminum	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C
MNA-1904-VG	4' ± 0.125"	0.187" ± 0.005''	0.005"	Fiberglass epoxy	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Transverse Probes

Model	L	D	A	Stem Material	Frequency Range	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MMT-6J04-VH	4"± 0.125"	0.061" max	0.180"	Aluminum	DC	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MNT-4E04-VH		0.045" max	0.150''	Rigid glass epoxy	DC and 10 Hz to 400 Hz	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MMT-6J04-VG		0.061" max	0.180"	Aluminum	DC	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C
MNT-4E04-VG		0.045" max	0.180"	Rigid glass epoxy	DC and 10 Hz to 400 Hz	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Flexible Transverse Probes

Model	W	T	Active Area	Stem Material	Frequency Range	Corrected accuracy (%) of reading	Temperature coefficient (maximum) zero	Temperature coefficient (maximum) calibration
MFT-3E03-VH	0.135" max	0.025" max	0.040" dia (approx)	Flexible Tubing	DC and 10 Hz to 400 Hz	± 0.25 % to 30 kG	± 0.09 G/°C	- 0.04 %/°C
MFT-3E03-VG	0.135" max	0.025" max	0.040" dia (approx)	Flexible Tubing	DC and 10 Hz to 400 Hz	± 0.15 % to 30 kG	± 0.13 G/°C	- 0.005 %/°C

Alte produse BROCKHAUS

TESLAMETRU DIGITAL DE LABORATOR CITIRE CU EFECT HALL BROCKHAUS GM-425

• Single-channel Gaussmeter with a resolution of 4 � digits
• measuring accuracy of ± 0.20 % of the measured value
• readings on a 2-line LCD display with background light
• Measuring range: 350 mG, 3.5 G, 35 G, 350 G, 3.5 kG, 35 kG, 350 kG
• Measuring frequency: DC, AC up to 10 kHz
• USB Interface

BOBINA HELMOLTZ MASURA MOMENT MAGNETIC BROCKHAUS HC01/HC02

• Helmholtz Coil HC01 150 mm
• Helmholtz Coil HC02 210 mm
• Measuring coil to determine magnetic moment
• Coil constant K= 0,0154cm
• Resitance 35 Ohm

HISTOGRAF MASURA DIAGRAMA HISTEREZIS MATERIALE MAGNETICE, REMANENTA, ENERGIE, CAMP, POLARIZARE MAGNETICA BROCKHAUS HG200

• Remanence
• Coercive field strength
• Maximum energy product
• Maximum field strength
• Maximum polarization
• Hysteresis display
• Measurement of all hard magnetic materials(AlNiCo, ferrite, SmCo, NdFeB, plastic composite)
• Measurement with constant flux alteration dF/dt

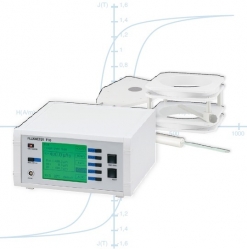

FLUXMETRU CAMP MAGNETIC MASURA PARAMETRI MAGNETICI DE CALITATE A MATERIALELOR BROCKHAUS F10
