Histograf testare parametri materiale magnetice, permeabilitate, energie Brockhaus HG200 AC/DC

Cod: Brockhaus HG200 AC/DC



Brosura produs PDF, 0.11 Mb


Descriere

Measuring categories

  • Remanence
  • Coercive field strength
  • Maximum energy product
  • Specific hysteresis loss
  • Maximum field strength
  • Maximum polarization
  • Effective field strength
  • Permeability
  • Specific apparent output
  • Hysteresis display
  • Form factor
  • Measurement of all magnetic materials (hard magnetic AlNiCo, ferrite, SmCo, NdFeB, plastic composite; soft magnetic: electrical steel, ferrite …etc.)
  • Measurement with constant flux alteration d/dt or sinusoidal polarization
  • Measurement with J-compensated surrounding coils, pole or field coils or strip measuring coil, ring core sensor, punched part sensor, Epstein frame, sheet measuring coil
  • Measurement at higher temperatures up to 200°C
  • Fully computer-controlled measuring system
  • Real time display of hysteresis during the measuring process
  • MAG Expert software for measurement, presentation and integration into QM systems
  • Windows desktop





Operating principles:


Determination of the characteristic properties of all magnetic materials.

Measuring process according to IEC 60404 ff. or to customer specifications.

Highly accurate measurements with very good reproducibility. Process-controlled monitoring and regulation of the increase in current.

When measuring hard magnetic materials the process runs with constant flux alteration d/dt and avoids interference caused by eddy currents and phase displacement between the field strength and polarization measurement.

With soft magnetic materials the measurement takes place with sinusoidal induction. Processing of the measured values with MAG/MPG Expert software for measurement, display and integration into QM systems.

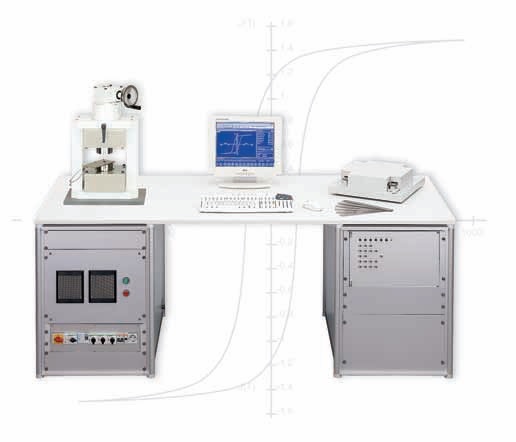

Consists of measuring table with power supply unit and measuring electronics, electromagnet, Epstein frame, measuring system and computer hardware with MAG/MPG Expert evaluation software.

For measuring permanent magnets: J-compensated coils with a thickness of 1mm and diameters of 10 - 40 mm, pole measuring coils with diameters of 3 - 9 mm, as well as special sizes and shapes.

For measuring soft magnetic materials: SST measuring sensors for the quality control of strips, sheets, slit strips in all manufacturing widths; no complex sample preparation required.

Punched part sensor for nondestructive testing of punched parts in all geometries, e.g. when testing punched parts for motors. Ring core testing module for testing the magnetic properties of ring cores, stators or transformers directly on the component under manufacturing conditions.



Technical Data:

AC/DC Hystograph HG 200 AC

Measuring fixture:

2 free of drift fluxmeters F 01

Measuring coils:

surrounding coils, pole coils, field coils

Power supply:

0 to ± 125 V, 0 to ± 25 A (50 A optional)

Electromagnet:

interchangeable with a maximum diameter of 92 mm

Measuring poles:

< ± 1 µVs/minute

Computer:

PC, monitor, printer

Software:

MAG/MPG Expert under Windows

Cabinet:

measuring table with container

Dimensions:

760 x 1760 x 800 mm (height X width X depth)

Mains supply:

3 x 200 - 3 x 400 V AC, 16 A 50 / 60 Hz





Optiuni recomandate

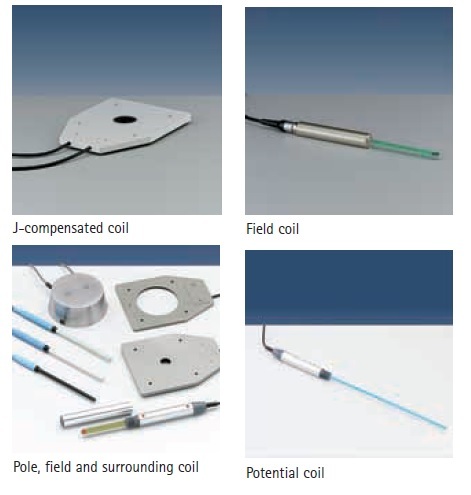

Usable Coils for hard magnetic materials:

Electromagnet







J-compen- sated Coil





Pole Coil



Field Coil



More coils:



Punched Parts Sensor





Ring Coil

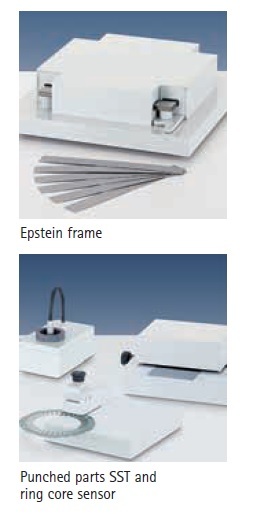

Epstein Frame





Inline Measuring Coil
