Gaussmetru Teslametru portabil masura camp magnetic cu sonda Hall Brockhaus BGM-101

Cod: Brockhaus BGM-101



Brosura produs PDF, 0.31 Mb


Descriere

  • Hand-held device for determining magnetic field strength
  • High accuracy of 0,5 % and repeatability
  • Latest LiPo battery technology (USB charging)
  • Easy to operate with intuitive touch screen operation
  • Compact & ergonomic design
  • Multicolour touch TFT 320 x 240 px
  • 4 measuring ranges and Auto range
  • From DC to 10 kHz AC fields (TRUE RMS)
  • Automatic probe detection
  • Display in Gauss, Tesla, Oersted or A / m
  • Bargraph visualization
  • Fast Peak hold detection
  • Digital band filter for pulse measurement
  • Functions: Max / Min hold, Alarm,
  • Relative, Auto zero, Data storage,
  • Data transfer to PC via USB

Operating principle

The Gaussmeter enables a precise and user-friendly magnet field measurement by means of Hall sensors. The Operation of the Gaussmeter is via a multicolour touch display and individually programmable display settings.

The Gaussmeter is supplied with a LiPo battery pack which ensures long-term operation.

The battery pack can be charged either by USB or power adapter.

Data transfer is via USB interface thus enabling further data processing of the magnet field measurement on a PC.

Special attention has been given to extremely thin and flexible Hall probes which allowmagnetic field measurements even in the tightest of spaces.

Technical data: BGM 101

Measuring mode: measuring Hall voltage

Measuring range: 4 mT, 40 mT, 400 mT, 2 T, AUTO

Measuring frequency: DC to 10 kHz

Measuring accuracy: 0.5 % for DC and AC

Selection of measuring range: automatic or manual

Display: 320 x 240 px multicolour touch TFT

Probe type: transversal (BTP-101) axial (BAP-101)

Temperature range: 0°C - 50°C

Weight: 185g

Dimensions: L 120 mm x W 72 mm x H 25 mm

Power supply: LiPo battery 2500 mAh (power supply or USB)




Accesorii standard

GAU-005000 Gaussmeter package complete

1 x gauss-meter BGM 101

1 x zero field chamber BZC-101

1 x hard case (aluminium) for Gaussmeter BGM-101

1 x 220 V battery charger

1 x USB cable

1 x transversal- or axial hall probe

1 x manual ( PDF on CD ROM)



GAU-005001 Gaussmeter package basic

1 x gauss-meter BGM 101

1 x 220 V battery charger

1 x USB cable

1 x transversal- or axial hall probe

1 x manual ( PDF on CD ROM)



Optiuni recomandate

GAU-005002 Zero field chamber BZC-101

GAU-005004 Additional axial probe BAP-101

GAU-005005 Additional transversal probe BTP-101

GAU-005003 Aluminum hard case

GAU-005006 Probe extension cable (1 m) BPC-101


Hall probes overview Gaussmeter



Axial Probes

Model

L

D

A

Stem Material

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MMA-2502-VH

2 " ± 0.063"

0.25" ± 0.006''

0.010"

Aluminum

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MNA-1904-VH

4' ± 0.125"

0.187" ± 0.005''

0.005''

Fiberglass
epoxy

MMA-2502-VG

2" ± 0.063''

0.25" ± 0.006''

0.010"

Aluminum

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C

MNA-1904-VG

4' ± 0.125"

0.187" ± 0.005''

0.005"

Fiberglass
epoxy



Transverse Probes

Model

L

D

A

Stem Material

Frequency Range

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MMT-6J04-VH

4"± 0.125"

0.061" max

0.180"

Aluminum

DC

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MNT-4E04-VH

0.045" max

0.150''

Rigid glass epoxy

DC and 10 Hz to 400 Hz

MMT-6J04-VG

0.061" max

0.180"

Aluminum

DC

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C

MNT-4E04-VG

0.045" max

0.180"

Rigid glass epoxy

DC and 10 Hz to 400 Hz



Flexible Transverse Probes

Model

W

T

Active Area

Stem Material

Frequency Range

Corrected accuracy (%) of reading

Temperature coefficient (maximum) zero

Temperature coefficient (maximum) calibration

MFT-3E03-VH

0.135" max

0.025" max

0.040" dia (approx)

Flexible
Tubing

DC and 10 Hz to 400 Hz

± 0.25 % to 30 kG

± 0.09 G/°C

- 0.04 %/°C

MFT-3E03-VG

± 0.15 % to 30 kG

± 0.13 G/°C

- 0.005 %/°C





Alte produse BROCKHAUS

GAUSSMETRU TESLAMETRU PORTABIL MASURA CAMP MAGNETIC CU SONDA HALL BROCKHAUS BGM-101

• From DC to 10 kHz AC fields (TRUE RMS)
• Automatic probe detection
• Display in Gauss, Tesla, Oersted or A / m
• Bargraph visualization
• Hand-held device for determining magnetic field strength
• High accuracy of 0,5 % and repeatability
• Data transfer to PC via USB
• Multicolour touch TFT 320 x 240 px


BOBINA HELMOLTZ MASURA MOMENT MAGNETIC BROCKHAUS HC01/HC02

• Helmholtz Coil HC01 150 mm
• Helmholtz Coil HC02 210 mm
• Measuring coil to determine magnetic moment
• Coil constant K= 0,0154cm
• Resitance 35 Ohm


HISTOGRAF MASURA DIAGRAMA HISTEREZIS MATERIALE MAGNETICE, REMANENTA, ENERGIE, CAMP, POLARIZARE MAGNETICA BROCKHAUS HG200

• Remanence
• Coercive field strength
• Maximum energy product
• Maximum field strength
• Maximum polarization
• Hysteresis display
• Measurement of all hard magnetic materials(AlNiCo, ferrite, SmCo, NdFeB, plastic composite)
• Measurement with constant flux alteration dF/dt


TESLAMETRU DIGITAL DE PRECIZIE BROCKHAUS GM-475

• Precision laboratory Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• Measurement of magnetizing pulses up to 50 kHz
• User-friendly measuring instrument
• Single-channel Gaussmeter with a resolution of 5 3/4 digits
• measuring accuracy of ± 0,05 % of the measured value
• Measuring range: 35 mG, 350 mG, 3.5 G, 35 G, 350 G, 3.5 kG, 35 kG, 35 kG
• Measuring frequency: DC, 1 Hz - 50 kHz
• Measuring accuracy: ± 0,05 % of DC value, ± 1% of AC value, ± 0,005 % of DC measuring range

FLUXMETRU CAMP MAGNETIC MASURA PARAMETRI MAGNETICI DE CALITATE A MATERIALELOR BROCKHAUS F10

• Magnetic flux
• Magnetic flux density
• Magnetic field strength
• Magnetic moment
• Magnetic potential
• Polarization
• Analogue voltage integrator for measuring all quality-related magnetic parameters
• Integrated calibration device


TESLAMETRU DIGITAL DE LABORATOR CITIRE CU EFECT HALL BROCKHAUS GM-425

• Single-channel Gaussmeter with a resolution of 4 ¾ digits
• measuring accuracy of ± 0.20 % of the measured value
• readings on a 2-line LCD display with background light
• Measuring range: 350 mG, 3.5 G, 35 G, 350 G, 3.5 kG, 35 kG, 350 kG
• Measuring frequency: DC, AC up to 10 kHz
• USB Interface

GAUSSMETRU TESLAMETRU DE PRECIZIE BROCKHAUS BGM-201

• Digital precision Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• High accuracy of ± 0.05 %
• DC, AC to 30 kHz (True RMS)
• Multicolour touch TFT 800 x 480 px
• Relative, Auto Zero, Data storage,
• Data transfer to PC via USB

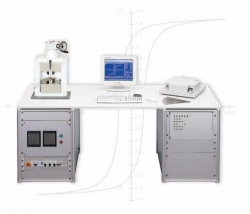

HISTOGRAF TESTARE PARAMETRI MATERIALE MAGNETICE, PERMEABILITATE, ENERGIE BROCKHAUS HG200 AC/DC
