Trusa incercari izolatie cabluri cu inalta tensiune Seba HPG 50..110-H

Cod: Seba-KMT HPG-50..110-H




Brosura produs PDF, 0.97 Mb

Descriere

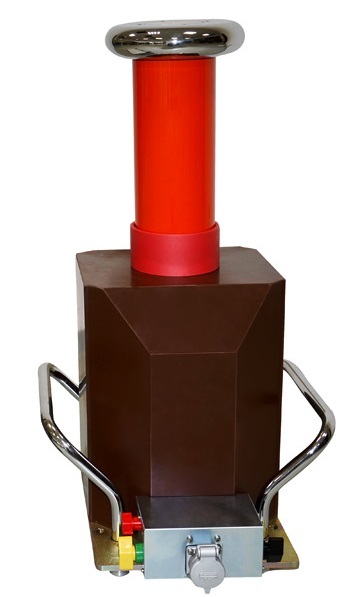

HPG 50...110-H

The High Voltage test sets HPG 50 till 110-H from SebaKMT are suitable for 50 Hz AC-testing (35 to 78 kVRMS) and DC-testing up to 110 kV. The HPG test systems consist of two separate units: the control unit and the high-voltage unit. This separation enables the operator to use the test set on-site without any complications.

Typical application areas:

  • Testing of cables
  • Testing of switchgear
  • Testing of current-transformers
  • Testing of MV plant/ component testing



All HPG test systems at a glance:

  • HPG 50-H, AC testing up to 35 kVRMS / DC-testing up to 50 kV
  • HPG 70 / 80-H, AC testing up to 50 / 58 kVRMS / DC-testing up to 70 / 80 kV
  • HPG 110-H, AC testing up to 78 kVRMS / DC-testing up to 110 kV



Key benefits:

  • Suitable for AC-testing and DC-testing
  • Compact, cast-resin high-voltage transformers
  • Separate control and HV-units
  • Voltage continuously adjustable
  • Powerful system: 1,2 kVA continuous operation, up to 3 kVA 60 min. short-time operation
