Trusa pentru incercat izolatie cabluri cu tensiune continua si alternativa Seba HPG 50..80-D

Cod: Seba-KMT HPG-50..80-D




Brosura produs PDF, 0.97 Mb

Descriere

HPG 50…80-D

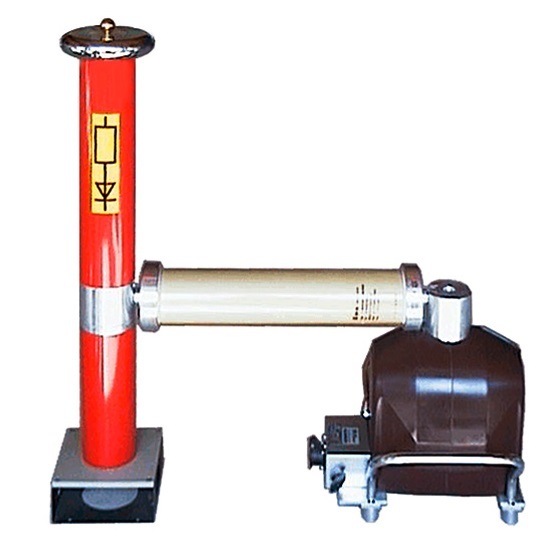

The high voltage test sets HPG 50 till 80-D from SebaKMT are suitable for 50 Hz AC testing (35 to 58 kVRMS) and DC testing up to 150 kV*. The DC voltage is generated via a voltage doubler. The HPG test systems consist of two separate units: the control unit and the high-voltage unit. This separation enables the operator to use the test set on-site without any complications.

Typical application areas:

  • Testing of cables
  • Testing of switchgear
  • Testing of current-transformers
  • Testing of MV plant/ component testing



All HPG test systems at a glance:

  • HPG 50-D, AC testing up to 35 kVRMS/ DC testing up to 100 kV
  • HPG 70 / 80-D, AC testing up to 50 / 58 kVRMS / DC testing up to 140 / 150 kV



Key benefits:

  • Suitable for AC testing and DC testing
  • Compact, cast-resin high-voltage transformers
  • Separate control and HV-units
  • Voltage continuously adjustable
  • Powerful system: 1,2 kVA continuous operation, up to 3 kVA 60 min. short-time operation

* For test-van integration the voltage is limited to 130 kV DC
