Sistem incercare cabluri medie tensiune Seba VFL Sinus 45kV

Cod: Seba-KMT VLF Sinus-45kV




Brosura produs PDF, 0.17 Mb

Descriere

VLF Sinus 45 kV

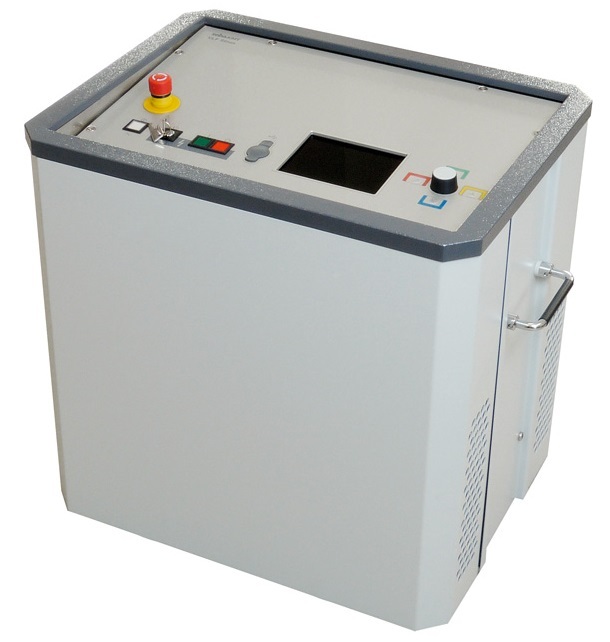

The VLF sine wave 45 kV with integrated tanDelta is a compact, robust, and portable high-performance test and diagnostic system for medium voltage cables.

The 45 kV tester is a multifunctional tool: apart from VLF and DC testing, it also performs sheath testing and sheath fault pinpointing (in combination with the step voltage probe ESG NT). Moreover, the optional internal tanDelta expands the system to assess both cable integrity and condition.

The smart VLF system automatically adjusts the test frequency to the cable length, making even tests on 25 kV rated cables (up to 25 km) easy and reliable.



Special features:

  • Performs cable withstand testing, cable diagnosis, and sheath fault pinpointing
  • Automatically adjusts the test frequency to the cable length
  • Eliminates hazards to the user and guarantees limited damage to the cable
  • Easy field operation with no need for external computer





Features

»» High test capacity of up to 10 µF

»» Continuous duty cycle

(testing without operational interruptions)

»» AC/DC testing in compliance with DIN VDE, EN,

IEEE

»» Intuitive user software with large internal memory

»» Leakage current measurement in DC and VLF

rectangular mode

»» Optional internal tanDelta with automatic

evaluation acc. to IEEE

»» Maximum user safety through automatic

discharge of the test object and earth loop

ground monitoring

»» Breakdown detection and load recognition (R, C)

»» Quick, easy logging and updates via USB port

»» Sheath testing and sheath fault pinpointing acc.

to IEC 60229





Accesorii standard

Scope of delivery

»» VLF Sinus 45 kV

»» HV connection cable 5 m

»» Mains cable/grounding cable 3 m

»» Accessory bag

»» USB stick for logging

»» Operating manual



Optiuni recomandate

Options

»» Internal tanDelta

»» ESG NT (step voltage probe)

»» External safety device

»» Diagnostic connection set
