Trusa incercare cu tensiune inalta cabluri Seba HV Test Set 50kV 80kV 110kV DC

Cod: Seba-KMT HV-Test-Set 50kV 80kV 110kV



Brosura produs PDF, 0.15 Mb


Descriere

HV Test Set 50/80/110

The HV Test Set is a cable tester for DC voltage testing of cables and cable installations in accordance with the international standards. It consists of an operation unit and HV unit. Due to its small size and low weight the test sets can easily be transported and used on-site. The HV Test Set is available in three versions (50/80/110 kV DC).

Key benefits:

  • Highest safety by monitoring functions and easy operation
  • Quick and easy mounting with compact and simple setup
  • Meeting individual needs by modular design





Portable HV test set for DC voltage

testing of cables and cable installations



Benefits

Safety by monitoring functions and easiest operation

Quick and easy mounting with compact and simple setup

Meeting individual needs by modular design



Description

The HV Test Set is a cable tester for DC voltage testing of

cables and cable installations in accordance with VDE standards.

The Set consists of an operation unit and an HV Unit

and is available in three versions (50/80/110 kV). Compact

and light-weight it is easily transported to be used on site.



Technical Features

Easy operation

Low weight and compact design

Integrated discharge device

Earthing safety circuit

Overcurrent tripping

Guaranteed quality in accordance with DIN EN ISO 9001

Ecologically safe insulant

The HV Test Set 50/80/110 kV is used for

Testing of newly installed cables and splices before they are taken into service

Periodical cable testing

Testing electrical installations

Preventive checks after repairs and work on telecommunication

cables and other installations


Accesorii standard

Scope of Delivery

HV Test Set 50/08/100 kV in leather case

HV unit with HV attachment

Connecting lead, operation unit to HV unit

High Voltage lead, 2 m

Earthing lead, 3 m HV unit to station earth

Earthing lead, 3 m, operation unit to station earth

Earthing and discharge rod with ground cable and case

Operation manual

Service pack

Environmental protection

To protect the environment we use a new type of biodegradable, non-toxic insulating oil.



Optiuni recomandate





Alte produse SEBAKMT

SISTEM CU INCERCARE LA INALTA TENSIUNE C.A. SEBA T22/1

• ÃŽncercare continua cu tensiune CA de pâna la 75 kV la 1 kVA
• Set compus din unitati functionale:
• T 22/124 unitatea de comanda
• T 22/12 transformatorul izolat cu SF6
• Protectie integrata la suprasarcina
• ÃŽncercarea cu CC cu dioda optionala


SISTEM MONITORIZARE, DETECTIE SI LOCALIZARE AUTOMATA RETELE DE APA PIERDERI SCURGERI SEBA SEBALOG N-3

• Date actualizate zilnic
• Nu necesita patrulari, economisind timp
• Transferul fisierelor audio
• Date disponibile on-line în orice moment
• Transfer de date sigur
• Praguri de alarma reglabile
• Configurarea retelei fara erori de transmisie


SISTEM LOCALIZARE EXACTA DESCARCARI PARTIALE DEFECTE CABLURI MEDIE TENSIUNE SEBA PD LOC

• Localizarea exacta a descarcarilor partiale în retele cu cabluri mixte
• Localizarea defectelor în mansoanele cablurilor monofilare
• Operare usoara în teren


TRUSA INCERCARE SI ARDERE DE PUTERE CABLURI MEDIE SI JOASA TENSIUNE PENTRU DEPISTARE DEFECTE SEBA BPS 5000-D

• Operare simpla „Easy Go" cu un singur buton
• Memorarea tuturor datelor masuratorilor
• Transfer de date prin Bluetooth
• Ardere CC cu un curent de 6 A
• Ardere CA cu un curent de 110 A
• Mod localizare defecte de manta


SISTEM LOCALIZARE DESCARCARI PARTIALE SI DEFECTE IZOLATIE CABLURI SEBA OWTS M28

• Masurarea PD cu ajutorul DAC similar cu frecventa nominala a retelei
• Procesare online - diagnoza complexa a PD
• Sistem de test portabil, conceptie compacta si usoara
• Masurare integrata a tan d
• Diagnoza PD cu ajutorul tensiunii atenuate CA (DAC)
•  Masurarea nivelului PD conform IEC 60270
•  Calibrare automata cu functie de localizare a mansoanelor
•  PC cu WIN XP si WLAN pentru controlul sistemului


SISTEM LOCALIZARE ACUSTICA SI MAGNETICA EXACTA DEFECTE CABLURI SUBTERANE INGROPATE IN PAMANT SEBA DIGIPHONE+ NT SET

• Perfect acoustic quality and noise immunity
• Automatic filtration of interfering signals
• Automatic zero calibration, no adjustments necessary
• History mode
• Acoustic and step voltage fault location in one device
• BNR technology for perfect acoustic quality and noise immunity
• Automatic filtration of interfering signals
• Automatic setting of all parameters, no adjustments necessary


SISTEM PENTRU DIAGNOZA CABLURILOR PENTRU MASURATORI TRIFAZICE IRC SI RVM SEBA CDS

• Analiza trifazata IRC si RVM într-un echipament portabil
• Diagnoza complet nedistructiva
• Analiza curentului de încarcare pt. detectarea punctelor locale slabe
• Meniuri pentru o ghidare usoara prin procesul de masura

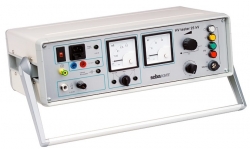

TRUSA INCERCARE CU TENSIUNE MARITA C.C. SEBA HV TESTER 25KV
