Set identificare cabluri de energie Seba CI LCI

Cod: Seba-KMT CI LCI

Brosura produs

PDF, 0.7 Mb

Descriere

Cable Identifier

The unmistakable identification of a cable prior to cutting or mounting is an absolute safety related task. A wrong selection can result in fatal consequences for the operator and caused the loss of supply for the connected customers. For the easy, reliable and safe selection of cables, SebaKMT developed the CI cable selection system.

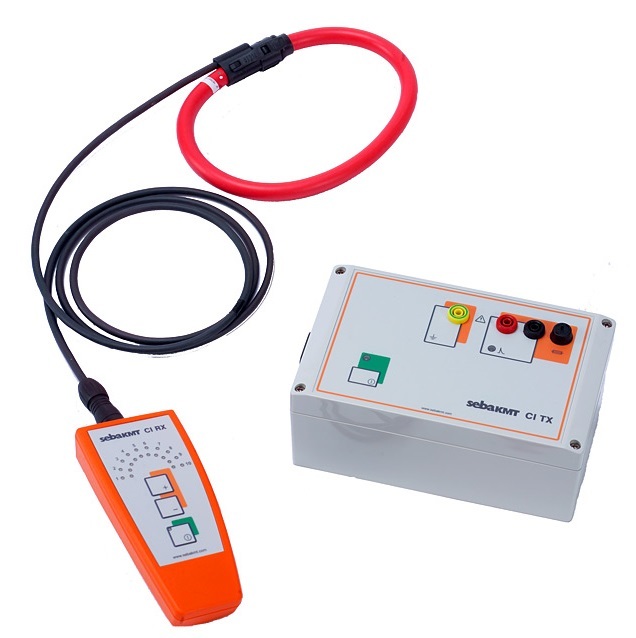

The CI TX Transmitter generates impulses of up to 100 A. Due to the limitation of impulse voltage to 55 V, the voltage is below the dangerous contact voltage limit, as specified by the German VDE 0100.

The CI RX receiver uses a flex clamp to measure the selection signals. The processor of the CI RX does an evaluation if the impulse shape, polarity, amplitude and frequency and generates an absolute reliable statement.

Key benefits:

Easiest operation
Safe selection
Small, light and handy

Inexpensive cable selection system

Easy to operate

Safe handling

Very small

Accesorii standard

Basic CI set for identification on de-energised cables

»» Transmitter CI TX

»» Receiver CI RX with

230 mm flex clamp

»» Supplied with all

necessary connection

cables, mains leads,

clips and clamps

»» Case

Basic LCI set for identification on energised cables

»» Transmitter LCI TX

»» Receiver CI RX with

230 mm flex clamp

»» Supplied with all

necessary connection

cables, mains leads,

clips and clamps

»» Case

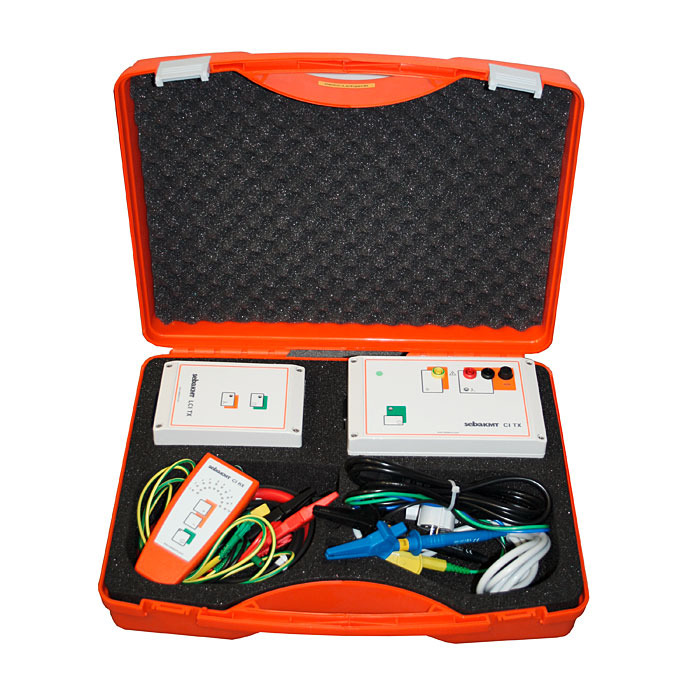

Complete CI and LCI Set

»» Transmitter CI TX & LCI TX

»» Receiver CI RX with

230 mm flex clamp

»» Supplied with all

necessary connection

cables, mains leads,

clips and clamps

»» Case

Optiuni recomandate

Optional accessories

»» 120 mm Flex-Coupler

»» Contact sensor PAS CI

»» Twisted field sensor TFS CI

»» NH test adapter

»» ISO 9001: 2008

»» LCI TX 440 for selection between phases
