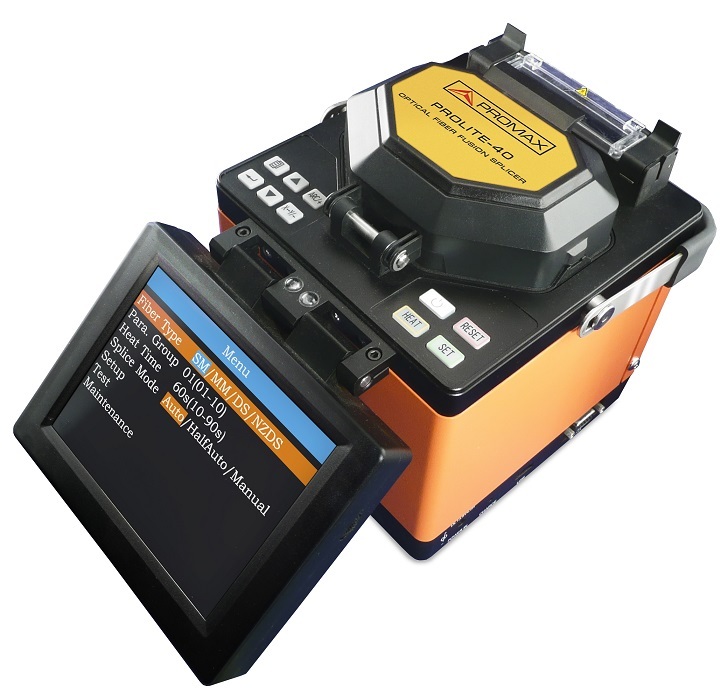

Aparat sudura fibra optica PROMAX PROLITE-40B

Cod: PROMAX PROLITE-40B



Brosura produs PDF, 0.15 Mb

Descriere

  • Automatic fusion splicing on 3 axis (X,Y, Z)
  • Maximum accuracy
  • Fibre aligning by means of core aligning method
  • Single or simultaneous axis view.
  • Fibre core can be display clearly.
  • 5.7" colour LCD display.
  • Temperature and atmospheric pressure indicators.
  • Auto check quality of cleaved end face.
  • Small bulk and light weight.
  • Inner light to set fibre at night.
  • Inner heater.
  • Simple operation menu.
  • 8 seconds splice time and 30 seconds heat time.
  • Adjustable parameters.
  • Storage of splice result: 5000 results (10 parameters).
  • Fusion data results exported to an external USB flash drive.
  • VGA interface to connect to a projector.



It includes cutter, stripper and hard carrying case for the complete

fusion set transport.



SPECIFICATIONS

PROLITE-40B

Applicable fibres

Monomode (ITU-T G.652), Multimode (ITU-T G.651), DS (ITU-T G.653), (ITU-T G.657), NZDS (ITU-T G.655)

Fibre cleaved length

10 ~ 16mm

Fibre diameter

Cladding diameter: 80 ~150 µm. Coating diameter: 100~ 1000 µm

Fibre Count

Single

Fibre aligning method

Core aligning

Return loss

> 60dB

Actual average splice loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS)

Splicing mode

Automatic, half-automatic and manual modes

Splicing program

10 (SM), 10 (MM), 10 (DS), 10 (NZDS)

Typical Splicing time

Typical 8 sec, with standard SM fibre

Protection sleeve length

60mm, 40mm and a series of micro sleeves

Storage of splice result

5000 results, 10 parameter per result

Tension test

2N

Fibre display and magnification

400X (X or Y view), 200X (X and Y view)

Heating time for protection sleeves

Typical 30 sec

Electrode life

4000

No.of splice/heating with battery

Typical 220 cycles (splice/tube heat) with inner Li-battery

Display screen

5.7" and 640x480 pixel colour LCD display, with temperature and atmospheric pressure indicators.

Terminals

USB (fusion data results exported to an external USB flash drive) and VGA (for projector).

Power supply

AC 100-240V with AC adapter; inner Li-battery. 3:30 h charge time

Included accessories

Cutter, stripper, AC adapter, spare electrodes, fusion protection sleeves, alcohol dispenser bottle, tweezers, dust blowing pear, carrying case for the complete set

Dimensions

140 mm (L)  x 150mm (W) x160mm (H)

Weight

2.8 Kg including battery
