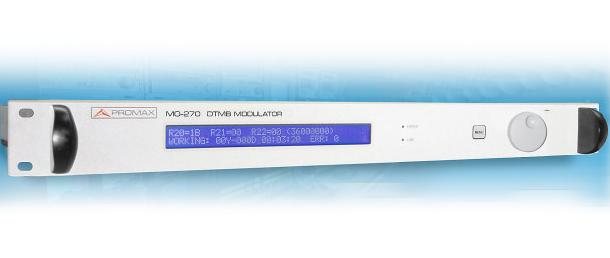

Modulator TDS-OFDM ASI/ SPI -> DTMB Promax MO-270

Cod: Promax MO-270




Brosura produs PDF, 0.12 Mb

Descriere

The MO-270 is a DTMB modulator compliant with China's national standard specification for digital terrestrial broadcasting GB20600-2006. The input to the modulator is an MPEG-2 Transport Stream (TS) in SPI or ASI formats. The output from the unit is a TDS-OFDM modulated DTMB signal upconverted to IF or RF.

The modulator has been designed to achieve the maximum performance yet at an affordable price.
The digital coding and modulation process is implemented with programmable logic devices using PROMAX proprietary IP. This makes the design highly flexible, allowing to tailor it to any particular application.





MPEG-2 TS INPUTS

2x ASI, 1xSPI
TS packets of legth 188 or 204 bytes

OUTPUTS
 IF OUTPUT
 RF OUTPUT


36 MHz, 50 ? BNC female connector
45-875 MHz, 50 &8486; BNC female connector

DTMB PARAMETERS
 MODULATION
 FEC
 CONSTELLATION
 TIME INTERLEAVING
 GUARD INTERVALS


TDS-OFDM, 1 or 3780 subcarriers
0.4, 0.6, 0.8
4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
240 or 720 symbols
1/4, 1/6, 1/9

TEST MODES

- Blank a number of carriers
- Generate a single carrier at the central frequency whose level equals the average TDS-OFDM output power.
- Test Transport Stream packet generation using PRBS sequences of length 15 or 23 bits



Optiuni recomandate



OPTIONS

OP-170-E

Noise generator to test C/N. SFN/MFN Mobile and Fix channels simulator

(Upgrabable in factory only)....

OP-170-H

DVB-H generator (Upgrabable in factory only)....

OP-1XX-P

+6 dBm output power..

OP-1XX-S

SNMP Control for MO-180, MO-162 and MO-163...







ACCESSORIES

EN-264

HDMI, HD-Sdi, YPbPr, RGB Encoder.

MX-008

8 ASI inputs, 2 outputs Re-multiplexer.

TD-500

4x1 two channel combiner..

TD-500-Q

4x1 four channel combiner..

TD-522

22 dBm DVB-T Combiner and Amplifier..
