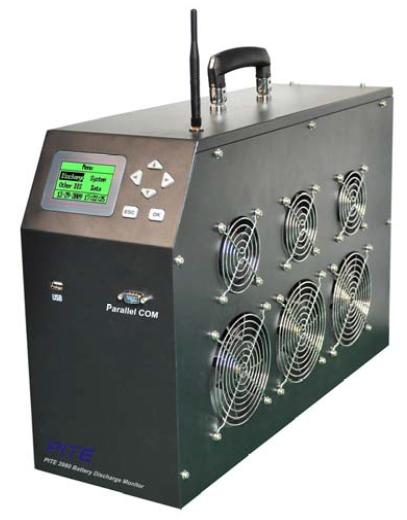

Tester capacitate incarcare/descarcare baterii cu comunicatie WiFi Wireless Pite 3980

Cod: Pite 3980




Brosura produs PDF, 0.29 Mb


Descriere

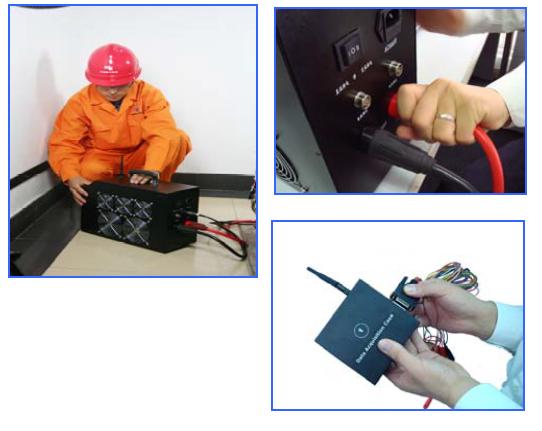

  • Small weight, portable unit with carrying case, convenient for onsite test

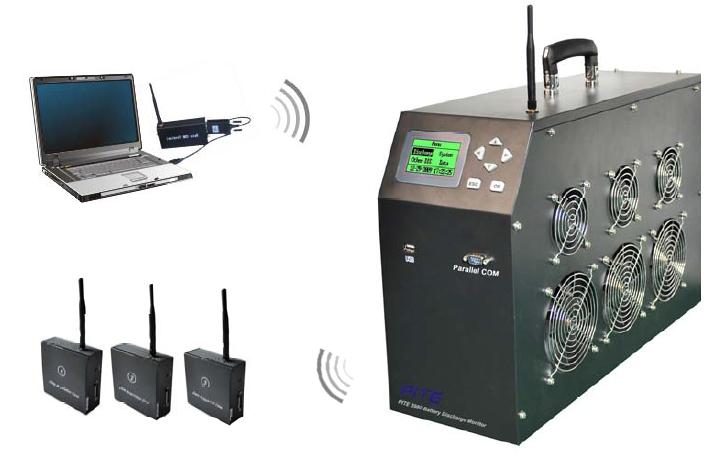

  • Optional wireless DAC enables its PC monitoring both for discharging and charging
  • It sets 4 conditions for auto shut-down of discharge, secured and time-saving
  • Continued discharge available when previous discharge is stop abnormally
  • Parallel connection of two units for mass discharge
  • Real-time display of voltage for each cell with DAC
  • Accurate data results and vivid waveforms
  • Auto sorting for lag-out batteries during discharging
  • AC & DC power supply modes for different needs
  • Integrated functions for displaying, controlling and discharging
  • Safe circuits avoids damage to battery when testing
  • Direct USB drive for convenient data transfer to PC

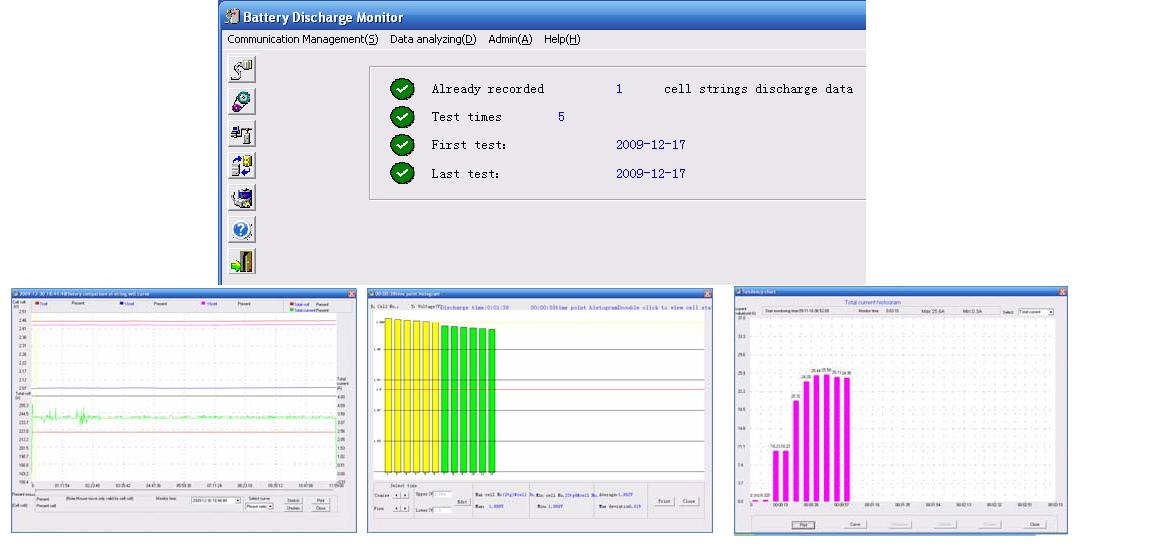

  • Powerful management software for data analyzing and report printing
  • Warning info, dynamic discharge and static discharge data auto-saving
  • Various models to meet almost all your application in either telecom or power utility


Optiuni recomandate

Model
Discharge Range
Code
NOTE
24V/48V 200A
Current: 0-200A
Voltage: 10V-55.2V
LB-2482
With DAC
LB-2482-1
W/O DAC
48V/110V 100A
Current: 0-100A
Voltage:10V-55.2V(nom:48V)
10V-126.5V (nom:110V)
LB-4811
With DAC


LB-4811-1
W/O DAC


48V/220V 100A
Current: 0-100A
Voltage: 10V-55.2V(nom:48V)
10V-253V (nom:220V)
LB-4821
With DAC


LB-4821-1
W/O DAC


110V/220V 100A
Current: 0-100A
Voltage: 10V-126.5V (nom:110V)
10V-253V (nom:220V)
LB-1121
With DAC


LB-1121-1
W/O DAC


380V 50A
Current: 0-50A
Voltage: 10V-437V
LB-3850
With DAC
LB-3850-1
W/O DAC
48V 300A
Current: 0-300A
Voltage: 10V-55.2V
LB-4830
With DAC
LB-4830-1
W/O DAC
110V 100A
Current: 0-100A
Voltage: 10V-126.5V
LB-1110
With DAC
LB-1110-1
W/O DAC
110V 200A
Current: 0-200A
Voltage: 10V-126.5V
LB-1120
With DAC
LB-1120-1
W/O DAC



Note:

  • All above models come with necessary parts and software.
  • Amount of DAC depends on different models.
  • Far more customized models will be available upon request.
  • All above standard units are designed to test 2V, 6V and 12V batteries. Measurement for 1.2V cells is optional.
  • This is just general information of PITE 3980 series battery load bank, for detailed models, please refer to their
  • catalog respectively.





Alte produse PITE

TESTER MONITORIZARE GAZ DIZOLVAT IN ULEI TRANSFORMATOR PITE KGX1

• Continuous, on-line intelligent dissolved gas and moisture monitor
• enhanced oil recirculation
• Hydrogen H2
• Selective Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Ethylene C2H4
• Moisture in Oil(RH%)



ECHIPAMENT MONITORIZARE GAZE DIZOLVATE SI UMIDITATE ULEI TRANSFORMATOR PITE KGX3

• on-line incipient fault detection for oil-filled HV electrical equipments
• on-line dissolved gas monitor is capable of continuous monitoring of dissolved H2, C2H2, CO and moisture in oil individually and in real-time
• Hydrogen H2
• Carbon Monoxide CO
• Acetylene C2H2
• Moisture in Oil(RH%)

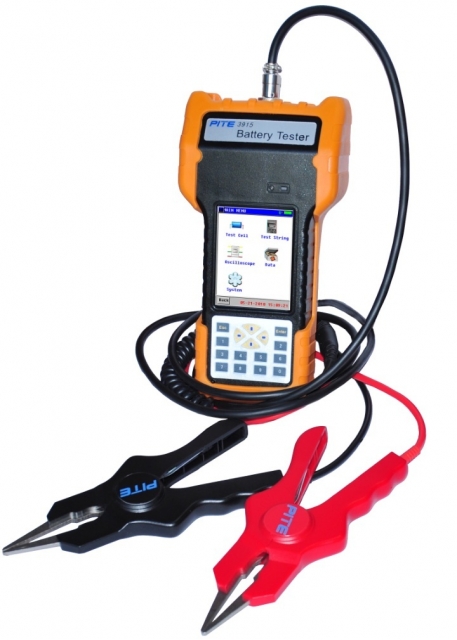

TESTER PORTABIL REZISTENTA INTERNA BATERII UPS-URI 1.2V..12V PITE 3915
