Brand: Pite

Analizor trifazat portabil calitate energie electrica Pite 3561

Cod: Pite 3561



Brosura produs PDF, 1.09 Mb


Descriere

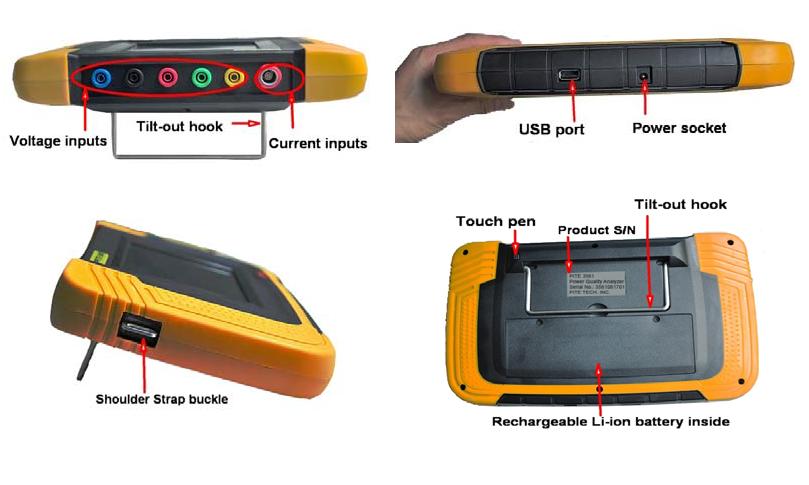

  • LCD: 5.7" 320 x 240 TFT touch screen
  • Input Impedance: >2MO, 20pF
  • Measurement Range: Vrms 10..700V
  • Arms: 5A, 10A, 100A, 1000A, 1500A and 3000A (with relative current clamps)
  • Frequency: 40Hz..70Hz
  • Harmonic Measurement: 1..50th harmonics
  • Inrush Current: 2000A
  • Peak Voltage: 1000V
  • Internal Memory: 16MB
  • External Memory: 256MB
  • Communication Port: USB
  • N.W.(main unit): 1.2 kg
  • Battery: durable for 5 hours after full charge

  • Portable design and colorful touch screen
  • High-performance Li-battery for long time power supply
  • Could test 3-phase volt, null line volt, 3-phase current, null line current, etc.
  • Up to 50 times harmonic testing with frequency spectrum graph
  • Power testing: 3-phase apparent power, active power, reactive power, power factor, and 3-phase electric power
  • 3-phase unbalance testing with vivid chart
  • Record at least 40 times of surge current
  • Testing for wave motion, short-time flicker and long-time flicker
  • Record up to 40 times of sag and swell
  • Could have long-time record for basic (stable) power quality parameter
  • Recording time interval adjustable between 3 second and 30 minutes

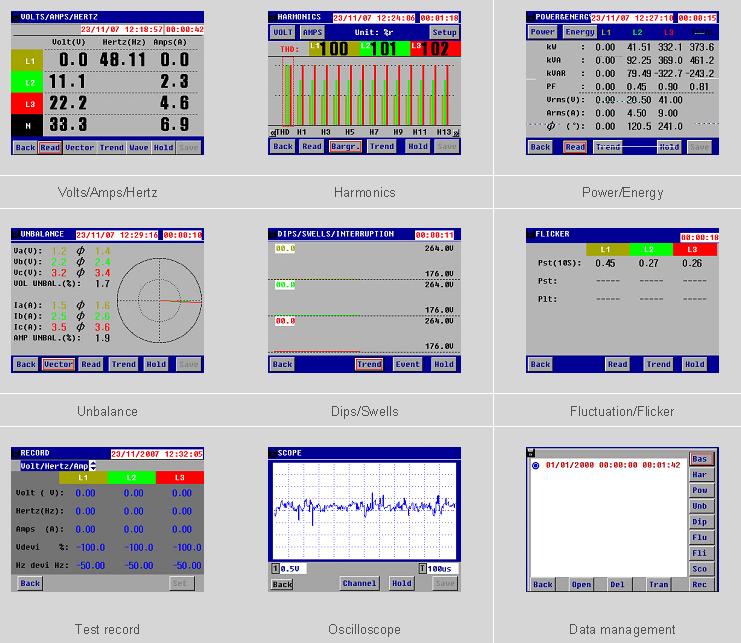

  • Digital oscilloscope, checking waveform for voltage and current signal
  • With PITE DataView software for convenient analyzing of testing result

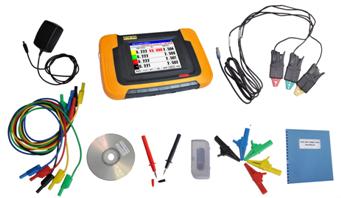

Accesorii standard

PITE 3561 includes standard accessories of

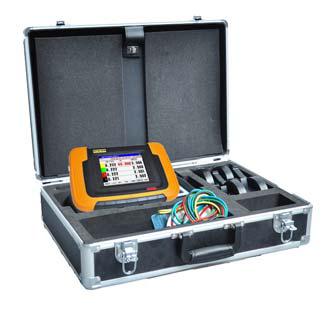

  • 1 carrying case
  • 4 color-coded current clamps (example of CC-5A shown above)
  • 1 user manual
  • 5 alligators
  • 1 USB drive
  • 2 voltage probes
  • 1 PITE dataview CD
  • 5 voltage testing leads
  • 1 power adaptor

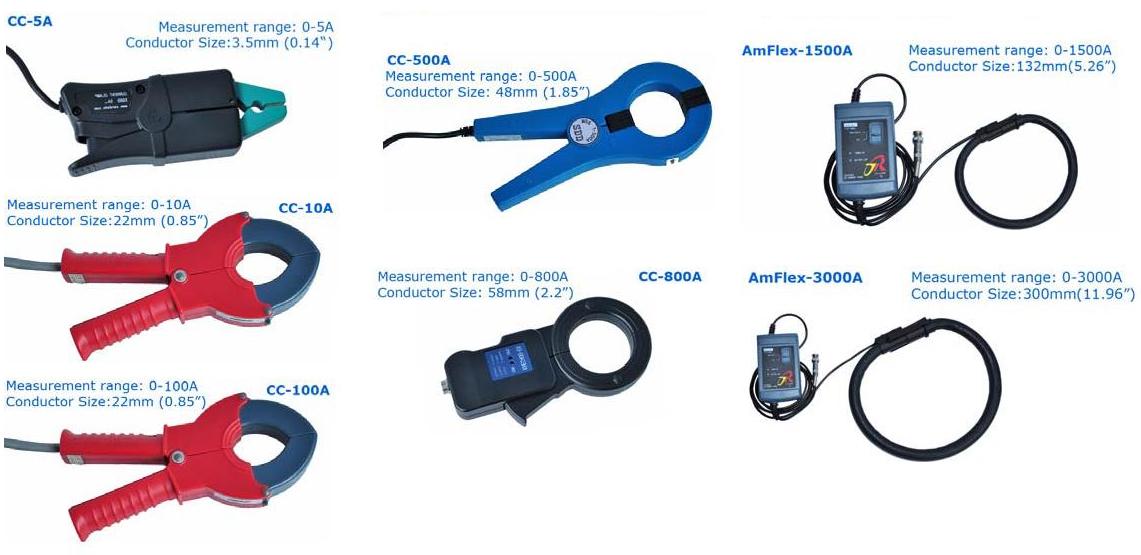

Optiuni recomandate

PITE 3561 Kits

PITE 3561 with set of 3 color-coded C-5A current clamp and testing leads

Con. #3561.5A

PITE 3561 with set of 3 color-coded CC-10A current clamp and testing leads

Con. #3561.10A

PITE 3561 with set of 3 color-coded CC-20A current clamp and testing leads

Con. #3561.20A

PITE 3561 with set of 3 color-coded CC-100A current clamp and testing leads

Con. #3561.100A

PITE 3561 with set of 3 color-coded CC-500A current clamp and testing leads

Con. #3561.500A

PITE 3561 with set of 3 color-coded CC-800A current clamp and testing leads

Con. #3561.800A

PITE 3561 with set of 3 color-coded CC-1000A current clamp and testing leads

Con. #3561.1000A

PITE 3561 with set of 3 color-coded AmFlex-1500A current clamp and testing leads

Con. #3561.1500A

PITE 3561 with set of 3 color-coded AmFlex-3000A current clamp and testing leads

Con. #3561.3000A
