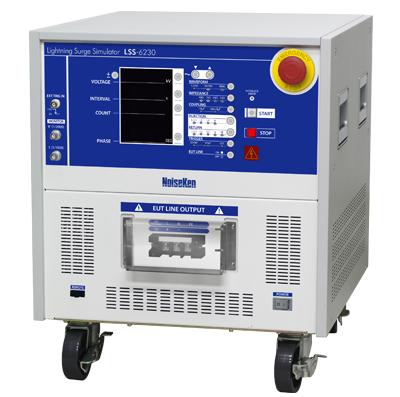

Lightning Surge Simulator conforming to IEC61000-4-5 ed2 Standard
Ring wave conforming to ANSI/IEEE C62.45 available
Max. voltage 6.6kV output focusing on the practical use
Monitor terminal standard equipped so as for easy waveform pre-checking
Interlock built-in as the emergency stop function for safety
Remote control software from PC ready as the option besides the stand-alone operation
AC/DC CDN standard equipped. Available up to 3-phase AC500V 50A as the option
CDN for Telecom lines, CDN for interconnection lines, isolation transformer, etc. ready as the option

Common SPECIFICATIONS

Parameter	Specifications
Polarity	Positive / Negative
Interval	(Minimum charging time) to 999 sec. 1 sec. step
No. of output setting	1 to 999 times 1 time step

Surge generating unit

1.2/50µs-8/20µs Combination waveforms	Voltage surge	Output voltage 0.5 to 6.0kV ±10%
		Front time 1.2µs±30%
		Duration 50µs±20%
	Current surge	Output current 250 to 3000A ±10%
		Front time 8µs±20%
		Duration 20µs±20%
	Minimum charge time	10 Sec.
	Output impedance	2O±10%
0.5µs-100kHz Ring wave	Voltage surge	Output voltage 0.5 to 6.0kV ±10%
		Rise time 0.5µs±0.15µs
		Frequency: 100kHz ±20kHz
	Current surge	2nd peak voltage 40-110% of 1st peak voltage
		3rd peak voltage 40-80% of 2nd peak voltage
		4th peak voltage 40-80% of 3rd peak voltage
	Minimum charge time	5 Sec.
	Output impedance	12 O±3 6 O at 12 O selection in interruptive resistance 30 O±8 O at 30 O selection in interruptive resistance
Coupling network	Line - Line : 18µF, Line - PE : 10O+9µF, Line - PE simultaneous coupling (L+N-PE) : 9µF/9µF
Decoupling coil	1.5mH
AC EUT power capacity	Single phase AC 240V 16A MAX (50/60Hz)
DC Eat power capacity	DC125V/16A MAX
Phase angle control	0 to 360°±10°, Based on set injection / return angle

Surge Generating Unit for External CDN

10/700µs-5/320µs Combination waveforms	Voltage surge	Output voltage 0.5 to 6.0kV ±10%
		Front time 10µs±30%
		Duration 700µs±20%
	Current surge	Output current 12.5 to 150A ±10%
		Front time 5µs±20%
		Duration 320µs±20%
	Minimum charge time	15 Sec.
	Output impedance	40O±10%

Others

Parameter	Specifications
Voltage monitor	BNC output, 1/1000±10%
Current monitor	BNC output, 1mV/A±10%
External communication	RS-232C optical communication
Power supply	AC100V to 120V±10%, AC200V to 240V±10%,50/60Hz, Power consumption: Less than 300VA
Dimensions	W430�H515�D500 mm (Projection excluded)
Mass	Approx. 65kg
