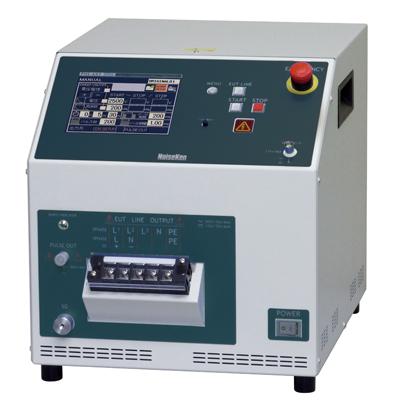

Simulator evenimente tranzitorii rapide declansate NoiseKen FNS-AX3

Cod: NoiseKen FNS-AX3




Brosura produs PDF, 0.54 Mb


Descriere

  • 4.8kV maximum peak voltage
  • 2MHz pulse repetition rate
  • Conforming to IEC/EN 61000-4-4 (Second Edition-2004)
  • Reverse polarity per burst
  • Automatic ramp operation
  • Manual, IEC level and sequence modes

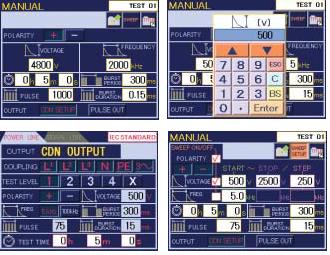

  • Touch panel color LCD
  • Easy to access control panel
  • Screen characters available in English, Chinese or Korean





SPECIFICATIONS


Parameters

FNS-AX3-A16B

FNS-AX3-B50B

Output voltage

200 to 4800V

Pulse parameters at 50 ohm

Pulse rise time 5ns ±30%,    Pulse width 50ns ±30% *1

Pulse parameters at 1k ohm

Pulse rise time 5ns ±30%,    Pulse width 35 ns to 150 ns  *1

Polarity

Positive, negative, polarity change burst by burst

Pulse frequency

0.1kHz to 2MHz  *1

Burst duration

1 to 1000 pulses or continuous  1 pulse per 1ms burst period

Burst period

10 to 1000 ms ±10%, 10ms step

Continuous mode operation

10 KHz max (0.2 to 1kV)

Dynamic output  impedance

50 ohms

Output connector

Coaxial (PULSE OUT)

Coupling/DC blocking capacitor

33nF/10nF

Frequency modulation

0 to -10% of setting

Timer (test duration)

1s to 9h 59m 59s
10 minutes max in the "continuous" and alternate polarity modes

External trigger

 TL down edge

Minimum trigger interval acceptable: 10ms



Burst timing

Non-synchronization

Irrelevant to EUT mains frequency

Synchronization

Synchronizes with the EUT mains frequency

0 to 360 degrees ±10 degrees, 1 degree step
Burst period: 50/60Hz



Internal CDN

85 to 240VAC 16A 50/60Hz
3-wire single-phase
125V DC/16A

85 to 500VAC 50A 50/60Hz
5-wire three-phase
125V DC/50A

Coupling line

L, N, PE

 L1, L2, L3, N, PE

Coupling mode

Common mode

Dimensions (projection included)

(W) 320 x (D)352 x (H)400 mm

Character display

English, Chinese, Korean or Japanese

Weight

Approx. 14 kg

 Approx. 19 k



 *1 Pulse specifications guaranteed over 5KHz to 100KHz
